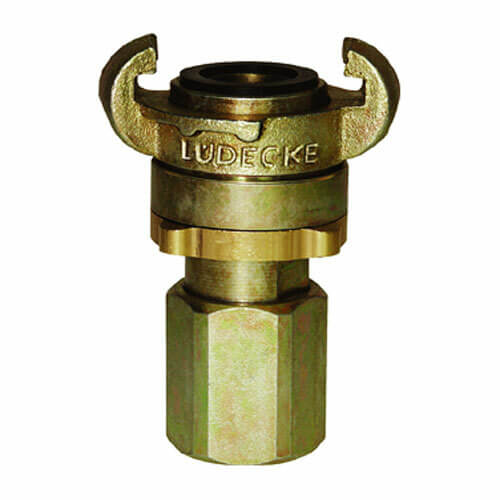

SSGI bayonet couplings with female thread

very high-quality safety couplings, body made of malleable cast iron, steel hose barb with special-contour grooves, galvanised and yellow chromated, with a safety double lug
reinforced thread protection ring and a seal guided into the sealing seat from both sides
supplied with an oil-resistant seal, on request with a steam-resistant seal (up to +200 °C)
100% tightness cuts the cost of compressed-air generation
easy to connect and secured against accidental opening: once connected, the coupling still has to be locked by tightening
designed for absolutely safe connections in industry and construction

SSGI bayonet couplings with female thread
Order number	Thread mm	DN	b mm	h mm	SW (spanner)	Weight g
SSGI38	G 3/8"	13	63	68	24	347
SSGI12	G 1/2"	17	63	70	24	329
SSGI34	G 3/4"	17	63	93	32	419
SSGI10	G 1"	17	63	95	41	516
SSGI34NPT	NPT 3/4"	17	63	93	32	388
SSGI10NPT	NPT 1"	17	63	97	41	473

€64,14 –5 %

NPT 1" SSG Female Threaded Bayonet Coupling

Code: SSGI10NPT

Was: €64,14 (–5 %)

€60,93

(€50,36 excl. VAT)

€59,33 –5 %

Bayonet coupling with female NPT 3/4" SSG

Code: SSGI34NPT

Was: €59,33 (–5 %)

€56,36

(€46,58 excl. VAT)

€42,08 –5 %

Bayonet coupling with internal thread G 1" SSG

()

Code: SSGI10

Was: €42,08 (–5 %)

€39,97

(€33,03 excl. VAT)

€39,67 –4 %

Bayonet coupling with internal thread G 3/4" SSG

Code: SSGI34

Was: €39,67 (–4 %)

€37,69

(€31,15 excl. VAT)

€34,15 –5 %

Bayonet coupling with internal thread G 1/2" SSG

Code: SSGI12

Was: €34,15 (–5 %)

€32,44

(€26,81 excl. VAT)

€34,15 –5 %

Bayonet coupling with internal thread G 3/8" SSG

Code: SSGI38

Was: €34,15 (–5 %)

€32,44

(€26,81 excl. VAT)

6 items total

€42,08 –5 %

Bayonet coupling with internal thread G 1" SSG

()

€33,03 excl. VAT

€39,97 / pcs

€199,85 / 5 pcs

High-quality bayonet coupling with internal thread G 1" according to DIN 3238 for stable compressed air connection system.For a simple and fast connection. Maximum pressure 16...

Code: SSGI10

€34,15 –5 %

Bayonet coupling with internal thread G 3/8" SSG

€26,81 excl. VAT

€32,44 / pcs

€162,20 / 5 pcs

High-quality bayonet coupling with internal thread G 3/8" according to DIN 3238 for stable compressed air connection system.For a simple and fast connection. Maximum pressure 16...

Code: SSGI38

€34,15 –5 %

Bayonet coupling with internal thread G 1/2" SSG

€26,81 excl. VAT

€32,44 / pcs

€162,20 / 5 pcs

High-quality bayonet coupling with internal thread G 1/2" according to DIN 3238 for stable compressed air connection system.For a simple and fast connection. Maximum pressure 16...

Code: SSGI12

€39,67 –4 %

Bayonet coupling with internal thread G 3/4" SSG

€31,15 excl. VAT

€37,69 / pcs

€188,45 / 5 pcs

High-quality bayonet coupling with G 3/4" female thread according to DIN 3238 for a stable compressed air connection system.For a simple and fast connection. Maximum pressure 16...

Code: SSGI34

€59,33 –5 %

Bayonet coupling with female NPT 3/4" SSG

€46,58 excl. VAT

€56,36 / pcs

€281,80 / 5 pcs

High-quality bayonet coupling with NPT 3/4" female thread according to DIN 3238 for a stable compressed air connection system.For a simple and fast connection. Maximum pressure...

Code: SSGI34NPT

€64,14 –5 %

NPT 1" SSG Female Threaded Bayonet Coupling

€50,36 excl. VAT

€60,93 / pcs

€304,65 / 5 pcs

High-quality bayonet coupling with NPT 1" female thread according to DIN 3238 for a stable compressed air connection system.For a simple and fast connection. Maximum pressure 16...

Code: SSGI10NPT

6 items total
