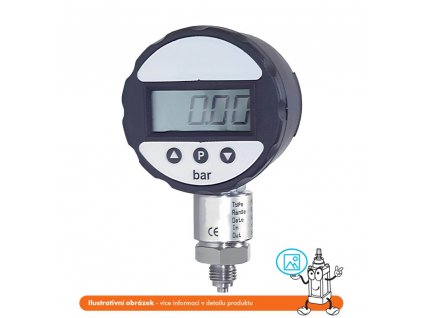

MDG Digital Pressure Gauges

digital display pressure gauges for accurate pressure measurement in industrial applications with 0.5% accuracy
pressure gauge body made of plastic, stainless steel connection parts 1.4571, ceramic sensor
temperature range: ambient temperature 0 °C to +60 °C, medium temperature -30 °C to +85 °C
powered by a 9 V battery with a standard life of 5,000 h, 10,000 h for lithium battery
5 pressure measurements per second
four-digit LCD display with 12.7 mm digits and automatic shutdown after 8 minutes

MDG digital pressure gauges in lateral design for measuring the pressure of the medium
Ordering number	Diameter indicators mm	Pressure range bar	Connection	Thread "	Class accuracy %	Operational temperature °C
MDG-1V	74	-1 to 0	lower	1/4"	0,5 %	-30/+85
MDG-1	74	0 to 1	lower	1/4"	0,5 %	-30/+85
MDG-2.5	74	0 to 2.5	lower	1/4"	0,5 %	-30/+85
MDG-4	74	0 to 4	lower	1/4"	0,5 %	-30/+85
MDG-6	74	0 to 6	lower	1/4"	0,5 %	-30/+85
MDG-10	74	0 to 10	lower	1/4"	0,5 %	-30/+85
MDG-16	74	0 to 16	lower	1/4"	0,5 %	-30/+85
MDG-25	74	0 to 25	lower	1/4"	0,5 %	-30/+85
MDG-40	74	0 to 40	lower	1/4"	0,5 %	-30/+85
MDG-60	74	0 to 60	lower	1/4"	0,5 %	-30/+85
MDG-100	74	0 to 100	lower	1/4"	0,5 %	-30/+85
MDG-160	74	0 to 160	lower	1/4"	0,5 %	-30/+85
MDG-250	74	0 to 250	lower	1/4"	0,5 %	-30/+85
MDG-400	74	0 to 400	lower	1/4"	0,5 %	-30/+85
MDG-600	74	0 to 600	lower	1/4"	0,5 %	-30/+85
MDG-1000	74	0 to 1000	lower	1/2"	0,5 %	-30/+85
MDG-1600	74	0 to 1,600	lower	1/2"	0,5 %	-30/+85
MDG-2000	74	0 to 2000	lower	1/2"	0,5 %	-30/+85
