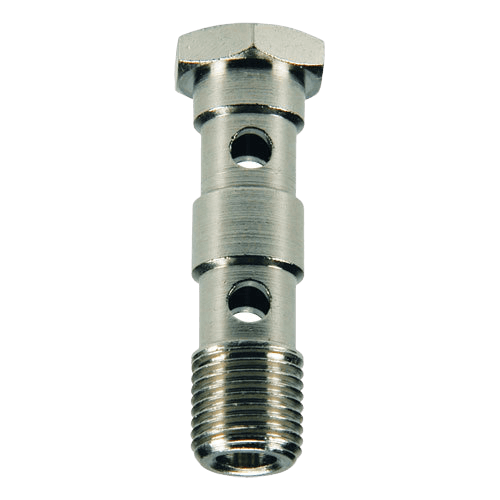

Double hollow bolts for sleeves with overrunning nut
 |
|
Double hollow bolts for sockets with overmolded nut |
|||||
| Ordering number |
Thread " |
Thread length mm |
Socket height mm |
Height mm |
Hexagon SW |
| 51420-18 | 1/8" | 6 | 15 | 44,5 | 14 |
| 51420-14 | 1/4" | 8 | 17 | 50,5 | 17 |
| 51420-38 | 3/8" | 9 | 20 | 58 | 19 |
| 51420-12 | 1/2" | 10 | 24 | 68 | 24 |
| 51420-M1215 | M12 x 1.5 | 8 | 17 | 50,5 | 17 |
Product sorting
List of products
The double hollow bolt with 3/8" male pipe thread into the socket with overrunning nut ensures a reliable connection from plastic hoses up to 15 bar. Replacement nut for the...
The double hollow bolt with 1/2" male pipe thread into the socket with overrunning nut ensures a reliable connection from plastic tubing up to 15 bar. Replacement nut for the...
The double hollow bolt with 1/8" male pipe thread into the socket with overrunning nut ensures a reliable connection from plastic hoses up to 15 bar. Replacement nut for the...
The double hollow bolt with M12x1.5 metric male thread into the socket with overrunning nut ensures a reliable connection from plastic tubing up to 15 bar. Replacement nut for...
The double hollow screw with 1/4" male pipe thread into the socket with overmolded nut ensures a reliable connection from plastic hoses up to 15 bar. Replacement nut for the...
