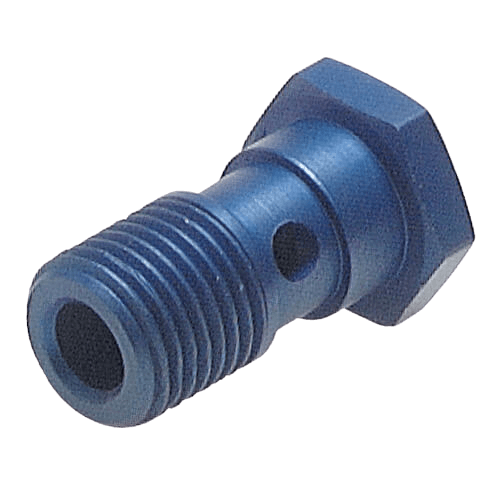

Hollow bolts with external pipe thread
 |
|
Hollow bolts for sleeves with overrunning nut |
||||
| Ordering number |
Thread " |
Height mm |
SW mm |
Material |
| VTA-M5-16 | M5 | 16 | 8 | steel |
| VTA-18-19 | G 1/8" | 19 | 13 | aluminium |
| VTA-18-23 | G 1/8" | 23 | 13 | aluminium |
| VTA-18-25 | G 1/8" | 25 | 14 | aluminium |
| VTA-14-25 | G 1/4" | 25 | 17 | aluminium |
| VTA-14-30 | G 1/4" | 30 | 17 | aluminium |
| VTA-38-25 | G 3/8" | 25 | 22 | aluminium |
| VTA-38-37 | G 3/8" | 37 | 22 | aluminium |
| VTA-12-45 | G 1/2" | 45 | 27 | aluminium |
Product sorting
List of products
Designed for G 3/8" thread. The screw material is aluminum. The height is 25 mm. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
Designed for G 1/4" thread. The screw material is aluminum. The height is 25 mm. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
Designed for G 1/2" thread. The screw material is aluminum. The height is 45 mm. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
Designed for G 1/4" thread. The screw material is aluminum. The height is 30 mm. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
Designed for G 1/8" thread. The screw material is aluminum. The height is 19 mm. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
Designed for G 1/8" thread. The screw material is aluminum. The height is 23 mm. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
Designed for G 1/8" thread. The screw material is aluminum. The height is 25 mm. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
Designed for G 3/8" thread. The screw material is aluminum. The height is 37 mm. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
Designed for M5 thread. The screw material is steel. The height is 16 mm. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
