A1E solenoid valves in 1/4" version
 |
|
Solenoid valves A1E - 1/4" |
|||||
| Valve diagram | Ordering number |
Code | Function | Thread | Flow |
 |
034025 | A1E230 | 3/2 NC | 1/4" | 1,100 l/min |
 |

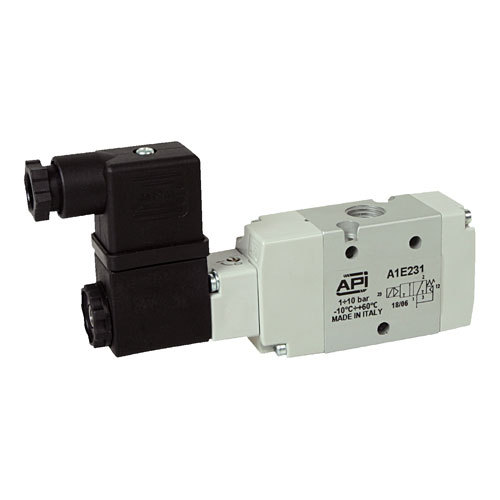

034040 | A1E231 | 3/2 NO | 1/4" | 1,100 l/min |
 |
034024 | A1E232 | 3/2 coil / coil | 1/4" | 1,100 l/min |
 |
034039 | A1K230 | 3/2 NC, auxiliary pressure supply | 1/4" | 1,100 l/min |
 |
034023 | A1K232 | 3/2 coil/coil, auxiliary pressure supply | 1/4" | 1,100 l/min |
 |
034111 | A1E250 | 5/2 coil / spring | 1/4" | 1,100 l/min |
 |
034121 | A1E251 | 5/2 coil / coil | 1/4" | 1,100 l/min |
 |
034131 | A1E270 | 5/3 middle position closed | 1/4" | 1,100 l/min |
 |
034133 | A1E271 | 5/3 middle position ventilated | 1/4" | 1,100 l/min |
 |
034132 | A1E272 | 5/3 medium position under pressure | 1/4" | 1,100 l/min |
 |
034035 | A1K250 | 5/2 coil/spring, auxiliary pressure supply | 1/4" | 1,100 l/min |
 |
034034 | A1K251 | 5/2 coil/coil, auxiliary pressure supply | 1/4" | 1,100 l/min |
 |
034037 | A1K270 | 5/3 middle position closed, auxiliary pressure supply | 1/4" | 1,100 l/min |
 |
034038 | A1K271 | 5/3 middle position vented, auxiliary pressure supply | 1/4" | 1,100 l/min |
 |
034036 | A1K272 | 5/3 medium pressure position, auxiliary pressure supply | 1/4" | 1,100 l/min |
| Note: Valves are supplied without coils and connectors, order separately ! | |||||
Product sorting
List of products
Solenoid valve A1E with 1/4" connection threads in 3/2 coil/coil version with flow rate 1 100 Nl/min and DN 8 mm clearance. Coil ASA12 and connector A12209 are not included. For...
Solenoid valve A1E with connection threads 1/4" in 5/3 middle position closed with flow rate 1 100 Nl/min and clearance DN 8 mm. Coil ASA12 and connector A12209 are not...
Solenoid valve A1E with connection threads 1/4" in 5/3 middle position vented with flow rate 1 100 Nl/min and clearance DN 8 mm. Coil ASA12 and connector A12209 are not...
Solenoid valve A1E with 1/4" connection threads in 3/2 NC version with flow rate 1 100 Nl/min and DN 8 mm clearance. Coil ASA12 and connector A12209 are not included. For...
Solenoid valve A1E with connection threads 1/4" in 5/2 coil/spring version with flow rate 1 100 Nl/min and clearance DN 8 mm. Coil ASA12 and connector A12209 are not included....
Solenoid valve A1E with connection threads 1/4" in 3/2 NC version, auxiliary pressure supply with flow rate 1 100 Nl/min and clearance DN 8 mm. Coil ASA12 and connector A12209...
Solenoid valve A1E with connection threads 1/4" in 3/2 NO version with flow rate 1 100 Nl/min and clearance DN 8 mm. Coil ASA12 and connector A12209 are not included. For...
Solenoid valve A1E with 1/4" connection threads in 5/2 coil/coil version with flow rate 1 100 Nl/min and DN 8 mm clearance. Coil ASA12 and connector A12209 are not included. For...
Solenoid valve A1E with 1/4" connection threads in 5/3 medium position under pressure with flow rate 1 100 Nl/min and DN 8 mm clearance. Coil ASA12 and connector A12209 are not...
Solenoid valve A1E with connection threads 1/4" in 3/2 coil/coil version, auxiliary pressure supply with flow rate 1 100 Nl/min and clearance DN 8 mm. Coil ASA12 and connector...
Solenoid valve A1E with connection threads 1/4" in 5/2 coil/spring version, auxiliary pressure supply with flow rate 1 100 Nl/min and clearance DN 8 mm. Coil ASA12 and connector...
Solenoid valve A1E with 1/4" connection threads in 5/2 coil/coil version, auxiliary pressure supply with flow rate 1 100 Nl/min and DN 8 mm clearance. Coil ASA12 and connector...
Solenoid valve A1E with connection threads 1/4" in 5/3 middle position closed, auxiliary pressure supply with flow rate 1 100 Nl/min and clearance DN 8 mm. Coil ASA12 and...
Solenoid valve A1E with connection threads 1/4" in 5/3 version, middle position vented, auxiliary pressure supply with flow rate 1 100 Nl/min and clearance DN 8 mm. Coil ASA12...
Solenoid valve A1E with 1/4" connection threads in 5/3 medium pressure position, auxiliary pressure supply with flow rate 1 100 Nl/min and DN 8 mm clearance. Coil ASA12 and...
