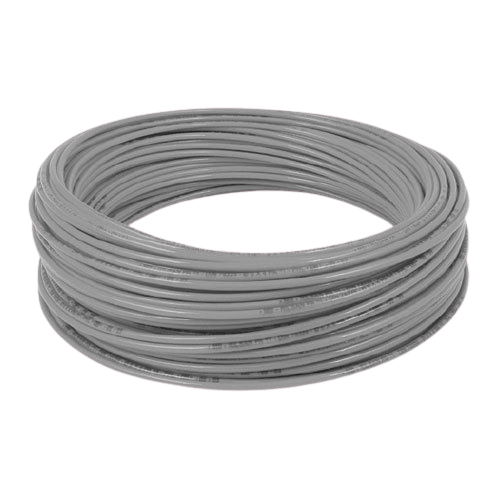

Polyethylene PE hoses for compressed air
![]() |
|
PE plastic polyethylene hoses |
|||||||
| Order number | Diameter mm | Pressure bar |
Temperature °C |
Packaging m |
|||
| blue | milky | black | external | internal | |||
| PE42B | PE42N | PE42S | 4 | 2 | 21 | -10/+60 | 100 |
| PE425B | PE425N | PE425S | 12 | 10 | 15 | -10/+60 | 100 |
| PE53B | PE53N | PE53S | 5 | 3 | 16 | -10/+60 | 100 |
| PE64B | PE64N | PE64S | 6 | 4 | 13 | -10/+60 | 100 |
| PE86B | PE86N | PE86S | 8 | 6 | 9 | -10/+60 | 100 |
| PE108B | PE108N | PE108S | 10 | 8 | 7 | -10/+60 | 100 |
| PE1210B | PE1210N | PE1210S | 12 | 10 | 6 | -10/+60 | 100 |
| Important note : Price per 1m - we supply in metre or whole packs of 100m rolls. | |||||||
If the hose is used at a temperature other than 20 °C, the pressure is in the following ratio |
||||||
| 20°C | 30°C | 40°C | 50°C | 60°C | 70°C | 80°C |
| 100% | 83% | 72% | 64% | 58% | 52% | 47% |
Product sorting
List of products
Clear polyethylene tube 4/2.5 mm, milky translucent, with a 0.75 mm wall thickness. Working pressure 15 bar, sold by the metre.
Blue polyethylene tube 4/2 mm with a working pressure of 21 bar, the highest in the PE range. For control and measuring air, sold by the metre.
Clear PE tube 4/2 mm made of polyethylene, milky translucent. Working pressure 21 bar, for measuring and control connections.
Black PE polyethylene tube 10/8 mm for low-pressure machine circuits. Working pressure 7 bar, impact resistant.
Blue polyethylene PE tube 10/8 mm with a large internal diameter. Working pressure 7 bar, for circuits downstream of the regulator.
Blue polyethylene tubing 6/4 mm, the most common size for pneumatic valves and smaller cylinders. 13 bar, 100 m coil.
Black polyethylene tube 6/4 mm for pneumatic distribution systems of machines. Impact resistant, working pressure 13 bar.
Blue polyethylene PE tube 8/6 mm for larger cylinders and longer lines. Working pressure 9 bar, bending radius 40 mm.
Clear PE tubing 6/4 mm made of polyethylene, milky translucent. Standard pneumatic size, working pressure 13 bar.
Black polyethylene hose 8/6 mm from the PE series. Higher flow rate, impact resistance, working pressure of 9 bar.
Clear PE tube 8/6 mm made of polyethylene, milky translucent. Working pressure 9 bar, sold by the metre or in a 100 m coil.
Black polyethylene tube 5/3 mm from the PE range. Impact resistant, working pressure 16 bar, −10 to +60 °C.
Blue polyethylene tube PE 12/10 mm, the largest diameter in the range. Working pressure 6 bar, bending radius 80 mm.
Clear polyethylene PE tube 12/10 mm, milky translucent. Highest flow rate in the range for circuits up to 6 bar.
Black polyethylene tube 12/10 mm from the PE range for low-pressure lines. Working pressure 6 bar, wall thickness 1 mm.
Clear PE tubing 5/3 mm made of polyethylene, milky translucent. For devices with a 5 mm connection, 16 bar.
Black polyethylene tube 4/2 mm for machine control circuits. It withstands 21 bar and has good impact resistance.
Blue PE tubing 4/2.5 mm made of polyethylene with a thinner wall of 0.75 mm and a larger internal diameter. Working pressure 15 bar.
Blue polyethylene tube 5/3 mm for devices and fittings with a diameter of 5 mm. Working pressure 16 bar.
Black polyethylene PE tube 4/2.5 mm for control circuits with higher flow rate. Wall thickness 0.75 mm, 15 bar.
Clear polyethylene PE tube 10/8 mm, milky translucent. High flow rate at low pressure up to 7 bar.
