    Worm hose clamps with compression band

    Hadicové spony
    • worm hose clamps with press-fitted band and house with SW7 hexagon tightening screw on worm principle

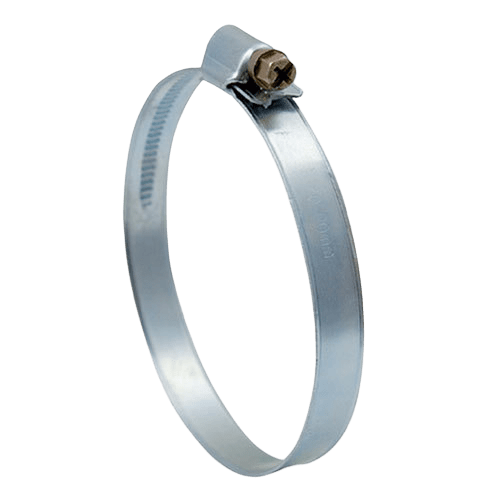

    • version W1 - belt, bolt and house made of galvanized steel - for light duty use
    • version W2 - stainless steel band, chrome-plated house and screw - for common industrial applications
    • design W4 - completely made of AISI 304 stainless steel - corrosion resistant design in industry
    • common buckles find many uses - from DIY, to the intake in your car, to professional use, for example in industry

    Worm Hose Clamps W - 9 mm belt width
    Order number Range
    mm    		 Width
    tape
    mm    		 Thickness
    tape
    mm    		 SW
    zinc
    W1    		 stainless steel belt
    W2    		 all stainless steel
    W4
    W1-012 W2-012 W4-012 8 - 12 9 0,6 7
    W1-016 W2-016 W4-016 10 - 16 9 0,6 7
    W1-020 W2-020 W4-020 12 - 20 9 0,6 7
    W1-022 W2-022 W4-022 12 - 22 9 0,6 7
    W1-025 W2-025
    		 W4-025 16 - 25 9 0,6 7
    W1-027 W2-027 W4-027 16 - 27 9 0,6 7
    W1-032 W2-032 W4-032 20 - 32 9 0,6 7
    W1-040 W2-040 W4-040 25 - 40 9 0,6 7
    W1-045 W2-045 W4-045 30 - 45 9 0,6 7
    W1-050 W2-050 W4-050 32 - 50 9 0,6 7
    W1-060 W2-060 W4-060 40 - 60 9 0,6 7
    W1-070 W2-070 W4-070 50 - 70 9 0,6 7
    W1-080 W2-080 W4-080 60 - 80 9 0,6 7
    W1-090 W2-090 W4-090 70 - 90 9 0,6 7
    W1-100 W2-100 W4-100 80 - 100 9 0,6 7
    W1-110 W2-110 W4-110 90 - 110 9 0,6 7
    W1-120 W2-120 W4-120 100 - 120 9 0,6 7
    W1-130 W2-130 W4-130 110 - 130 9 0,6 7
    W1-140 W2-140 W4-140 120 - 140 9 0,6 7
    W1-150 W2-150 W4-150 130 - 150 9 0,6 7
    W1-160 W2-160 W4-160 140 - 160 9 0,6 7

    Worm Hose Clamps W - 12 mm wide
    Order number Extent
    mm    		 Width
    tape
    mm    		 Thickness
    tape
    mm    		 SW
    zinc
    W1    		 stainless steel belt
    W2    		 all stainless steel
    W4
    W1-12-020 - - 12 - 20 12 0,7 7
    W1-12-027 W2-12-027 W4-12-027 16 - 27 12 0,7 7
    W1-12-032 W2-12-032 W4-12-032 20 - 32 12 0,7 7
    W1-12-040 W2-12-040 W4-12-040 25 - 40 12 0,7 7
    W1-12-045 W2-12-045 - 30 - 45 12 0,7 7
    W1-12-050 W2-12-050 W4-12-050 32 - 50 12 0,7 7
    W1-12-060 W2-12-060 W4-12-060 40 - 60 12 0,7 7
    W1-12-070 W2-12-070 W4-12-070 50 - 70 12 0,7 7
    W1-12-080 W2-12-080 W4-12-080 60 - 80 12 0,7 7
    W1-12-090 W2-12-090 W4-12-090 70 - 90 12 0,7 7
    W1-12-100 W2-12-100 W4-12-100 80 - 100 12 0,7 7
    W1-12-110 - - 90 - 110 12 0,7 7
    W1-12-120 - - 100 - 120 12 0,7 7
    W1-12-130 - - 110 - 130 12 0,7 7
    W1-12-140 - - 120 - 140 12 0,7 7
    W1-12-150 - - 130 - 150 12 0,7 7
    W1-12-160 - - 140 - 160 12 0,7 7
    W1-12-170 - - 150 - 170 12 0,7 7
    W1-12-180 - - 160 - 180 12 0,7 7
    W1-12-190 - - 170 - 190 12 0,7 7
    W1-12-200 - - 180 - 200 12 0,7 7
    W1-12-210 - - 190 - 210 12 0,7 7
    W1-12-220 - - 200 - 220 12 0,7 7
    W1-12-230 - - 210 - 230 12 0,7 7
    W1-12-240 - - 220 - 240 12 0,7 7
    W1-12-250 - - 230 - 250 12 0,7 7
    W1-12-260 - - 240 - 260 12 0,7 7

    Bestsellers

    Hose clamp screw W4 - 9/12 mm
    Stock (>1000 pcs)
    Code: W4-012
    Was: €0,58  (–5 %)
    €0,55
    (€0,45 excl. VAT)
    Worm hose clamp W4 - 9/16 mm
    Stock (>1000 pcs)
    Code: W4-016
    Was: €0,60  (–5 %)
    €0,57
    (€0,47 excl. VAT)
    Hose clamp screw W1 - 9/16 mm
    Stock (>1000 pcs)
    Code: W1-016
    Was: €0,21  (–4 %)
    €0,20
    (€0,17 excl. VAT)

    Product sorting

    109 items total

    List of products

    Worm hose clamp W2 - 9/150 mm
    Tip
    €1,17 –5 %
    Worm hose clamp W2 - 9/150 mm
    Stock (>1000 pcs)
    €0,92 excl. VAT
    €1,11 / pcs

    Worm hose clamps in material finish W2 - stainless steel band, chrome-plated house and screw with 9 mm band width for hoses with a range of 130-150 mm. Manufactured according to...

    Code: W2-150
    Worm hose clamp W1 - 12/220 mm
    Tip
    €1,42 –4 %
    Worm hose clamp W1 - 12/220 mm
    Stock (291 pcs)
    €1,12 excl. VAT
    €1,35 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 12 mm wide band for hoses in the range of 200-220 mm. Manufactured according to DIN 3016. With house and...

    Code: W1-12-220
    W2 screw hose clamp - 12/70 mm
    Tip
    €1,07 –5 %
    W2 screw hose clamp - 12/70 mm
    Stock (>1000 pcs)
    €0,83 excl. VAT
    €1,01 / pcs

    Worm hose clamps in material finish W2 - stainless steel band, chrome-plated house and screw with 12 mm band width for hoses in the range of 50-70 mm. Manufactured according to...

    Code: W2-12-070
    W2 screw hose clamp - 9/25 mm
    Tip
    €0,36 –11 %
    W2 screw hose clamp - 9/25 mm
    Stock (>1000 pcs)
    €0,26 excl. VAT
    €0,32 / pcs

    Worm hose clamps in material finish W2 - stainless steel band, chrome-plated house and screw with 9 mm band width for hoses in the range of 16-25 mm. Manufactured according to...

    Code: W2-025
    W1 screw hose clamp - 12/22 mm
    Tip
    €0,24 –4 %
    W1 screw hose clamp - 12/22 mm
    Stock (>1000 pcs)
    €0,19 excl. VAT
    €0,23 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 9 mm wide band for hose range 12-22 mm. Manufactured according to DIN 3016. With house and tightening screw and...

    Code: W1-022
    W4 screw hose clamp - 9/110 mm
    Tip
    €1,13 –4 %
    W4 screw hose clamp - 9/110 mm
    Stock (>1000 pcs)
    €0,89 excl. VAT
    €1,08 / pcs

    Screw hose clamps in material finish W4 - stainless steel AISI 304 with 9 mm wide band for hoses with a range of 90-110 mm. Manufactured according to DIN 3016. With house and...

    Code: W4-110
    W4 screw hose clamp - 9/20 mm
    Tip
    €0,61 –4 %
    W4 screw hose clamp - 9/20 mm
    The average product rating is 5,0 out of 5 stars.
    Stock (>1000 pcs)
    €0,48 excl. VAT
    €0,58 / pcs

    Screw hose clamps in material finish W4 - stainless steel AISI 304 with 9 mm wide band for hose range 12-20 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W4-020
    W4 screw hose clamp - 12/27 mm
    Tip
    €3,44 –4 %
    W4 screw hose clamp - 12/27 mm
    Stock (>1000 pcs)
    €2,70 excl. VAT
    €3,27 / pcs

    Screw hose clamps in material finish W4 - stainless steel AISI 304 with 12 mm wide band for hose range 16-27 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W4-12-027
    Worm hose clamp W4 - 9/50 mm
    Tip
    €0,85 –5 %
    Worm hose clamp W4 - 9/50 mm
    The average product rating is 5,0 out of 5 stars.
    Stock (>1000 pcs)
    €0,66 excl. VAT
    €0,80 / pcs

    Screw hose clamps in material finish W4 - AISI 304 stainless steel with 9 mm wide band for hoses in the range of 32-50 mm. Manufactured according to DIN 3016. With house and...

    Code: W4-050
    W1 screw hose clamp - 12/32 mm
    Tip
    €0,44 –4 %
    W1 screw hose clamp - 12/32 mm
    Stock (>1000 pcs)
    €0,35 excl. VAT
    €0,42 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 12 mm wide band for hoses in the range of 20-32 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W1-12-032
    W1 screw hose clamp - 12/20 mm
    Tip
    €0,29 –3 %
    W1 screw hose clamp - 12/20 mm
    Stock (>1000 pcs)
    €0,23 excl. VAT
    €0,28 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 12 mm wide band for hoses in the range of 12-20 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W1-12-020
    W1 screw hose clamp - 12/20 mm
    Tip
    €0,22 –4 %
    W1 screw hose clamp - 12/20 mm
    Stock (>1000 pcs)
    €0,17 excl. VAT
    €0,21 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 9 mm wide band for hoses in the range of 12-20 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W1-020
    W4 screw hose clamp - 9/32 mm
    Tip
    €0,75 –5 %
    W4 screw hose clamp - 9/32 mm
    The average product rating is 5,0 out of 5 stars.
    Stock (>1000 pcs)
    €0,59 excl. VAT
    €0,71 / pcs

    Screw hose clamps in material finish W4 - stainless steel AISI 304 with 9 mm wide band for hose range 20-32 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W4-032
    Worm hose clamp W1 - 9/32 mm
    Tip
    €0,24 –4 %
    Worm hose clamp W1 - 9/32 mm
    Stock (>1000 pcs)
    €0,19 excl. VAT
    €0,23 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 9 mm wide band for hose range 20-32 mm. Manufactured according to DIN 3016. With house and tightening screw and...

    Code: W1-032
    Hose clamp screw W4 - 9/12 mm
    Tip
    €0,58 –5 %
    Hose clamp screw W4 - 9/12 mm
    Stock (>1000 pcs)
    €0,45 excl. VAT
    €0,55 / pcs

    Screw hose clamps in material finish W4 - stainless steel AISI 304 with 9 mm wide band for hose range 8-12 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W4-012
    W2 screw hose clamp - 9/27 mm
    Tip
    €0,31 –6 %
    W2 screw hose clamp - 9/27 mm
    Stock (>1000 pcs)
    €0,24 excl. VAT
    €0,29 / pcs

    Worm hose clamps in material finish W2 - stainless steel band, chrome-plated hose house and screw with 9 mm band width for hoses with a range of 16-27 mm. Manufactured according...

    Code: W2-027
    Worm hose clamp W4 - 9/16 mm
    Tip
    €0,60 –5 %
    Worm hose clamp W4 - 9/16 mm
    Stock (>1000 pcs)
    €0,47 excl. VAT
    €0,57 / pcs

    Screw hose clamps in material finish W4 - stainless steel AISI 304 with 9 mm wide band for hose range 10-16 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W4-016
    W2 screw hose clamp - 9/12 mm
    Tip
    €0,28 –3 %
    W2 screw hose clamp - 9/12 mm
    Stock (>1000 pcs)
    €0,22 excl. VAT
    €0,27 / pcs

    Worm hose clamps in material finish W2 - stainless steel band, chrome-plated house and screw with 9 mm band width for hoses in the range of 8-12 mm. Manufactured according to...

    Code: W2-012
    Worm hose clamp W1 - 9/45 mm
    Tip
    €0,29 –3 %
    Worm hose clamp W1 - 9/45 mm
    Stock (>1000 pcs)
    €0,23 excl. VAT
    €0,28 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 9 mm wide band for hoses in the range of 30-45 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W1-045
    Hose clamp screw W1 - 9/16 mm
    Tip
    €0,21 –4 %
    Hose clamp screw W1 - 9/16 mm
    Stock (>1000 pcs)
    €0,17 excl. VAT
    €0,20 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 9 mm wide band for hose range 10-16 mm. Manufactured according to DIN 3016. With house and tightening screw and...

    Code: W1-016
    W1 screw hose clamp - 12/200 mm
    Tip
    €1,27 –4 %
    W1 screw hose clamp - 12/200 mm
    Stock (169 pcs)
    €1 excl. VAT
    €1,21 / pcs

    Screw hose clamps in material finish W1 - galvanized steel with 12 mm wide band for hoses with a range of 180-200 mm. Manufactured according to DIN 3016. With house and...

    Code: W1-12-200
    Worm hose clamp W1 - 9/50 mm
    Tip
    €0,31 –6 %
    Worm hose clamp W1 - 9/50 mm
    Stock (>1000 pcs)
    €0,24 excl. VAT
    €0,29 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 9 mm wide band for hoses in the range of 32-50 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W1-050
    Worm hose clamp W2 - 12/40 mm
    Tip
    €0,81 –4 %
    Worm hose clamp W2 - 12/40 mm
    Stock (>1000 pcs)
    €0,64 excl. VAT
    €0,77 / pcs

    Worm hose clamps in material finish W2 - stainless steel band, chrome-plated house and screw with 12 mm band width for hoses in the range of 25-40 mm. Manufactured according to...

    Code: W2-12-040
    W1 screw hose clamp - 9/100 mm
    Tip
    €0,40 –5 %
    W1 screw hose clamp - 9/100 mm
    Stock (>1000 pcs)
    €0,31 excl. VAT
    €0,38 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 9 mm wide band for hoses in the range of 80-100 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W1-100
    Worm hose clamp W4 - 9/22 mm
    Tip
    €0,49 –4 %
    Worm hose clamp W4 - 9/22 mm
    Stock (>1000 pcs)
    €0,39 excl. VAT
    €0,47 / pcs

    Screw hose clamps in material finish W4 - stainless steel AISI 304 with 9 mm wide band for hose range 12-22 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W4-022
    Worm hose clamp W2 - 12/45 mm
    Tip
    €0,85 –5 %
    Worm hose clamp W2 - 12/45 mm
    Stock (93 pcs)
    €0,66 excl. VAT
    €0,80 / pcs

    Worm hose clamps in material finish W2 - stainless steel band, chrome-plated house and screw with 12 mm band width for hoses with a range of 30-45 mm. Manufactured according to...

    Code: W2-12-045
    Worm hose clamp W4 - 9/100 mm
    Tip
    €1,10 –5 %
    Worm hose clamp W4 - 9/100 mm
    Stock (>1000 pcs)
    €0,86 excl. VAT
    €1,04 / pcs

    Screw hose clamps in material finish W4 - stainless steel AISI 304 with 9 mm wide band for hose range 80-100 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W4-100
    Hose clamp screw W1 - 9/12 mm
    Tip
    €0,21 –4 %
    Hose clamp screw W1 - 9/12 mm
    Stock (>1000 pcs)
    €0,17 excl. VAT
    €0,20 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 9 mm wide band for hoses in the range of 8-12 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W1-012
    Worm hose clamp W2 - 9/40 mm
    Tip
    €0,38 –5 %
    Worm hose clamp W2 - 9/40 mm
    Stock (>1000 pcs)
    €0,30 excl. VAT
    €0,36 / pcs

    Worm hose clamps in material finish W2 - stainless steel band, chrome-plated house and screw with 9 mm band width for hoses in the range of 25-40 mm. Manufactured according to...

    Code: W2-040
    Hose clamp screw W1 - 12/40 mm
    Tip
    €0,48 –6 %
    Hose clamp screw W1 - 12/40 mm
    Stock (>1000 pcs)
    €0,37 excl. VAT
    €0,45 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 12 mm wide band for hoses in the range of 32-40 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W1-12-040
    Hose clamp screw W1 - 9/40 mm
    Tip
    €0,28 –3 %
    Hose clamp screw W1 - 9/40 mm
    Stock (>1000 pcs)
    €0,22 excl. VAT
    €0,27 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 9 mm wide band for hoses in the range of 25-40 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W1-040
    Worm hose clamp W2 - 9/16 mm
    Tip
    €0,28 –3 %
    Worm hose clamp W2 - 9/16 mm
    Stock (>1000 pcs)
    €0,22 excl. VAT
    €0,27 / pcs

    Worm hose clamps in material finish W2 - stainless steel band, chrome-plated house and screw with 9 mm band width for hoses in the range of 10-16 mm. Manufactured according to...

    Code: W2-016
    Worm hose clamp W4 - 9/40 mm
    Tip
    €0,77 –5 %
    Worm hose clamp W4 - 9/40 mm
    Stock (>1000 pcs)
    €0,60 excl. VAT
    €0,73 / pcs

    Screw hose clamps in material finish W4 - AISI 304 stainless steel with 9 mm wide band for hoses in the range of 25-40 mm. Manufactured according to DIN 3016. With house and...

    Code: W4-040
    Worm hose clamp W1 - 12/250 mm
    Tip
    €1,62 –4 %
    Worm hose clamp W1 - 12/250 mm
    Stock (205 pcs)
    €1,27 excl. VAT
    €1,54 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 12 mm wide band for hoses with a range of 230-250 mm. Manufactured according to DIN 3016. With house and...

    Code: W1-12-250
    Hose clamp screw W1 - 9/60 mm
    Tip
    €0,33 –6 %
    Hose clamp screw W1 - 9/60 mm
    Stock (>1000 pcs)
    €0,26 excl. VAT
    €0,31 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 9 mm wide band for hoses in the range of 40-60 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W1-060
    W2 screw hose clamp - 9/20 mm
    Tip
    €0,29 –6 %
    W2 screw hose clamp - 9/20 mm
    Stock (>1000 pcs)
    €0,22 excl. VAT
    €0,27 / pcs

    Worm hose clamps in material finish W2 - stainless steel band, chrome-plated house and screw with 9 mm band width for hoses in the range of 12-20 mm. Manufactured according to...

    Code: W2-020
    Hose clamp screw W1 - 9/140 mm
    Tip
    €0,61 –4 %
    Hose clamp screw W1 - 9/140 mm
    Stock (926 pcs)
    €0,48 excl. VAT
    €0,58 / pcs

    Screw hose clamps in material finish W1 - galvanized steel with 9 mm wide band for hoses with a range of 120-140 mm. Manufactured according to DIN 3016. With house and...

    Code: W1-140
    Worm hose clamp W2 - 9/32 mm
    Tip
    €0,35 –5 %
    Worm hose clamp W2 - 9/32 mm
    Stock (>1000 pcs)
    €0,27 excl. VAT
    €0,33 / pcs

    Worm hose clamps in material finish W2 - stainless steel band, chrome-plated house and screw with 9 mm band width for hoses in the range of 20-32 mm. Manufactured according to...

    Code: W2-032
    Worm hose clamp W1 - 12/120 mm
    Tip
    €0,79 –5 %
    Worm hose clamp W1 - 12/120 mm
    Stock (494 pcs)
    €0,62 excl. VAT
    €0,75 / pcs

    Screw hose clamps in material finish W1 - galvanized steel with 12 mm wide band for hoses with a range of 100-120 mm. Manufactured according to DIN 3016. With house and...

    Code: W1-12-120
    Hose clamp screw W1 - 12/45 mm
    Tip
    €0,50 –4 %
    Hose clamp screw W1 - 12/45 mm
    Stock (263 pcs)
    €0,40 excl. VAT
    €0,48 / pcs

    Worm hose clamps in material finish W1 - galvanized steel with 12 mm wide band for hoses with a range of 30-45 mm. Manufactured according to DIN 3016. With house and tightening...

    Code: W1-12-045

    Listing controls

    109 items total
    Top
