Aluminium pipe in 6 m bar 18/15 - 12,5 bar
Code: TALB-T6-18
Related products
Product detailed description

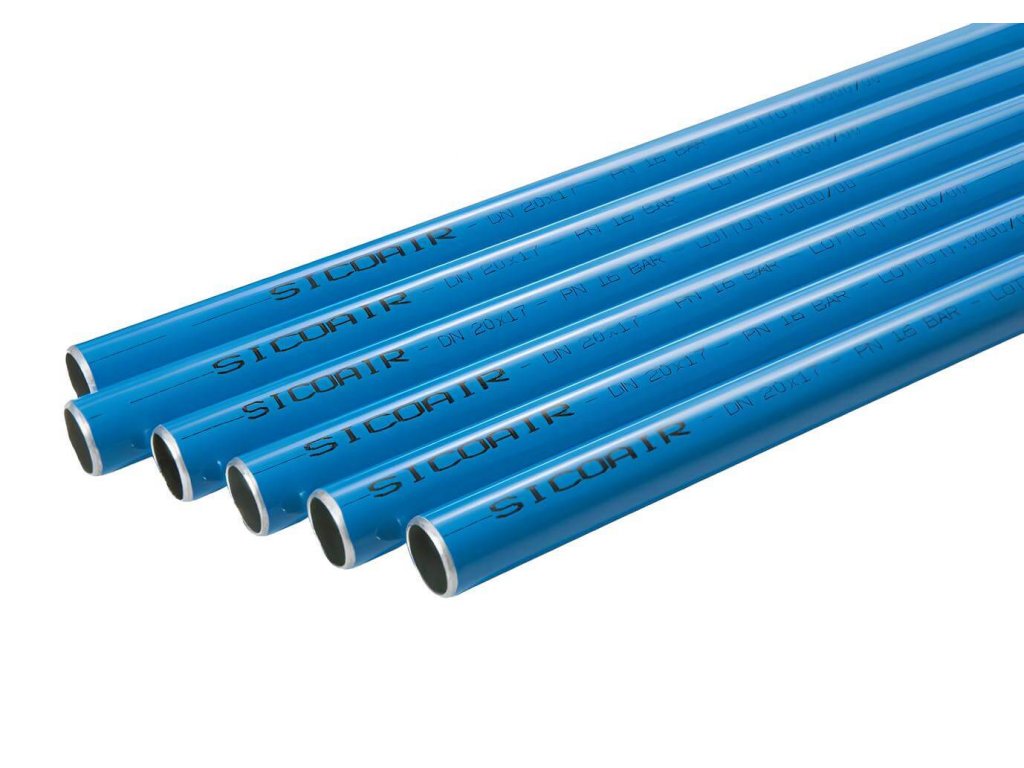

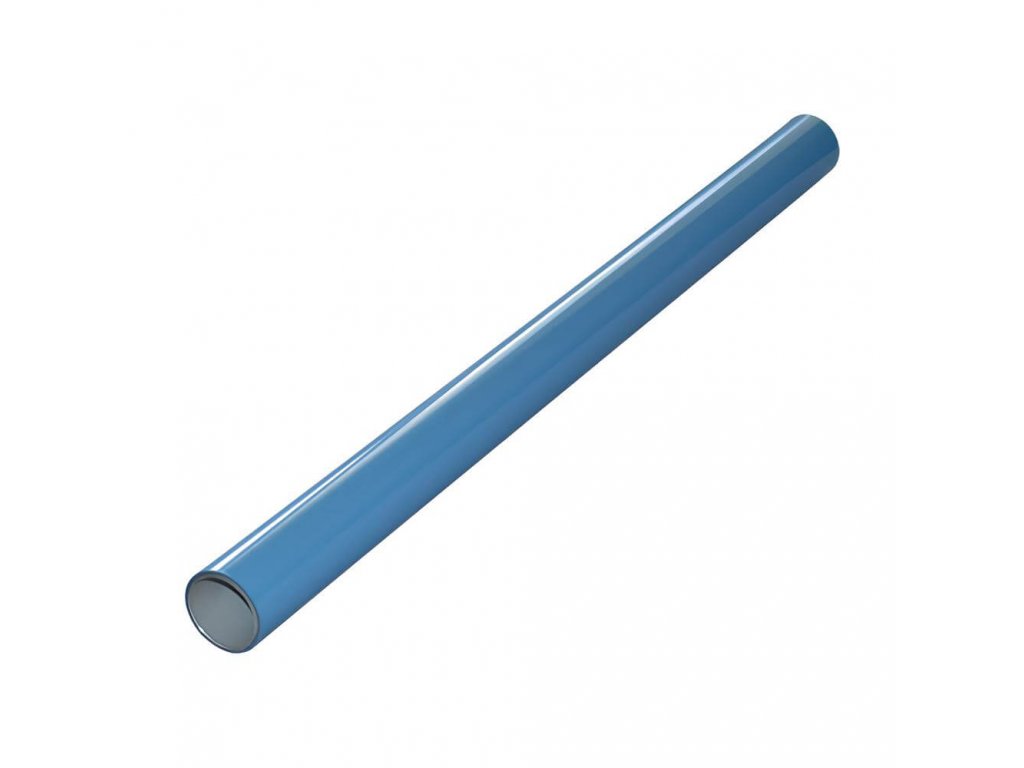

Aluminium tube in 6 m pole blue - TALB-T6-18
- Standards:EN 755-2
- ČSN EN 573-3
- ČSN EN 12020-2
- EN 13480 Part 3 and Part 8
- ČSN EN 15088
- eU Regulation 305/2011/EU - CPR - CE conformity marking
- powder coating according to EN ISO QUALICOAT
- Working pressure: 16 bar
- Operating temperature: up to +100 °C
- Material: aluminium alloy EN AW 6060 T6
- Inner sides anodized for condensation resistance
- Colour: ALB: blue (RAL 5012)
Additional parameters
| Category: | Compressed air piping systems |
|---|---|
| Version: | Trumpets |
| Pressure: | 12.5 bar |
| Barva: | Blue |
| Length: | 6 m |
| Material: | alloy AW-6060 T6 |
| Medium: | Compressed air |
| Working temperature: | -15 / +100 °C |
| Wall strength: | 1.5 mm |
| Outer diameter: | 18 mm |
| Inner diameter: | 15 mm |
| Conduit: | 18 mm |
| In stock: | External warehouse |
Potrubní systém stlačeného vzduchu SICOMAT AIR
Příslušenství potrubního systému SICOMAT AIR
Trubky potrubního systému SICOMAT AIR
Product rating
Be the first who will post an article to this item!
AluNet are aluminium pipes for compressed air and inert gas piping. They are made of EN AW-6060 T6 alloy and powder-coated: blue for air, green for nitrogen and other inert gases.
The pipes have outside diameters from 15 to 100 mm and are sold in full 6 m and 3 m lengths. They are light, corrosion-free, easy to cut and have a low pressure drop. A system built from them is easy to extend or change, whether in a workshop, a factory, a car service or a food plant.
Powder-coated aluminiumWhich AluNet pipes to choose
Blue pipes for air
From a small workshop to a large hall. Pipes from 15 to 100 mm for compressed air lines in 6 m and 3 m lengths.
- 15 to 28 mm for TA and SQ push-in systems
- 20 to 63 mm for SICOAIR piping
- 80 and 100 mm rated at 16 bar
Green pipes for gases
Nitrogen lines at a glance. Green pipes of 20 and 25 mm for nitrogen and other inert gas lines.
- outside diameter 20 and 25 mm
- full 6 m lengths
- same alloy as the blue pipes
With the pipes you need fittings, clips and tools. Complete piping systems are in our compressed air piping category.

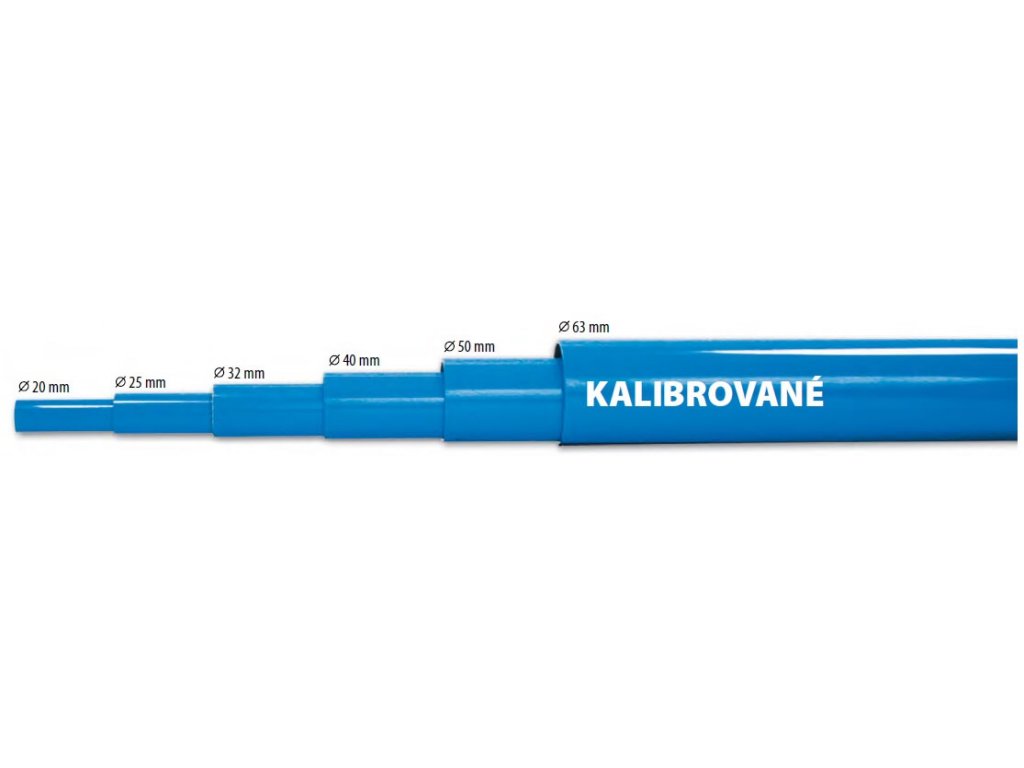

All piping systemsAluNet pipe sizes
| Diameter, pressure, length and colour | ||||
|---|---|---|---|---|
| Outside diameter | Inside diameter | Working pressure | Length | Colour |
| 15 mm | 13 mm | 12.5 bar | 3 and 6 m | blue |
| 18 mm | 15 mm | 12.5 bar | 3 and 6 m | blue |
| 20 mm | 17.4 mm | 12.5 bar | 3 and 6 m | blue, green |
| 22 mm | 19 mm | 12.5 bar | 3 and 6 m | blue |
| 25 mm | 22.2 mm | 12.5 bar | 3 and 6 m | blue, green |
| 28 mm | 25 mm | 12.5 bar | 3 and 6 m | blue |
| 32 mm | 29 mm | 12.5 bar | 3 and 6 m | blue |
| 40 mm | 36.4 mm | 12.5 bar | 3 and 6 m | blue |
| 50 mm | 46 mm | 12.5 bar | 3 and 6 m | blue |
| 63 mm | 59 mm | 12.5 bar | 6 m | blue |
| 80 mm | 76 mm | 16 bar | 6 m | blue |
| 100 mm | 94 mm | 16 bar | 6 m | blue |
We supply the pipes in full lengths only. Green pipes of 20 and 25 mm come in 6 m lengths.
How to prepare and join the pipe
1. Measure
Measure the section including the part that goes into the fitting and mark the cutting point.
2. Cut
Cut the pipe square with a pipe cutter. A slanted cut will not seal properly in the fitting.
3. Deburr
Remove burrs from the outer and inner edge with a deburring tool so the pipe does not damage the fitting seal.
4. Join and fix
Push the pipe fully into the fitting of your system and fix it to the wall with pipe clips.
Frequently asked questions
- What pressure can AluNet pipes take?
- Pipes from 15 to 63 mm have a working pressure of 12.5 bar, pipes of 80 and 100 mm 16 bar. For the whole system, the pressure rating of the fittings also counts.
- What is the difference between the blue and the green pipe?
- Only the colour. Both are made of the same alloy; blue marks a compressed air line, green a line for nitrogen or another inert gas.
- Do you sell pipes by the metre?
- No, we supply the pipes in full 6 m lengths only, and up to 50 mm also in 3 m lengths. You cut shorter pieces yourself.
- Which fittings do AluNet pipes go with?
- Pipes from 15 to 28 mm are listed with the TA and SQ push-in systems, 20 to 63 mm with the SICOAIR system and the large sizes with AIRnet piping. The pipe diameter must match the fitting.
- What temperature can the pipes withstand?
- The working temperature of the pipes is −15 to +100 °C. Fittings usually have a narrower range, up to +70 °C for SICOAIR and AIRnet.
The pipes meet EN 755-2, EN 573-3 and EN 13480 and carry the CE mark. For most pipes a catalogue sheet and a product sheet can be downloaded.
