Ball valves 02TTT with pneumatic actuator
- pekoss 02TTT flanged ball valve system and OMAL type DA and SR pneumatic actuator
- pTFE seals for temperatures up to 200 °C
- actuator operating pressure of at least 5.5 bar
- for sealing of pipelines of non-aggressive media
Ball valves 02TTT with double acting pneumatic actuator DA |
|||||||
| Ordering number |
Luminosity DN |
Pressure bar |
Temperature °C |
Body | Seal | Drive double acting |
 |
| 02TTT-16-015DA | 15 | 16 | up to +200°C | gray cast iron GG25 | PTFE | DA15 | |
| 02TTT-16-020DA | 20 | 16 | up to +200°C | gray cast iron GG25 | PTFE | DA30 | |
| 02TTT-16-025DA | 35 | 16 | up to +200°C | gray cast iron GG25 | PTFE | DA30 | |
| 02TTT-16-032DA | 32 | 16 | up to +200°C | gray cast iron GG25 | PTFE | DA45 | |
| 02TTT-16-040DA | 40 | 16 | up to +200°C | gray cast iron GG25 | PTFE | DA60 | |
| 02TTT-16-050DA | 50 | 16 | up to +200°C | gray cast iron GG25 | PTFE | DA90 | |
| 02TTT-16-065DA | 65 | 16 | up to +200°C | gray cast iron GG25 | PTFE | DA120 | |
| 02TTT-16-080DA | 80 | 16 | up to +200°C | gray cast iron GG25 | PTFE | DA180 | |
| 02TTT-16-100DA | 100 | 16 | up to +200°C | gray cast iron GG25 | PTFE | DA240 | |
| 02TTT-16-125DA | 125 | 16 | up to +200°C | gray cast iron GG25 | PTFE | DA480 | |
| 02TTT-16-150DA | 150 | 16 | up to +200°C | gray cast iron GG25 | PTFE | DA720 | |
| 02TTT-16-200DA | 200 | 16 | up to +200°C | gray cast iron GG25 | PTFE | DA960 | |
Ball valves 02TTT with single-acting pneumatic actuator SR |
|||||||
| Ordering number |
Luminosity DN |
Pressure bar |
Temperature °C |
Body | Seal | Drive single-acting |
 |
| 02TTT-16-015SR | 15 | 16 | up to +200°C | gray cast iron GG25 | PTFE | SR15 | |
| 02TTT-16-020SR | 20 | 16 | up to +200°C | gray cast iron GG25 | PTFE | SR30 | |
| 02TTT-16-025SR | 25 | 16 | up to +200°C | gray cast iron GG25 | PTFE | SR30 | |
| 02TTT-16-032SR | 32 | 16 | up to +200°C | gray cast iron GG25 | PTFE | SR45 | |
| 02TTT-16-040SR | 40 | 16 | up to +200°C | gray cast iron GG25 | PTFE | SR60 | |
| 02TTT-16-050SR | 50 | 16 | up to +200°C | gray cast iron GG25 | PTFE | SR90 | |
| 02TTT-16-065SR | 65 | 16 | up to +200°C | gray cast iron GG25 | PTFE | SR120 | |
| 02TTT-16-080SR | 80 | 16 | up to +200°C | gray cast iron GG25 | PTFE | SR180 | |
| 02TTT-16-100SR | 100 | 16 | up to +200°C | gray cast iron GG25 | PTFE | SR240 | |
| 02TTT-16-125SR | 125 | 16 | up to +200°C | gray cast iron GG25 | PTFE | SR480 | |
| 02TTT-16-150SR | 150 | 16 | up to +200°C | gray cast iron GG25 | PTFE | SR720 | |
| 02TTT-16-200SR | 200 | 16 | up to +200°C | gray cast iron GG25 | PTFE | SR960 | |
Product sorting
List of products
Flanged ball valves 02TTT with DN100 clearance. Double-acting version with DA240 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....

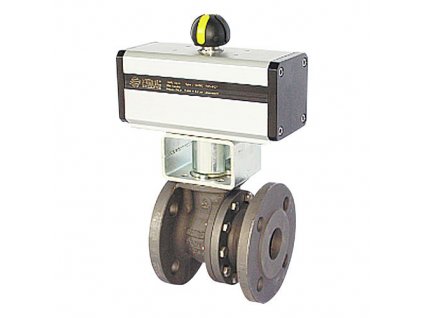

Flanged ball valves 02TTT with clearance DN125. Double-acting version with DA480 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with clearance DN15. Double-acting version with DA15 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with clearance DN150. Double-acting version with DA720 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with clearance DN20. Double-acting version with DA30 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with DN200 clearance. Double-acting version with DA960 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with DN25 clearance. Double-acting version with DA30 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with clearance DN32. Double-acting version with DA45 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with DN40 clearance. Double-acting version with DA60 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with clearance DN50. Double-acting version with DA90 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with DN65 clearance. Double-acting version with DA120 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with DN80 clearance. Double-acting version with DA180 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with DN100 clearance. Single-acting version with SR240 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with clearance DN125. Single-acting version with SR480 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with clearance DN15. Single-acting version with SR15 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with clearance DN150. Single-acting version with SR720 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with clearance DN20. Single-acting version with SR30 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with DN200 clearance. Single-acting version with SR960 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with DN25 clearance. Single-acting version with SR30 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with clearance DN32. Single-acting version with SR45 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with DN40 clearance. Single-acting version with SR60 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with clearance DN50. Single-acting version with SR90 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with DN65 clearance. Single-acting version with SR120 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
Flanged ball valves 02TTT with DN80 clearance. Single-acting version with SR180 drive made of grey cast iron. Designed for pressures of 16 bar and temperatures up to 200°C....
