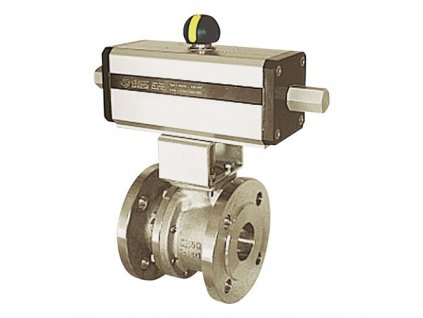

06TTT ball valves with pneumatic actuator
- pekoss 06TTT flanged ball valve system and OMAL type DA and SR pneumatic actuator
- pTFE seals for temperatures up to 200°C
- actuator operating pressure of at least 5.5 bar
- for sealing pipelines with aggressive media in the chemical and food industry
Ball valves 06TTT pressure 16 bar with double acting pneumatic actuator DA |
|||||||
| Ordering number |
Luminosity DN |
Pressure bar |
Temperature °C |
Body | Seal | Drive double acting |
 |
| 06TTT-16-065DA | 65 | 16 | up to +200°C | stainless steel 1.4408 | PTFE | DA120 | |
| 06TTT-16-080DA | 80 | 16 | up to +200°C | stainless steel 1.4408 | PTFE | DA180 | |
| 06TTT-16-100DA | 100 | 16 | up to +200°C | stainless steel 1.4408 | PTFE | DA240 | |
| 06TTT-16-125DA | 125 | 16 | up to +200°C | stainless steel 1.4408 | PTFE | DA480 | |
| 06TTT-16-150DA | 150 | 16 | up to +200°C | stainless steel 1.4408 | PTFE | DA720 | |
| 06TTT-16-200DA | 200 | 16 | up to +200°C | stainless steel 1.4408 | PTFE | DA960 | |
Ball valves 04TTT pressure 40 bar with double acting pneumatic actuator DA |
|||||||
| Ordering number |
Luminosity DN |
Pressure bar |
Temperature °C |
Body | Seal | Drive double acting |
|
| 06TTT-40-015DA | 15 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | DA30 | |
| 06TTT-40-020DA | 20 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | DA30 | |
| 06TTT-40-025DA | 25 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | DA30 | |
| 06TTT-40-032DA | 32 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | DA60 | |
| 06TTT-40-040DA | 40 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | DA90 | |
| 06TTT-40-050DA | 50 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | DA120 | |
| 06TTT-40-065DA | 65 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | DA180 | |
| 06TTT-40-080DA | 80 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | DA240 | |
| 06TTT-40-100DA | 100 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | DA360 | |
| 06TTT-40-125DA | 125 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | DA720 | |
| 06TTT-40-150DA | 150 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | DA960 | |
| 06TTT-40-200DA | 200 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | DA1920 | |
Ball valves 06TTT pressure 16 bar with single-acting pneumatic actuator SR |
|||||||
| Ordering number |
Luminosity DN |
Pressure bar |
Temperature °C |
Body | Seal | Drive single-acting |
 |
| 06TTT-16-065SR | 65 | 16 | up to +200°C | stainless steel 1.4408 | PTFE | SR120 | |
| 06TTT-16-080SR | 80 | 16 | up to +200°C | stainless steel 1.4408 | PTFE | SR180 | |
| 06TTT-16-100SR | 100 | 16 | up to +200°C | stainless steel 1.4408 | PTFE | SR240 | |
| 06TTT-16-125SR | 125 | 16 | up to +200°C | stainless steel 1.4408 | PTFE | SR480 | |
| 06TTT-16-150SR | 150 | 16 | up to +200°C | stainless steel 1.4408 | PTFE | SR720 | |
| 06TTT-16-200SR | 200 | 16 | up to +200°C | stainless steel 1.4408 | PTFE | SR960 | |
Ball valves 06TTT pressure 40 bar with single acting SR pneumatic actuator |
|||||||
| Ordering number |
Luminosity DN |
Pressure bar |
Temperature °C |
Body | Seal | Drive single-acting |
|
| 06TTT-40-015SR | 15 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | SR30 | |
| 06TTT-40-020SR | 20 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | SR30 | |
| 06TTT-40-025SR | 25 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | SR30 | |
| 06TTT-40-032SR | 32 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | SR60 | |
| 06TTT-40-040SR | 40 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | SR90 | |
| 06TTT-40-050SR | 50 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | SR120 | |
| 06TTT-40-065SR | 65 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | SR180 | |
| 06TTT-40-080SR | 80 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | SR240 | |
| 06TTT-40-100SR | 100 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | SR360 | |
| 06TTT-40-125SR | 125 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | SR720 | |
| 06TTT-40-150SR | 150 | 40 | up to +200°C | stainless steel 1.4408 | PTFE | SR960 | |
