Direct ball valves for air up to 25 bar

Přímý kulový kohout armatura pro vzduch do 25 bar

Full flow ball valves, lever operated in blue
Body, threaded part and ball made of brass MS 58, PTFE sealing ring, Viton o-ring
Designed especially for compressed air distribution in industry and crafts

Ball valves with internal threads - lever control
Ordering number	Thread "	DN	Body length mm	Handle length mm	Pressure bar	Weight g
BA-14	1/4"	8	39	76	25	100
BA-38	3/8"	10	44	76	25	136
BA-12	1/2"	15	49	98	25	171,5
BA-34	3/4"	20	56	98	25	236,5
BA-10	1"	25	66	125	25	390
BA-54	1 1/4"	32	76	125	25	615
BA-15	1 1/2"	40	87	142	25	843
BA-20	2"	50	104	147	25	1393

Ball valves internal / external thread - lever control
Ordering number	Thread "	DN	Body length mm	Handle length mm	Pressure bar	Weight g
ART0802-14	1/4"	8	43	85	25	106
ART0802-38	3/8"	10	49	85	25	134
BAA-12	1/2"	15	54	85	25	190
BAA-34	3/4"	20	79	105	25	330
BAA-10	1"	25	79	105	25	505
ART0802-54	1 1/4"	32	91	130	25	833
ART0802-15	1 1/2"	40	104	130	25	1 160
Ball valves with internal threads - lever control
Ordering number	Thread "	DN	Body length mm	Handle length mm	Pressure bar	Weight g
ART15SMV-12B	1/2"	26	48	85	17	127

€12,38 –5 %

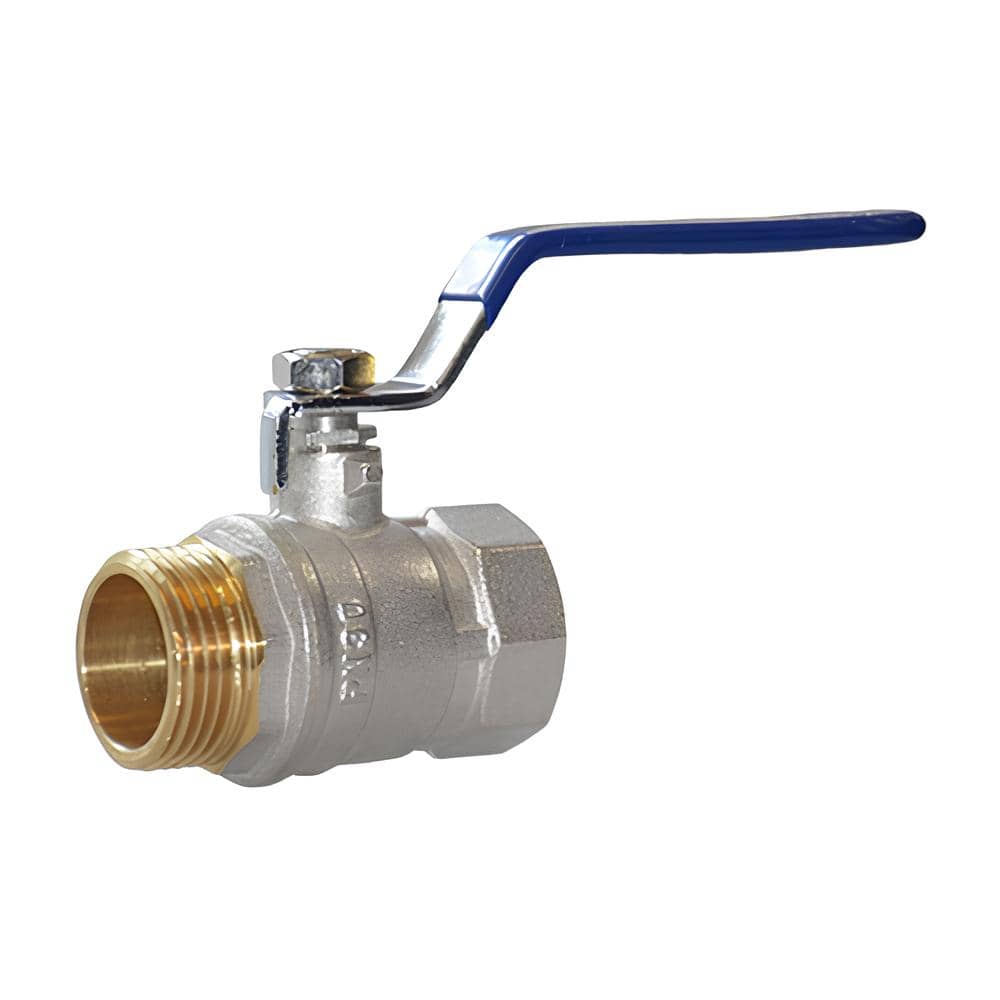

Ball valve 25 bar internal and external thread - 1/2"

()

Code: BAA-12

Was: €12,38 (–5 %)

€11,76

(€9,72 excl. VAT)

€11,98 –5 %

Ball valve for air 25 bar - 1/2"

()

Code: BA-12

Was: €11,98 (–5 %)

€11,38

(€9,40 excl. VAT)

€16,18 –5 %

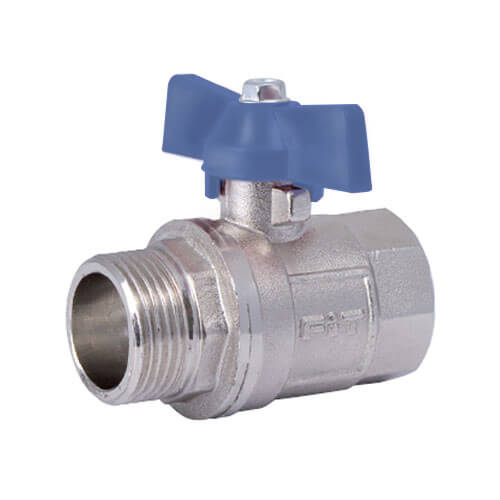

1/2" Air Ball Wing Valve

()

Code: ART15SMV-12B

Was: €16,18 (–5 %)

€15,37

(€12,70 excl. VAT)

€16,82 –4 %

Ball valve 25 bar internal and external thread - 1/4"

()

Code: ART0802-14

Was: €16,82 (–4 %)

€15,98

(€13,21 excl. VAT)

€17,23 –4 %

Ball valve 25 bar internal and external thread - 3/4"

()

Code: BAA-34

Was: €17,23 (–4 %)

€16,37

(€13,53 excl. VAT)

€16,82 –4 %

Ball valve 25 bar internal and external thread - 3/8"

()

Code: ART0802-38

Was: €16,82 (–4 %)

€15,98

(€13,21 excl. VAT)

€9,39 –5 %

Ball valve for air 25 bar - 1/4"

()

Code: BA-14

Was: €9,39 (–5 %)

€8,92

(€7,37 excl. VAT)

€88,37 –4 %

Ball valve 25 bar internal and external thread - 1 1/2"

()

Code: ART0802-15

Was: €88,37 (–4 %)

€83,96

(€69,39 excl. VAT)

€62,01 –5 %

Ball valve 25 bar internal and external thread - 1 1/4"

()

Code: ART0802-54

Was: €62,01 (–5 %)

€58,91

(€48,69 excl. VAT)

€28,16 –5 %

Ball valve 25 bar internal and external thread - 1"

()

Code: BAA-10

Was: €28,16 (–5 %)

€26,75

(€22,11 excl. VAT)

16 items total

Tip

€9,39 –5 %

Ball valve for air 25 bar - 1/4"

()

€7,37 excl. VAT

€8,92 / pcs

Ball valves for compressed air up to 25 bar with full flow, lever operated in blue. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton o-ring. Designed...

Code: BA-14

Tip

€12,38 –5 %

Ball valve 25 bar internal and external thread - 1/2"

()

€9,72 excl. VAT

€11,76 / pcs

Full flow ball valves, lever operated in blue. Connection via internal and external 1/2" thread. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton...

Code: BAA-12

Tip

€8,33 –4 %

Ball valve for air 25 bar - 3/8"

()

€6,55 excl. VAT

€7,92 / pcs

Ball valves for compressed air up to 25 bar with full flow, lever operated in blue. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton o-ring. Designed...

Code: BA-38

Tip

€16,82 –4 %

Ball valve 25 bar internal and external thread - 1/4"

()

€13,21 excl. VAT

€15,98 / pcs

Ball valves PN 25 for compressed air. Full flow ball valves, lever operated in blue. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton o-ring. Designed...

Code: ART0802-14

Tip

€11,98 –5 %

Ball valve for air 25 bar - 1/2"

()

€9,40 excl. VAT

€11,38 / pcs

Ball valves for compressed air up to 25 bar with full flow, lever operated in blue. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton o-ring. Designed...

Code: BA-12

Tip

€16,82 –4 %

Ball valve 25 bar internal and external thread - 3/8"

()

€13,21 excl. VAT

€15,98 / pcs

Ball valves PN 25 for compressed air. Full flow ball valves, lever operated in blue. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton o-ring. Designed...

Code: ART0802-38

Tip

€28,16 –5 %

Ball valve 25 bar internal and external thread - 1"

()

€22,11 excl. VAT

€26,75 / pcs

Full flow ball valves, lever operated in blue. Connection via internal and external 1" thread. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton o-ring....

Code: BAA-10

Tip

€22,65 –4 %

Ball valve for air 25 bar - 1"

()

€17,79 excl. VAT

€21,52 / pcs

Ball valves for compressed air up to 25 bar with full flow, lever operated in blue. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton o-ring. Designed...

Code: BA-10

Tip

€16,18 –5 %

1/2" Air Ball Wing Valve

()

€12,70 excl. VAT

€15,37 / pcs

ball valve inside/outside thread 1/2" for compressed air up to 17 bar with full flow, operated by wing handle in blue. Body, threaded part and ball made of MS 58 brass, PTFE...

Code: ART15SMV-12B

Tip

€62,01 –5 %

Ball valve 25 bar internal and external thread - 1 1/4"

()

€48,69 excl. VAT

€58,91 / pcs

Ball valves PN 25 for compressed air. Full flow ball valves, lever operated in blue. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton o-ring. Designed...

Code: ART0802-54

Tip

€61,97 –4 %

Ball valve for air 25 bar - 1 1/2"

()

€48,66 excl. VAT

€58,88 / pcs

Ball valves for compressed air up to 25 bar with full flow, lever operated in blue. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton o-ring. Designed...

Code: BA-15

Tip

€88,37 –4 %

Ball valve 25 bar internal and external thread - 1 1/2"

()

€69,39 excl. VAT

€83,96 / pcs

Ball valves PN 25 for compressed air. Full flow ball valves, lever operated in blue. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton o-ring. Designed...

Code: ART0802-15

Tip

€45,06 –4 %

Ball valve for air 25 bar - 1 1/4"

()

€35,38 excl. VAT

€42,81 / pcs

Ball valves for compressed air up to 25 bar with full flow, lever operated in blue. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton o-ring. Designed...

Code: BA-54

Tip

€17,23 –4 %

Ball valve 25 bar internal and external thread - 3/4"

()

€13,53 excl. VAT

€16,37 / pcs

Full flow ball valves, lever operated in blue. Connection via internal and external 3/4" thread. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton...

Code: BAA-34

Tip

€116,10 –5 %

Ball valve for air 25 bar - 2"

()

€91,15 excl. VAT

€110,29 / pcs

Ball valves for compressed air up to 25 bar with full flow, lever operated in blue. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton o-ring. Designed...

Code: BA-20

Tip

€19,01 –5 %

Ball valve for air 25 bar - 3/4"

()

€14,93 excl. VAT

€18,06 / pcs

Ball valves for compressed air up to 25 bar with full flow, lever operated in blue. Body, threaded part and ball made of MS 58 brass, PTFE sealing ring, Viton o-ring. Designed...

Code: BA-34
