Ball valve Pekos 86TTT - DN100, L version
Code: 86TTT-16L-100
Product detailed description
Ball valve 86TTT-16L-100
- "L" drilling
- with flanges, operated by a lever
- made of stainless steel 1.44008, PTFE seal
- designed for aggressive media in industry
Additional parameters
| Category: | Stainless steel three-way ball valves 86TTT with flanges |
|---|---|
| Pressure: | 16 bar |
| Connecting: | Flange |
| Material: | Stainless steel |
| Medium: | Air, Water, Aggressive media |
| Standard: | 94/9/EC, BS 6364, EN 1092, Ex II 2 G D, GOST-R, ISO 5211, ISO 7005, TUV AR.263-01 |
| Brightness DN: | 100 |
| Seals: | PTFE |
| Drilling a ball: | L |
| Controls: | Manual |
| Design of fittings: | Automated, Intermediate flanges, Three-part, Three-way |
Product rating
Be the first who will post an article to this item!
Pekos is a Spanish ball valve manufacturer based in Montmeló near Barcelona, making ball valves since 1988. It supplies more than 75 countries for the chemical, petrochemical, energy, marine, pharmaceutical and food industries.
We offer lever-operated Pekos flanged ball valves: the two-way series 02TTT in cast iron, 04TTT in steel and 06TTT in stainless steel, and the three-way series 84TTT and 86TTT. All have a PTFE ball seal and an ISO 5211 actuator mounting flange.
Spanish brandWhich Pekos valves to choose
02TTT — grey cast iron
For water, air and less aggressive media. Two-piece flanged valve with face-to-face length to EN 558-1.
- DN15 to DN200
- GG25 cast iron body, PTFE seal
- temperature up to +190 °C
04TTT — steel
Up to 40 bar with a 3.1 certificate. Flanged valve in 1.0619 steel with face-to-face length to DIN 3202-F4.
- DN15 to DN300
- PN 16 and PN 40
- temperature up to +200 °C
06TTT — stainless steel
For aggressive media. Flanged valve in 1.4408 stainless steel for demanding industrial conditions.
- DN15 to DN300
- PN 16 and PN 40
- 3.1 certificate included
84TTT — three-way, steel
Switches flow between branches. Three-way flanged valve in 1.0619 steel with an L or T port ball.
- DN100, DN150 and DN200
- PN 16, temperature up to +180 °C
- for less aggressive media
86TTT — three-way, stainless
Three-way valve for aggressive media. 1.4408 stainless steel body and an L or T port ball.
- DN100, DN150 and DN200
- PN 16, temperature up to +180 °C
- chemical and food industry
Need a smaller valve, a threaded one or one with an actuator already fitted? All ball valves and fittings are in one category.
Valves and fittingsPekos valves side by side
| Series, design, material, size, pressure and temperature | |||||
|---|---|---|---|---|---|
| Series | Design | Body material | Size | Pressure | Temperature |
| 02TTT | two-way, two-piece, EN 558-1 | GG25 cast iron | DN15–200 | PN 16 | up to +190 °C |
| 04TTT | two-way, DIN 3202-F4 | 1.0619 steel | DN15–300 | PN 16 and PN 40 | up to +200 °C |
| 06TTT | two-way, DIN 3202-F4 | 1.4408 stainless steel | DN15–300 | PN 16 and PN 40 | up to +200 °C |
| 84TTT | three-way, L or T port | 1.0619 steel | DN100–200 | PN 16 | up to +180 °C |
| 86TTT | three-way, L or T port | 1.4408 stainless steel | DN100–200 | PN 16 | up to +180 °C |
All valves have a PTFE ball seal, are lever-operated and have an ISO 5211 actuator mounting flange.
How to choose and install a ball valve
1. Material for the medium
Cast iron or steel is enough for water and air. For aggressive media, such as in chemical or food processing, choose stainless steel.
2. Size and pressure
Choose the DN size to match the pipe. The pressure class of the valve must be equal to or higher than the highest pressure in the system.
3. Installation
Fit the valve between the pipe flanges with gaskets. Tighten the bolts gradually and crosswise so that the flanges seat evenly.
4. Operation
The valve opens and closes with a 90° turn of the lever. For remote control, mount a pneumatic or electric actuator on the ISO 5211 flange.
Frequently asked questions
- Which media are Pekos valves suitable for?
- Series 02TTT, 04TTT and 84TTT are for water, air and less aggressive media. The stainless series 06TTT and 86TTT handle aggressive media in the chemical and food industries.
- Can a Pekos valve be operated by an actuator?
- Yes. The valves have an ISO 5211 actuator mounting flange. We also offer series 02TTT and 86TTT as a complete assembly with an OMAL pneumatic actuator in the category of valves with pneumatic actuators.

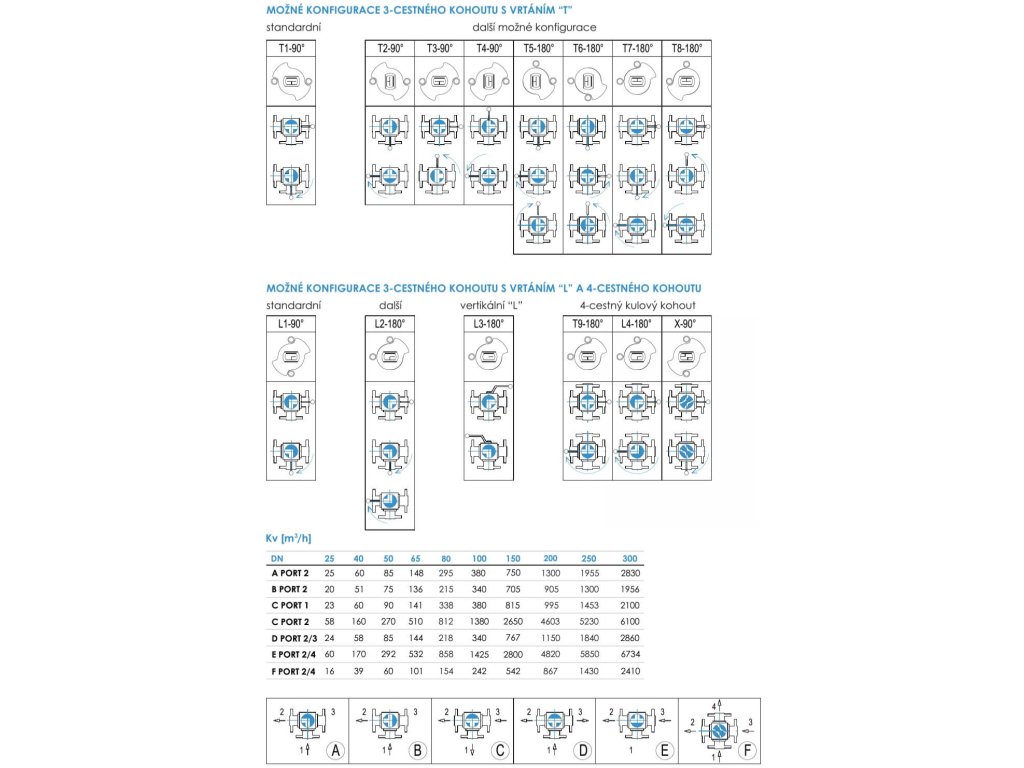

- What is the difference between an L and a T port?
- An L port ball switches the flow between two branches. A T port can also connect all three ports or let the medium flow straight through.
- What is a 3.1 certificate?
- A 3.1 inspection certificate documents the material and tests of the supplied valve. It is included with series 04TTT and 06TTT.
- Which approvals does the manufacturer hold?
- Pekos lists ISO 9001, the PED 2014/68/EU directive, ATEX, Fire Safe and TA Luft, among others. The three-way valves 84TTT and 86TTT carry the ATEX marking Ex II 2 G D on their product pages.
Pekos is a brand of the Spanish company Pekos Valves from Montmeló near Barcelona, which runs fully automated warehouses in Barcelona and Bilbao. You will find the dimensions and standards of each valve on its product page.
