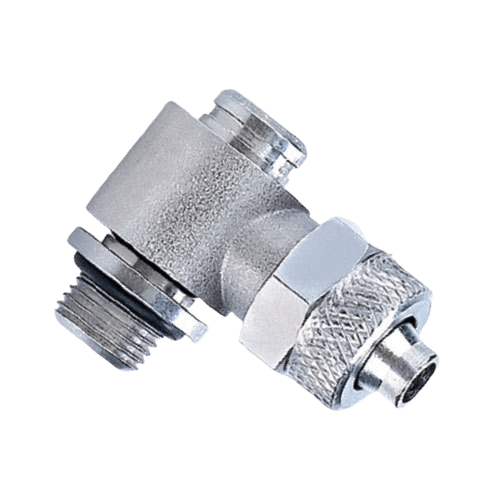

Swivel corner fitting coupling nut male thread G
 |
|
L-screw swivel fitting with external pipe thread G |
|||||
| Ordering number |
Tube mm |
Thread " |
Length mm |
Thread length mm |
Height mm |
| RPHG-M54 | 4/2.5 mm | M5 | 18 | 4 | 17 |
| RPHG-M64 | 4/2.5 mm | M5 | 18 | 4 | 17 |
| RPHG-185 | 5/3 mm | 1/8" | 27 | 6 | 23 |
| RPHG-M56 | 6/4 mm | M5 | 18 | 4 | 17 |
| RPHG-186 | 6/4 mm | 1/8" | 27 | 6 | 25 |
| RPHG-146 | 6/4 mm | 1/4" | 30 | 8 | 26 |
| RPHG-386 | 6/4 mm | 3/8" | 30 | 9 | 28 |
| RPHG-188 | 8/6 mm | 1/8" | 27 | 6 | 24 |
| RPHG-148 | 8/6 mm | 1/4" | 30 | 8 | 26 |
| RPHG-388 | 8/6 mm | 3/8" | 30 | 9 | 28 |
| RPHG-1810 | 10/8 mm | 1/8" | 31 | 6 | 25 |
| RPHG-1410 | 10/8 mm | 1/4" | 34 | 8 | 27 |
| RPHG-3810 | 10/8 mm | 3/8" | 34 | 9 | 30 |
| RPHG-1210 | 10/8 mm | 1/2" | 35 | 10 | 32 |
| RPHG-3812 | 12/10 mm | 3/8" | 34 | 9 | 32 |
| RPHG-1212 | 12/10 mm | 1/2" | 35 | 10 | 34 |
Product sorting
List of products
The corner swivel fitting with 6/4 mm hose nut and G1/8" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
Corner swivel fitting with 6/4 mm hose nut and M5 male metric thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications requiring...
The corner swivel fitting with 5/3 mm hose nut and G1/8" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
Corner swivel fitting with 4/2.5 mm hose nut and M6 male metric thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
The corner swivel fitting with 8/6 mm hose nut and G1/4" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
The corner swivel fitting with 6/4 mm hose nut and G1/4" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
The corner swivel fitting with 10/8 mm hose nut and G1/4" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
The corner swivel fitting with 10/8 mm hose nut and G1/8" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
The corner swivel fitting with 8/6 mm hose nut and G1/8" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
The corner swivel fitting with 12/10 mm hose nut and G3/8" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
The corner swivel fitting with 12/10 mm hose nut and G1/2" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
The corner swivel fitting with 10/8 mm hose nut and G1/2" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
The corner swivel fitting with 6/4 mm hose nut and G3/8" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
The corner swivel fitting with 8/6 mm hose nut and G3/8" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
The corner swivel fitting with 10/8 mm hose nut and G3/8" male pipe thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
Corner swivel fitting with 4/2.5 mm hose nut and M5 metric male thread ensures reliable connection of plastic hoses up to 15 bar. Particularly suitable for applications...
