    Home / Measuring technology / Manometers; for measuring the pressure of a medium / Panel gauges; with caliper or flange / Panel gauges; with front hinge

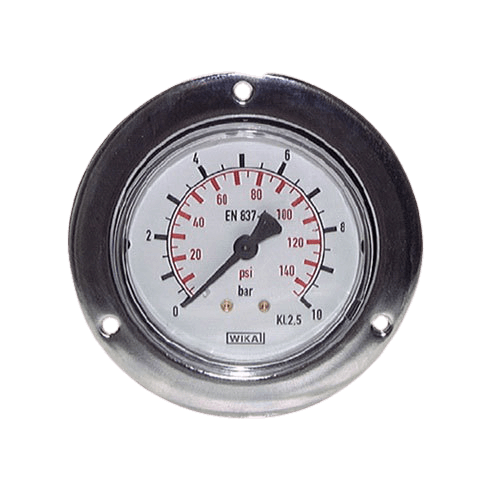

    Pressure gauges for MSE panel with mounting flange

    Manometr s čelní přírubou do panelu
    • Face flange gauges for easy mounting to machine panels, production lines and equipment
    • Materials used: steel body, copper measuring element and pointer, plastic windscreen
    • Medium temperature up to a maximum of +60°C
    • Designed especially for deliveries to production equipment, machines and lines

    Gauges with flange for panel - gauge diameter 50 mm - rear thread 1/4"
    Ordering
    number    		 Diameter
    indicators
    mm    		 Pressure range
    bar    		 Connection Thread
    "    		 Class
    accuracy    		 Operational
    temperature
    °C    		 Manometr s přírubou do panelu o průměru 50 mm
    MSE50-V 50 -1 to 0 rear 1/4" 2,5% -20/+60
    MSE50-1 50 0 to 1 rear 1/4" 2,5% -20/+60
    MSE50-2.5 50 0 to 2.5 rear 1/4" 2,5% -20/+60
    MSE50-4 50 0 to 4 rear 1/4" 2,5% -20/+60
    MSE50-6 50 0 to 6 rear 1/4" 2,5% -20/+60
    MSE50-10 50 0 to 10 rear 1/4" 2,5% -20/+60
    MSE50-16 50 0 to 16 rear 1/4" 2,5% -20/+60
    MSE50-25 50 0 to 25 rear 1/4" 2,5% -20/+60
    MSE50-40 50 0 to 40 rear 1/4" 2,5% -20/+60
    MSE50-60 50 0 to 60 rear 1/4" 2,5% -20/+60
    MSE50-100 50 0 to 100 rear 1/4" 2,5% -20/+60
    Please note : Front flange for fixing to the panel is included

    Gauges with panel flange - 63 mm diameter - 1/4" rear thread
    Ordering
    number    		 Diameter
    pointers
    mm    		 Pressure range
    bar    		 Connection Thread Class
    accuracy    		 Operational
    temperature
    °C    		 Manometr s přírubou do panelu o průměru 63 mm
    MSE63-V 63 -1 to 0 rear 1/4" 2,5% -20/+60
    MSE63-1 63 0 to 1 rear 1/4" 2,5% -20/+60
    MSE63-1.6 63 0 to 1.6 rear 1/4" 2,5% -20/+60
    MSE63-2.5 63 0 to 2.5 rear 1/4" 2,5% -20/+60
    MSE63-4 63 0 to 4 rear 1/4" 2,5% -20/+60
    MSE63-6 63 0 to 6 rear 1/4" 2,5% -20/+60
    MSE63-10 63 0 to 10 rear 1/4" 2,5% -20/+60
    MSE63-16 63 0 to 16 rear 1/4" 2,5% -20/+60
    MSE63-25 63 0 to 25 rear 1/4" 2,5% -20/+60
    MSE63-40 63 0 to 40 rear 1/4" 2,5% -20/+60
    MSE63-60 63 0 to 60 rear 1/4" 2,5% -20/+60
    MSE63-100 63 0 to 100 rear 1/4" 2,5% -20/+60
    MSE63-160 63 0 to 160 rear 1/4" 2,5% -20/+60
    MSE63-250 63 0 to 250 rear 1/4" 2,5% -20/+60
    MSE63-315 63 0 to 315 rear 1/4" 2,5% -20/+60
    MSE63-400 63 0 to 400 rear 1/4" 2,5% -20/+60
    Please note : Front flange for fixing to the panel is included

    Bestsellers

    Pressure gauge with face flange 0/10 bar - 50 mm - 1/4"
    Stock (151 pcs)
    Code: MSE50-10
    Was: €27,82  (–5 %)
    €26,42
    (€21,83 excl. VAT)
    Pressure gauge with face flange 0/400 bar - 63 mm - 1/4"
    Stock (20 pcs)
    Code: MSE63-400
    Was: €27,82  (–5 %)
    €26,42
    (€21,83 excl. VAT)
    Pressure gauge with face flange -1/0 bar - 50 mm - 1/4"
    Stock (50 pcs)
    Code: MSE50-V
    Was: €27,82  (–5 %)
    €26,42
    (€21,83 excl. VAT)

    Product sorting

    28 items total

    List of products

    Pressure gauge with face flange 0/1 bar - 50 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/1 bar - 50 mm - 1/4"
    Stock (12 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 50 mm indicator with pressure measurement range 0/1 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE50-1
    Pressure gauge with face flange 0/40 bar - 50 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/40 bar - 50 mm - 1/4"
    Stock (17 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 50 mm indicator with pressure measurement range 0/40 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE50-40
    Pressure gauge with front flange 0/0.6 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with front flange 0/0.6 bar - 63 mm - 1/4"
    Stock (20 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/0.6 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-0-6
    Pressure gauge with face flange 0/400 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/400 bar - 63 mm - 1/4"
    Stock (20 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/400 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-400
    Pressure gauge with face flange -1/0 bar - 50 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange -1/0 bar - 50 mm - 1/4"
    Stock (50 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 50 mm indicator with pressure measurement range -1/0 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE50-V
    Pressure gauge with face flange -1/0 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange -1/0 bar - 63 mm - 1/4"
    Stock (20 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range -1/0 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-V
    Pressure gauge with face flange 0/1.6 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/1.6 bar - 63 mm - 1/4"
    Stock (50 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/1.6 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-1-6
    Pressure gauge with face flange 0/100 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/100 bar - 63 mm - 1/4"
    Stock (50 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/100 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-100
    Pressure gauge with face flange 0/16 bar - 50 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/16 bar - 50 mm - 1/4"
    Stock (50 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 50 mm indicator with pressure measurement range 0/16 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE50-16
    Pressure gauge with face flange 0/2.5 bar - 50 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/2.5 bar - 50 mm - 1/4"
    Stock (20 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 50 mm indicator with pressure measurement range 0/2.5 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE50-2-5
    Pressure gauge with face flange 0/2.5 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/2.5 bar - 63 mm - 1/4"
    Stock (50 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/2.5 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-2-5
    Pressure gauge with face flange 0/25 bar - 50 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/25 bar - 50 mm - 1/4"
    Stock (20 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 50 mm indicator with pressure measurement range 0/25 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE50-25
    Pressure gauge with face flange 0/250 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/250 bar - 63 mm - 1/4"
    Stock (50 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/250 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-250
    Pressure gauge with face flange 0/315 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/315 bar - 63 mm - 1/4"
    Stock (20 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/315 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-315
    Pressure gauge with face flange 0/4 bar - 50 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/4 bar - 50 mm - 1/4"
    Stock (50 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 50 mm indicator with pressure measurement range 0/4 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE50-4
    Pressure gauge with face flange 0/4 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/4 bar - 63 mm - 1/4"
    Stock (20 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/4 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-4
    Pressure gauge with face flange 0/6 bar - 50 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/6 bar - 50 mm - 1/4"
    Stock (50 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 50 mm indicator with pressure measurement range 0/6 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE50-6
    Pressure gauge with face flange 0/6 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/6 bar - 63 mm - 1/4"
    Stock (150 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/6 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-6
    Pressure gauge with face flange 0/60 bar - 50 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/60 bar - 50 mm - 1/4"
    Stock (17 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 50 mm indicator with pressure measurement range 0/60 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE50-60
    Pressure gauge with face flange 0/60 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/60 bar - 63 mm - 1/4"
    Stock (20 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/60 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-60
    Pressure gauge with face flange 0/10 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/10 bar - 63 mm - 1/4"
    Stock (150 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/10 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-10
    Pressure gauge with face flange 0/16 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/16 bar - 63 mm - 1/4"
    Stock (50 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/16 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-16
    Pressure gauge with face flange 0/10 bar - 50 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/10 bar - 50 mm - 1/4"
    Stock (151 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 50 mm indicator with pressure measurement range 0/10 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE50-10
    Pressure gauge with face flange 0/40 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/40 bar - 63 mm - 1/4"
    Stock (40 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/40 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-40
    Pressure gauge with face flange 0/1 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/1 bar - 63 mm - 1/4"
    Stock (18 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/1 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-1
    Pressure gauge with face flange 0/100 bar - 50 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/100 bar - 50 mm - 1/4"
    Stock (21 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 50 mm indicator with pressure measurement range 0/100 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE50-100
    Pressure gauge with face flange 0/160 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with face flange 0/160 bar - 63 mm - 1/4"
    Stock (22 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/160 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-160
    Pressure gauge with front flange 0/25 bar - 63 mm - 1/4"
    €27,82 –5 %
    Pressure gauge with front flange 0/25 bar - 63 mm - 1/4"
    Stock (51 pcs)
    €21,83 excl. VAT
    €26,42 / pcs

    Panel gauge with front flange, 63 mm indicator with pressure measurement range 0/25 bar with 2.5% deviation. Side connection 1/4". Body made of steel, measuring member and...

    Code: MSE63-25
