Pressure gauges for measuring the pressure of industrial gases
 |
|
Oxygen gauges - diameter 63 mm and 1/4" in degreased version |
||||||
| Ordering number |
Diameter pointers mm |
Pressure range bar |
Connection | Thread " |
Class accuracy % |
Operational temperature °C |
| MOX63-16 | 63 | 0 to 16 | lower | 1/4" | 2,5% | -40/+60 |
| MOX63-40 | 63 | 0 to 40 | lower | 1/4" | 2,5% | -40/+60 |
| MOX63-315 | 63 | 0 to 315 | lower | 1/4" | 2,5% | -40/+60 |
| MOX63-400 | 63 | 0 to 400 | lower | 1/4" | 2,5% | -40/+60 |
Manometers for acetylene - 63 mm diameter and 1/4" in degreased version |
||||||
| Ordering number |
Diameter pointers mm |
Pressure range bar |
Connection | Thread " |
Class accuracy % |
Operational temperature °C |
| MAC63-2.5 | 63 | 0 to 2.5 | lower | 1/4" | 2,5% | -40/+60 |
| MAC63-40 | 63 | 0 to 40 | lower | 1/4" | 2,5% | -40/+60 |
Manometers for argon - 63 mm diameter and 1/4" in degreased version |
||||||
| Ordering number |
Diameter pointers mm |
Pressure range bar |
Connection | Thread " |
Class accuracy % |
Operational temperature °C |
| MAR63-30 | 63 | 0 to 30 | lower | 1/4" | 2,5% | -40/+60 |
Product sorting
List of products
Pressure gauge for technical gas Oxygen with 63 mm pointer and pressure measurement range 0/315 bar with 2.5% deviation. Side connection 1/4". Suitable technical gases are...
Pressure gauge for technical gas Oxygen with 63 mm gauge and pressure measurement range 0/16 bar with 2.5% deviation. Side connection 1/4". Suitable technical gases are intended...
Pressure gauge for technical gas Oxygen with 63 mm pointer and pressure measurement range 0/400 bar with 2.5% deviation. Side connection 1/4". Suitable technical gases are...
Manometer for Argon technical gas with 63 mm pointer and pressure measurement range 0/30 bar with 2.5% deviation. Side connection 1/4". Suitable technical gases are intended...

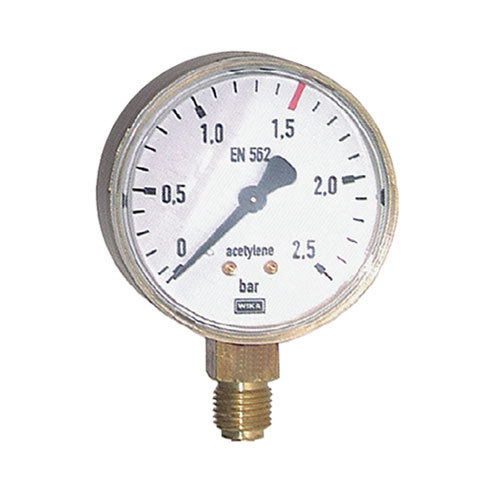

Manometer for technical gas Acetylene with 63 mm pointer with pressure measurement range 0/2,5 bar with 2,5% deviation. Side connection 1/4". Suitable technical gases are...
Manometer for technical gas Acetylene with 63 mm pointer and pressure measurement range 0/40 bar with 2.5% deviation. Side connection 1/4". Suitable technical gases are intended...
Pressure gauge for technical gas Oxygen with 63 mm gauge and pressure measurement range 0/40 bar with 2.5% deviation. Side connection 1/4". Suitable technical gases are intended...
