Stainless Steel Straight Ball Valve - 1 1/4"
Code: VL451-54
Product detailed description
Ball valves VL451 for aggressive media - 1 1/4"
- Stainless steel ball valves with internal threads with lever control
- Designed for aggressive media especially in the chemical and food industry
Additional parameters
| Category: | Stainless steel ball valves VL451 |
|---|---|
| Pressure: | 63 bar |
| Connecting: | Thread |
| Material: | Stainless steel |
| Medium: | Air, Water, Aggressive media |
| Thread design: | Internal |
| Brightness DN: | 32 |
| Seals: | PTFE |
| Thread: | G 1 1/4" |
| Controls: | Manual |
| Design of fittings: | Direct, Two-piece |
| In stock: | External warehouse |
Product rating
Be the first who will post an article to this item!
Under the EPI brand we offer industrial ball valves for water, air and aggressive media. Most series are made of 1.4408 stainless steel with PTFE seals, while the K809 high-pressure valves are made of A350 LF2 carbon steel.
You can choose by connection — female thread, weld ends or flanges — and by design: two-piece, three-piece that can be taken apart, three-way, high-pressure up to 140 bar, and valves with an ISO 5211 flange for a pneumatic or electric actuator.
Stainless and carbon steelWhich EPI valves to choose
VL451 — stainless, threaded
A basic valve, also for aggressive media. Two-piece stainless steel valve with female threads and a lever.
- 1/4″ to 2″

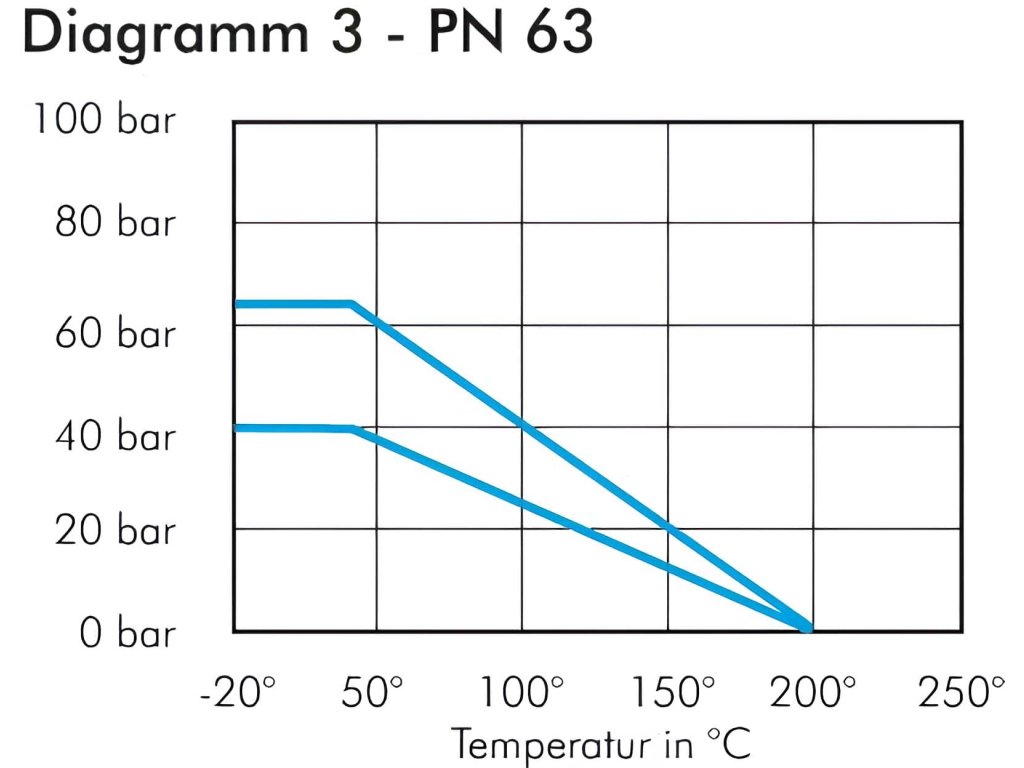

- up to 63 bar and +190 °C
- PTFE ball seal
VL001 — three-piece
Comes apart in three pieces. Stainless steel valve with a three-piece body that can be taken apart, for example for cleaning.
- thread 1/4″ to 3″ (VL001T)
- weld ends DN8 to DN80 (VL001B)
- 1.4408 stainless, up to 63 bar
VL321 — three-way
Switches flow between branches. Stainless steel three-way valve with female threads and an L or T port ball.
- 1/4″ to 2″
- up to 63 bar
- ISO 5211 actuator flange
K806 — stainless, high pressure
Up to 140 bar, also for aggressive media. Three-piece valve in 1.4408 stainless steel with PTFE+CG seals.
- thread 1/4″ to 3″ or weld ends DN8 to DN80
- EN 10204-3.1 certificate
- ISO 5211 actuator flange
K809 — steel, high pressure
Up to 140 bar in carbon steel. Three-piece valve in A350 LF2 steel with PTFE+CG seals.
- thread 1/4″ to 3″ or weld ends DN8 to DN80
- EN 10204-3.1 certificate
- ISO 5211 actuator flange
VL521T — for automation
Ready for a pneumatic or electric actuator. Three-piece stainless steel valve with a female thread and an ISO 5211 flange.
- 1/4″ to 4″
- up to 63 bar
- 1.4408 stainless, PTFE seal
VL851 — flanged
Stainless steel valve with flanges. Two-piece valve with face-to-face length to EN 558-1 and flanges to EN 1092-1.
- DN15 to DN100, PN 16
- ISO 5211 actuator flange
- antistatic VL521FAS: DN15–50, 40 bar
VL140F — wafer type
A short valve between flanges. Stainless steel valve clamped between the pipe flanges.
- DN15 to DN100
- up to 40 bar
- ISO 5211 actuator flange
Looking for a valve with a pneumatic actuator, a large flanged valve or a brass valve? All ball valves and fittings are in one category.
Valves and fittingsEPI valves side by side
| Series, design, connection, material, size and pressure | |||||
|---|---|---|---|---|---|
| Series | Design | Connection | Material | Size | Pressure |
| VL451 | two-way, two-piece | female thread | stainless steel | 1/4″–2″ | 63 bar |
| VL001T / VL001B | two-way, three-piece | female thread / weld ends | 1.4408 stainless | 1/4″–3″ / DN8–80 | 63 bar |
| VL321 | three-way, L or T port | female thread | 1.4408 stainless | 1/4″–2″ | 63 bar |
| K806T / K806W | two-way, three-piece | female thread / weld ends | 1.4408 stainless | 1/4″–3″ / DN8–80 | 68–140 bar |
| K809T / K809W | two-way, three-piece | female thread / weld ends | A350 LF2 steel | 1/4″–3″ / DN8–80 | 68–140 bar |
| VL521T | two-way, three-piece, ISO 5211 | female thread | 1.4408 stainless | 1/4″–4″ | 63 bar |
| VL521FAS | three-piece, antistatic | flanges | 1.4408 stainless | DN15–50 | 40 bar |
| VL851 | two-piece, EN 558-1 | flanges | 1.4408 stainless | DN15–100 | 16 bar |
| VL140F | wafer type, ISO 5211 | between flanges | stainless steel | DN15–100 | 40 bar |
For K806 and K809 valves, 140 bar applies to the smaller sizes, the largest sizes are rated 68 bar. The exact pressure is on the product page.
How to choose an EPI ball valve
1. Connection
For threaded pipe choose a female thread, for welded pipe choose weld ends. Flanged systems need flanged or wafer valves.
2. Pressure
The highest pressure in the system must not exceed the pressure stated for the valve. Above 63 bar, choose the K806 or K809 series.
3. Material
Stainless steel valves suit water, air and aggressive media in chemical and food processing. The carbon steel K809 valves are mainly intended for high pressure.
4. Operation
All valves have a lever. If you want to operate the valve remotely, choose a series with an ISO 5211 flange and add an actuator.
Frequently asked questions
- What does a three-piece valve mean?
- The body consists of three parts bolted together, so the valve can be taken apart, for example for cleaning. Series VL001, K806, K809, VL521T and VL521FAS are three-piece.
- Which EPI valves can take an actuator?
- The series with an ISO 5211 flange: VL321, K806, K809, VL521T, VL851 and VL140F. Ready-made assemblies of these valves with OMAL pneumatic actuators are in the category of valves with pneumatic actuators.
- What is the difference between K806 and K809?
- Both valves are high-pressure, three-piece and come with an EN 10204-3.1 certificate. K806 is made of 1.4408 stainless steel, K809 of A350 LF2 carbon steel.
- What is the antistatic design of VL521FAS?
- The antistatic design to EN 13463-1 conducts static charge from the ball and stem to the valve body. The standard covers equipment for potentially explosive atmospheres.
- How do I know the valve is open?
- On a two-way ball valve the lever shows the flow direction: lever in line with the pipe means open, across the pipe means closed.
EPI is a ball valve brand in our range. You will find the dimensions, pressure and standards of each valve on its product page.
