Pneumatic pedal valves
 |
|
Pedal pneumatic foot valves 3/2 and 5/2 for socket couplings |
||||||
| Valve diagram | Ordering number |
Valve designation | Valve function | Connection | Luminosity DN |
Air flow l/min |
 |
033174 | ACP04132A | 3/2 NO, pedal without lock | couplings 4 mm | 2.5mm | 100 l/min |
 |
033178 | ACP051520 | 5/2, pedal without lock | M5 threads | 2.5mm | 100 l/min |
| - | 033179 | ACP0405P | yellow protective pedal cover | |||
| Please note: ACP valves are supplied without yellow cover - must be ordered separately | ||||||

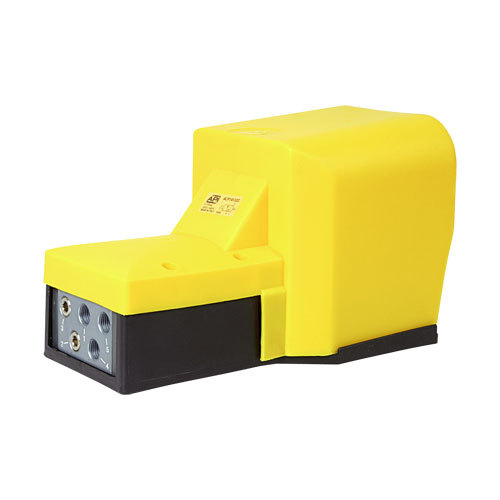

Pedal pneumatic foot valves 3/2 and 5/2 - 1/4" connection |
||||||
| Valve diagram | Ordering number |
Valve designation | Valve function | Connection " |
Luminosity DN |
Air flow l/min |
 |
033127 | AVP230 | 3/2 NC, pedal without lock | 1/4" | 8.5 mm | 1,000 l/min |
 |
033128 | AVP232 | 3/2 NC, locking pedal | 1/4" | 8.5 mm | 1,000 l/min |
 |
033129 | AVP250 | 5/2, pedal without lock | 1/4" | 8.5 mm | 1,000 l/min |
 |
033133 | AVP251 | 5/2, locking pedal | 1/4" | 8.5 mm | 1,000 l/min |
| Please note: AVP valves are supplied with the yellow casing fitted | ||||||
Bestsellers
Product sorting
List of products
Yellow pedal guard for foot valves in 3/2 and 5/2 versions with or without locking, Materials used : plastic
Pedal valve - design 3/2 NO, pedal without locking. Connection with 4 mm socket couplings. Supplied in compact dimensions. The clearance is 2.5 mm and the maximum air flow is...
Pedal valve - design 5/2, pedal without locking. Connection via 1/4" female threads. Supplied with yellow protective cover. The clearance is 8.5 mm and the maximum air flow is...
Pedal valve - design 3/2 NC, pedal with locking. Connection via 1/4" female threads. Supplied with yellow protective cover. The clearance is 8.5 mm and the maximum air flow is...
Pedal valve - design 3/2 NC, pedal without locking. Connection via 1/4" female threads. Supplied with yellow protective cover. The clearance is 8.5 mm and the maximum air flow...
Pedal valve - design 5/2, pedal with locking. Connection via 1/4" female threads. Supplied with yellow protective cover. The clearance is 8.5 mm and the maximum air flow is...
Pedal valve - design 5/2, pedal without locking. Connection with 4 mm socket couplings. Supplied in compact dimensions. The clearance is 2.5 mm and the maximum air flow is 100...
