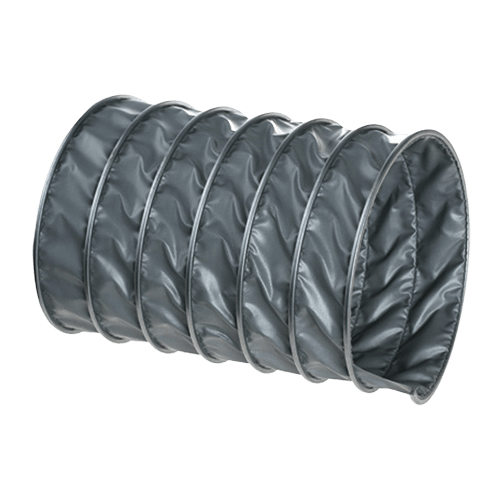

PVC-Weld suction hose with galvanized spiral
 |
|
FoxiMulti PVC-Weld extraction hose for extraction of welding fumes |
|||||||
| Ordering number |
Diameter mm |
Working pressure bar |
Negative pressure kPa |
Bend radius mm |
Temperature °C |
Weight kg/m |
Packaging m |
| FMPW-051 | 51 | 0,500 | 36,5 | 50 | -20/+90 | 0,30 | 3 to 10 |
| FMPW-055 | 55 | 0,489 | 30,3 | 55 | -20/+90 | 0,33 | 3 to 10 |
| FMPW-060 | 60 | 0,441 | 25,6 | 59 | -20/+90 | 0,36 | 3 to 10 |
| FMPW-065 | 65 | 0,401 | 21,9 | 64 | -20/+90 | 0,39 | 3 to 10 |
| FMPW-070 | 70 | 0,366 | 18,9 | 69 | -20/+90 | 0,42 | 3 to 10 |
| FMPW-076 | 76 | 0,337 | 16,5 | 74 | -20/+90 | 0,44 | 3 to 10 |
| FMPW-080 | 80 | 0,312 | 14,6 | 82 | -20/+90 | 0,51 | 3 to 10 |
| FMPW-090 | 90 | 0,271 | 11,6 | 83 | -20/+90 | 0,55 | 3 to 10 |
| FMPW-102 | 102 | 0,239 | 9,4 | 92 | -20/+90 | 0,61 | 3 to 10 |
| FMPW-110 | 110 | 0,213 | 7,8 | 101 | -20/+90 | 0,67 | 3 to 10 |
| FMPW-120 | 120 | 0,192 | 6,6 | 110 | -20/+90 | 0,73 | 3 to 10 |
| FMPW-127 | 127 | 0,183 | 6,1 | 115 | -20/+90 | 0,74 | 3 to 10 |
| FMPW-130 | 130 | 0,174 | 5,7 | 119 | -20/+90 | 0,76 | 3 to 10 |
| FMPW-140 | 140 | 0,160 | 4,9 | 129 | -20/+90 | 0,82 | 3 to 10 |
| FMPW-152 | 152 | 0,147 | 4,3 | 130 | -20/+90 | 0,88 | 3 to 10 |
| FMPW-160 | 160 | 0,136 | 3,8 | 133 | -20/+90 | 0,94 | 3 to 10 |
| FMPW-170 | 170 | 0,126 | 3,4 | 141 | -20/+90 | 0,99 | 3 to 10 |
| FMPW-175 | 175 | 0,122 | 3,2 | 146 | -20/+90 | 1,02 | 3 to 10 |
| FMPW-180 | 180 | 0,118 | 3,0 | 150 | -20/+90 | 1,05 | 3 to 10 |
| FMPW-203 | 203 | 0,104 | 2,4 | 191 | -20/+90 | 1,17 | 3 to 10 |
| FMPW-215 | 215 | 0,095 | 2,1 | 205 | -20/+90 | 1,26 | 3 to 10 |
| FMPW-225 | 225 | 0,090 | 1,9 | 215 | -20/+90 | 1,32 | 3 to 10 |
| FMPW-254 | 254 | 0,080 | 1,6 | 239 | -20/+90 | 1,46 | 3 to 10 |
| FMPW-275 | 275 | 0,071 | 1,3 | 262 | -20/+90 | 1,61 | 3 to 10 |
| FMPW-300 | 300 | 0,064 | 1,1 | 286 | -20/+90 | 1,75 | 3 to 10 |
| FMPW-315 | 315 | 0,060 | 1,0 | 300 | -20/+90 | 1,84 | 3 to 10 |
| FMPW-325 | 325 | 0,058 | 0,9 | 310 | -20/+90 | 1,90 | 3 to 10 |
| FMPW-350 | 350 | 0,053 | 0,8 | 334 | -20/+90 | 2,05 | 3 to 10 |
| FMPW-375 | 375 | 0,049 | 0,4 | 358 | -20/+90 | 2,19 | 3 to 10 |
| FMPW-400 | 400 | 0,045 | 0,3 | 320 | -20/+90 | 2,34 | 3 to 10 |
| FMPW-450 | 450 | 0,039 | 0,5 | 360 | -20/+90 | 2,63 | 3 to 10 |
| FMPW-500 | 500 | 0,035 | 0,4 | 400 | -20/+90 | 2,92 | 3 to 10 |
| FMPW-550 | 550 | 0,031 | 0,3 | 440 | -20/+90 | 3,22 | 3 to 10 |
| FMPW-600 | 600 | 0,028 | 0,3 | 480 | -20/+90 | 3,66 | 3 to 10 |
| FMPW-700 | 700 | 0,023 | 0,2 | 560 | -20/+90 | 4,09 | 3 to 10 |
| FMPW-800 | 800 | 0,020 | 0,2 | 639 | -20/+90 | 4,68 | 3 to 10 |
| FMPW-900 | 900 | 0,017 | 0,1 | 719 | -20/+90 | 5,26 | 3 to 10 |
Product sorting
List of products
Suction hose FoxiMulti PVC-Weld with a diameter of 300 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 120 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld 70 mm diameter suction hose made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying sparks....
FoxiMulti PVC-Weld suction hose with a diameter of 60 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 65 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 80 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 102 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
Suction hose FoxiMulti PVC-Weld with a diameter of 127 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 152 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld 203 mm diameter suction hose made of fibreglass-coated PVC with a spiral of hot-dip galvanised steel strip. Self-extinguishing, resistant to flying sparks....
FoxiMulti PVC-Weld suction hose with a diameter of 254 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 51 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 76 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 110 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
Suction hose FoxiMulti PVC-Weld with a diameter of 130 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 140 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 160 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 170 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 175 mm made of fibreglass-coated PVC with a spiral of hot-dip galvanised steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 180 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 215 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 225 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 275 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 315 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 325 mm made of fibreglass-coated PVC with a spiral of hot-dip galvanised steel strip. Self-extinguishing, resistant to flying...
Suction hose FoxiMulti PVC-Weld with a diameter of 350 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 375 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 400 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 450 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 500 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld 55 mm diameter suction hose made of fibreglass-coated PVC with a spiral of hot-dip galvanised steel strip. Self-extinguishing, resistant to flying sparks....
FoxiMulti PVC-Weld suction hose with a diameter of 550 mm made of fibreglass-coated PVC with a spiral of hot-dip galvanised steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 600 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 700 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 800 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 90 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
FoxiMulti PVC-Weld suction hose with a diameter of 900 mm made of glass fibre coated PVC with a spiral of hot-dip galvanized steel strip. Self-extinguishing, resistant to flying...
