    Home / Valves and fittings / Separate drives / Double-acting actuators

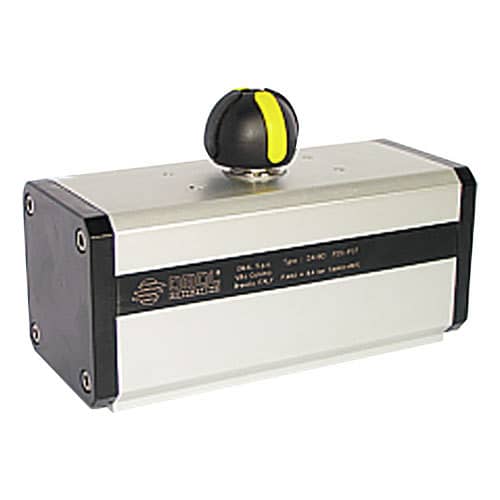

    DAN double-acting pneumatic actuators

    DAN double-acting pneumatic actuators
    • Drive connections meet the requirements of ISO 5211, NAMUR, VDI/VDE 3845
    • Material : anodized aluminium, NBR gasket
    • Pneumatic actuators Omal, type DA in double-acting design are used for closing valves, taps, flaps in the range of 0 - 90°C

    DAN double-acting pneumatic actuators

    Ordering
    number
    Flange
    type
    Quadrilateral
    mm
    Moment
    Nm
    da-actuators-double-acting-pneumatic-actuator
    DA008 F03 9 8
    DAN015 F03 11 15
    DAN030 F03-05 11 30
    DAN045 F03-05 11 45
    DAN060 F03-05 14 60
    DAN120 F05-07 17 120
    DAN180 F07-10 22 180
    DAN240 F07-10 22 240
    DAN360 F07-10 22 360
    DAN480 F10-12 27 480
    DAN720 F10-12 27 720
    DAN960 F10-12 36 960
    DAN1440 F14 36 1 440
    DAN1920 F14 46 1 920

    Bestsellers

    da pohony jednocinne pneupohon

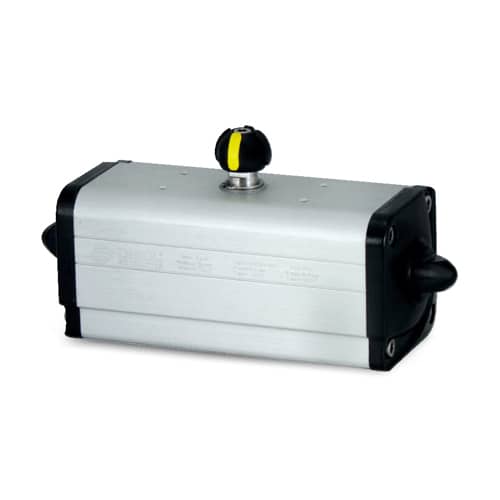

    DAN360 double-acting pneumatic actuator
    up to 14 days
    Code: DAN360

    €728,56
    (€602,12 excl. VAT)
    da pohony jednocinne pneupohon
    DAN180 double-acting pneumatic actuator
    up to 14 days
    Code: DAN180

    €442,40
    (€365,62 excl. VAT)
    da pohony jednocinne pneupohon
    DAN1920 double-acting pneumatic actuator
    up to 14 days
    Code: DAN1920

    €3 079,66
    (€2 545,17 excl. VAT)
    da pohony jednocinne pneupohon
    Double acting pneumatic actuator DAN1440
    up to 14 days
    Code: DAN1440

    €2 278,80
    (€1 883,31 excl. VAT)
    da pohony jednocinne pneupohon
    DAN960 double-acting pneumatic actuator
    up to 14 days
    Code: DAN960

    €1 371,33
    (€1 133,33 excl. VAT)
    da pohony jednocinne pneupohon
    DAN720 double-acting pneumatic actuator
    up to 14 days
    Code: DAN720

    €1 186,28
    (€980,40 excl. VAT)
    da pohony jednocinne pneupohon
    DAN480 double-acting pneumatic actuator
    up to 14 days
    Code: DAN480

    €838,24
    (€692,76 excl. VAT)
    da pohony jednocinne pneupohon
    DAN240 double-acting pneumatic actuator
    up to 14 days
    Code: DAN240

    €590,07
    (€487,66 excl. VAT)
    da pohony jednocinne pneupohon
    DAN120 double-acting pneumatic drive
    up to 14 days
    Code: DAN120

    €371,32
    (€306,88 excl. VAT)
    da pohony jednocinne pneupohon
    DAN106 double-acting pneumatic actuator
    up to 14 days
    Code: DAN106

    €352,33
    (€291,18 excl. VAT)

    Sidebar

    Open filter

    Price

    € 178€ 3080
    0.0409416581783080
    Show filter

    Brands

    Controls

    Design of fittings

    Material

    Pressure

    15 items to display
    Mr. Ventilek

    Ask anything

    I will advise you on the selection
    and tailor-made solution

    +420 311 532 091 (Mon-Fri: 8-16:30) info@kompresory
    -vzduchotechnika.cz
    Contact us

    Product sorting

    15 items total

    List of products

    da pohony jednocinne pneupohon
    DAN106 double-acting pneumatic actuator
    up to 14 days
    €291,18 excl. VAT
    €352,33 / pcs

    double-acting pneumatic actuator DAN connection of actuators using ISO 5211 flanges for F05/07 flange with 17 mm square and 106 Nm torque. Material : anodized aluminium, NBR...

    Code: DAN106
    da pohony jednocinne pneupohon
    DAN120 double-acting pneumatic drive
    up to 14 days
    €306,88 excl. VAT
    €371,32 / pcs

    double-acting pneumatic actuator DAN connection of actuators using ISO 5211 flanges for F05/07 flange with 17 mm square and 120 Nm torque. Material : anodized aluminium, NBR...

    Code: DAN120
    da pohony jednocinne pneupohon
    DAN15 double-acting pneumatic drive
    up to 14 days
    €162,55 excl. VAT
    €196,69 / pcs

    double-acting DAN pneumatic actuator connection using ISO 5211 flanges for F03 flange with 11 mm square and 15 Nm torque. Material : anodized aluminium, NBR gasket. Designed to...

    Code: DAN15
    da pohony jednocinne pneupohon
    DAN180 double-acting pneumatic actuator
    up to 14 days
    €365,62 excl. VAT
    €442,40 / pcs

    double-acting pneumatic actuator DAN connection of actuators using ISO 5211 flanges for F07/10 flange with 22 mm square and 180 Nm torque. Material : anodized aluminium, NBR...

    Code: DAN180
    da pohony jednocinne pneupohon
    DAN1920 double-acting pneumatic actuator
    up to 14 days
    €2 545,17 excl. VAT
    €3 079,66 / pcs

    double-acting pneumatic actuator DAN connection of actuators using ISO 5211 flanges for 46 mm square flange F14 with 1,920 Nm torque. Material : anodized aluminium, NBR gasket....

    Code: DAN1920
    da pohony jednocinne pneupohon
    DAN240 double-acting pneumatic actuator
    up to 14 days
    €487,66 excl. VAT
    €590,07 / pcs

    double-acting pneumatic actuator DAN connection of actuators using ISO 5211 flanges for F07/10 flange with 22 mm square and 240 Nm torque. Material : anodized aluminium, NBR...

    Code: DAN240
    da pohony jednocinne pneupohon
    DAN360 double-acting pneumatic actuator
    up to 14 days
    €602,12 excl. VAT
    €728,56 / pcs

    double-acting pneumatic actuator DAN connection of actuators using ISO 5211 flanges for F07/10 flange with 22 mm square and 360 Nm torque. Material : anodized aluminium, NBR...

    Code: DAN360
    da pohony jednocinne pneupohon
    DAN45 double-acting pneumatic actuator
    up to 14 days
    €201,55 excl. VAT
    €243,87 / pcs

    double-acting DAN pneumatic actuator connection using ISO 5211 flanges for F03/05 flange with 11 mm square and 45 Nm torque. Material : anodized aluminium, NBR gasket. Designed...

    Code: DAN45
    da pohony jednocinne pneupohon
    DAN480 double-acting pneumatic actuator
    up to 14 days
    €692,76 excl. VAT
    €838,24 / pcs

    double-acting pneumatic actuator DAN connection of actuators using ISO 5211 flanges for F10/12 flange with 27 mm square and 480 Nm torque. Material : anodized aluminium, NBR...

    Code: DAN480
    da pohony jednocinne pneupohon
    DAN60 double-acting pneumatic actuator
    up to 14 days
    €229,91 excl. VAT
    €278,19 / pcs

    double-acting pneumatic actuator DAN connection of actuators using ISO 5211 flanges for F05/07 flange with 14 mm square and 60 Nm torque. Material : anodized aluminium, NBR...

    Code: DAN60
    da pohony jednocinne pneupohon
    DAN720 double-acting pneumatic actuator
    up to 14 days
    €980,40 excl. VAT
    €1 186,28 / pcs

    double-acting pneumatic actuator DAN connection of actuators using ISO 5211 flanges for F10/12 flange with 27 mm square and 720 Nm torque. Material : anodized aluminium, NBR...

    Code: DAN720
    da pohony jednocinne pneupohon
    DAN960 double-acting pneumatic actuator
    up to 14 days
    €1 133,33 excl. VAT
    €1 371,33 / pcs

    double-acting pneumatic actuator DAN drive connection using ISO 5211 flanges for F10/12 flange with 36 mm square and 960 Nm torque. Material : anodized aluminium, NBR gasket....

    Code: DAN960
    da pohony jednocinne pneupohon
    Double acting pneumatic actuator DAN1440
    up to 14 days
    €1 883,31 excl. VAT
    €2 278,80 / pcs

    double-acting pneumatic actuator DAN connection of actuators using ISO 5211 flanges for F14 flange with square flange , 36 mm with torque of 1440 Nm. Material : anodized...

    Code: DAN1440
    da pohony jednocinne pneupohon
    Double acting pneumatic actuator DA008
    up to 14 days
    €147,87 excl. VAT
    €178,92 / pcs

    double-acting DAN pneumatic actuator connection using ISO 5211 flanges for F03 flange with 9 mm square and 8 Nm torque. Material : anodized aluminium, NBR gasket. Designed to...

    Code: DA008
    da pohony jednocinne pneupohon
    DAN30 double-acting pneumatic drive
    up to 14 days
    €183,83 excl. VAT
    €222,43 / pcs

    double-acting pneumatic actuator DAN connection of actuators using ISO 5211 flanges for F03/05 flange with 11 mm square and 30 Nm torque. Material : anodized aluminium, NBR...

    Code: DAN30
