Fire hose standard EL
 |
|
Fire hoses EL1 - according to DIN 14811, class 1 L1 |
|||||||||
| Ordering number |
Diameter mm |
Pressure bar | Temperature °C |
Weight kg/m |
Packaging m |
 |
|||
| yardage | with endings | working | defective | ||||||
| EL1-25 | EL1-D25-... | 25 | 16 | 60 | -40/+100 | 0,13 | 100 | ||
| EL1-42 | EL1-C42-... | 42 | 16 | 60 | -40/+100 | 0,22 | 100 | ||
| EL1-52 | EL1-C52-... | 52 | 16 | 60 | -40/+100 | 0,27 | 100 | ||
| EL1-75 | EL1-B75-... | 75 | 16 | 60 | -40/+100 | 0,47 | 100 | ||
| EL1-110 | EL1-A110-... | 110 | 12 | 35 | -40/+100 | 0,75 | 100 | ||
| Please note: when ordering Storz hoses with forged aluminium hose ends, please specify the desired length in the order number instead of the three dots symbol : 5, 10, 15, 20, 25 and 30 metres. | |||||||||
Fire hoses EL2 - according to DIN 14811, class 1 L2 |
|||||||||
| Ordering number |
Diameter mm |
Pressure bar | Temperature °C |
Weight kg/m |
Packaging m |
 |
|||
| yardage | with endings | working | defective | ||||||
| EL2-42 | EL2-C42-... | 42 | 16 | 60 | -40/+100 | 0,21 | 100 | ||
| EL2-52 | EL2-C52-... | 52 | 16 | 60 | -40/+100 | 0,35 | 100 | ||
| EL2-75 | EL2-B75-... | 75 | 16 | 60 | -40/+100 | 0,48 | 100 | ||
| Please note: when ordering Storz hoses with forged aluminium hose ends, please specify the desired length in the order number instead of the three dots symbol : 5, 10, 15, 20, 25 and 30 metres. | |||||||||
Fire hoses EL3 - according to DIN 14811, class 1 L3 |
|||||||||
| Ordering number |
Diameter mm |
Pressure bar | Temperature °C |
Weight kg/m |
Packaging m |
 |
|||
| yardage | with endings | working | defective | ||||||
| EL3-42 | EL3-C42-... | 42 | 16 | 60 | -40/+100 | 0,25 | 100 | ||
| EL3-52 | EL3-C52-... | 52 | 16 | 60 | -40/+100 | 0,33 | 100 | ||
| EL3-75 | EL3-B75-... | 75 | 16 | 60 | -40/+100 | 0,54 | 100 | ||
| Please note: when ordering Storz hoses with forged aluminium hose ends, please specify the desired length in the order number instead of the three dots symbol : 5, 10, 15, 20, 25 and 30 metres. | |||||||||
Product sorting
List of products

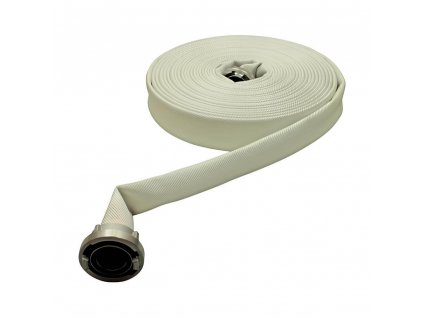

Fire hoses in standard design in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with black EPDM inner...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Fire hoses in standard design in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with black EPDM inner...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L3. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L2. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Fire hoses in standard design in white, certified according to DIN 14811 class 1. Supplied in performance class L2. Made of 100% synthetic polyester yarn with black EPDM inner...
Fire hoses in standard design in white, certified according to DIN 14811 class 1. Supplied in performance class L3. Made of 100% synthetic polyester yarn with black EPDM inner...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L3. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L2. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L2. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L2. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L2. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L2. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L2. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Fire hoses in standard design in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with black EPDM inner...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L2. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L3. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L2. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L2. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L3. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Fire hoses in standard design in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with black EPDM inner...
Fire hoses in standard design in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with black EPDM inner...
Fire hoses in standard design in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with black EPDM inner...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
