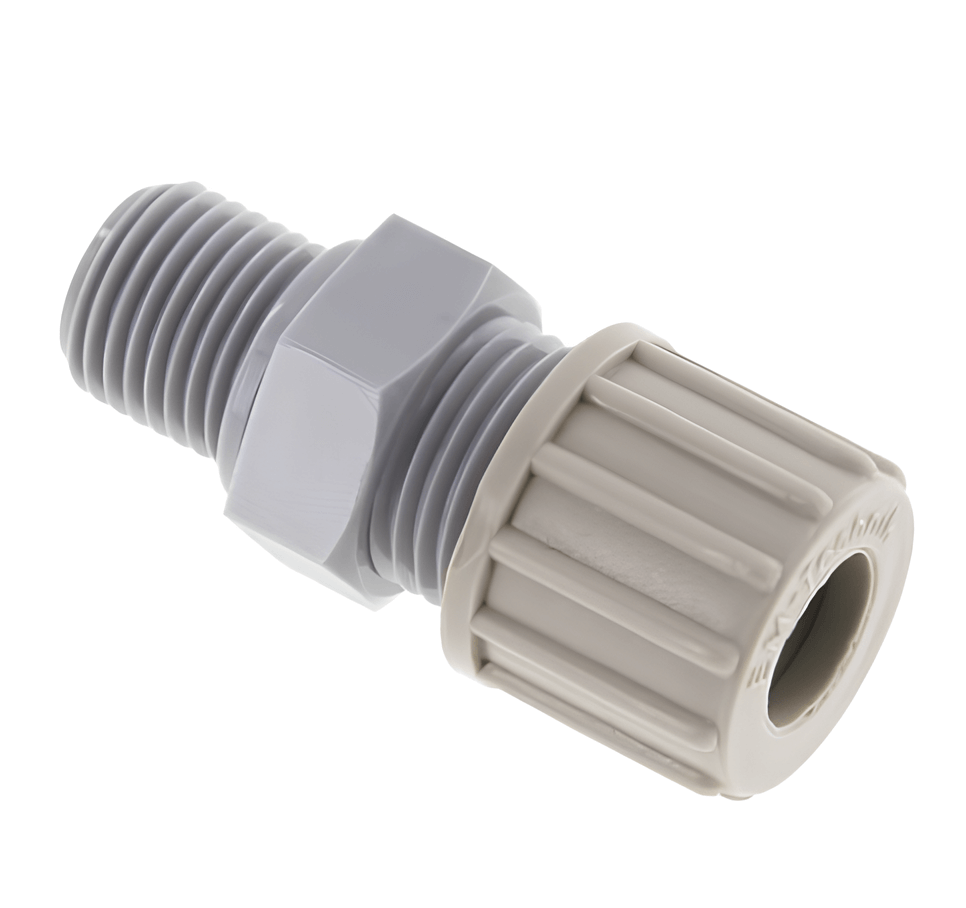

Straight fitting male thread for aggressive media

Přímé šroubení s vnějším závitem pro agresivní médium

fittings to ensure reliable attachment of plastic tubing with aggressive substances and in higher temperature environments
available in 4 material versions with different chemical resistance and working temperature
PA (polyamide) - suitable for air, water, oil with a maximum temperature of +80°C
PP (polypropylene) - suitable for acid, alkali and salt solutions with temperatures up to +90°C
PVDF - resistant to acids, salts, hydrocarbons, alcohols and halogens; for temperatures -40/+140°C
PFA - resistant to almost all chemicals up to +250°C
designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications with high demands on aggressive media

Straight fittings with nut for aggressive media and external pipe thread
Order number				Tube mm	Thread "
PA	PP	PVDF	PFA	Tube mm	Thread "
CKPA-186	CKPP-186	CKPV-186	CKPF-186	6/4 mm	1/8"
CKPA-146	CKPP-146	CKPV-146	CKPF-146	6/4 mm	1/4"
CKPA-386	CKPP-386	CKPV-386	CKPF-386	6/4 mm	3/8"
CKPA-126	CKPP-126	CKPV-126	CKPF-126	6/4 mm	1/2"
CKPA-188	CKPP-188	CKPV-188	CKPF-188	8/6 mm	1/8"
CKPA-148	CKPP-148	CKPV-148	CKPF-148	8/6 mm	1/4"
CKPA-388	CKPP-388	CKPV-388	CKPF-388	8/6 mm	3/8"
CKPA-128	CKPP-128	CKPV-128	CKPF-128	8/6 mm	1/2"
CKPA-1810	CKPP-1810	CKPV-1810	CKPF-1810	10/8 mm	1/8"
CKPA-1410	CKPP-1410	CKPV-1410	CKPF-1410	10/8 mm	1/4"
CKPA-3810	CKPP-3810	CKPV-3810	CKPF-3810	10/8 mm	3/8"
CKPA-1210	CKPP-1210	CKPV-1210	CKPF-1210	10/8 mm	1/2"
CKPA-1412	CKPP-1412	CKPV-1412	CKPF-1412	12/10 mm	1/4"
CKPA-3812	CKPP-3812	CKPV-3812	CKPF-3812	12/10 mm	3/8"
CKPA-1212	CKPP-1212	CKPV-1212	CKPF-1212	12/10 mm	1/2"
CKPA-1414	CKPP-1414	CKPV-1414	-	14/12 mm	1/4"
CKPA-3814	CKPP-3814	CKPV-3814	-	14/12 mm	3/8"
CKPA-1214	CKPP-1214	CKPV-1214	-	14/12 mm	1/2"

250062 1 prima sroubeni s vnejsim zavitem 6 g1 4 pa

€3,44 –9 %

Direct fitting with external thread 6 - G1/4"- PA

()

Code: CKPA-146

Was: €3,44 (–9 %)

€3,10

(€2,56 excl. VAT)

250572 1 prima sroubeni s vnejsim zavitem 8 g1 8 pp

€11,98 –10 %

Direct fitting with external thread 8 - G1/8"- PP

()

Code: CKPP-188

Was: €11,98 (–10 %)

€10,78

(€8,91 excl. VAT)

250545 1 prima sroubeni s vnejsim zavitem 10 g3 8 pa

€8,85 –9 %

Direct fitting with external thread 10 - G3/8" - PA

()

Code: CKPA-3810

Was: €8,85 (–9 %)

€7,97

(€6,59 excl. VAT)

250533 1 prima sroubeni s vnejsim zavitem 8 g3 8 pa

€6,43 –9 %

Direct fitting with external thread 8 - G3/8"- PA

()

Code: CKPA-388

Was: €6,43 (–9 %)

€5,79

(€4,79 excl. VAT)

250521 1 prima sroubeni s vnejsim zavitem 6 g3 8 pa

€5,55 –10 %

Direct fitting with external thread 6 - G3/8"- PA

()

Code: CKPA-386

Was: €5,55 (–10 %)

€4,99

(€4,12 excl. VAT)

250653 1 prima sroubeni s vnejsim zavitem 10 g3 8 pvdf

€51,81 –10 %

Direct fitting with external thread 10 - G3/8" - PVDF

()

Code: CKPV-3810

Was: €51,81 (–10 %)

€46,63

(€38,54 excl. VAT)

250719 1 prima sroubeni s vnejsim zavitem 12 g1 2 pfa

€136,52 –10 %

Direct fitting with external thread 12 - G1/2"- PFA

()

Code: CKPF-1212

Was: €136,52 (–10 %)

€122,86

(€101,54 excl. VAT)

250716 1 prima sroubeni s vnejsim zavitem 10 g1 2 pfa

€112,38 –10 %

Direct fitting with external thread 10 - G1/2"- PFA

()

Code: CKPF-1210

Was: €112,38 (–10 %)

€101,14

(€83,59 excl. VAT)

250713 1 prima sroubeni s vnejsim zavitem 8 g1 2 pfa

€103,99 –10 %

Direct fitting with external thread 8 - G1/2" - PFA

()

Code: CKPF-128

Was: €103,99 (–10 %)

€93,59

(€77,35 excl. VAT)

250710 1 prima sroubeni s vnejsim zavitem 6 g1 2 pfa

€78,74 –9 %

Direct fitting with external thread 6 - G1/2"- PFA

()

Code: CKPF-126

Was: €78,74 (–9 %)

€70,87

(€58,57 excl. VAT)

69 items total

€3,44 –9 %

Direct fitting with external thread 6 - G1/4"- PA

()

€2,56 excl. VAT

€3,10 / pcs

Fittings with overflow nut for aggressive media. Hose diameter 6/4 mm with external pipe thread G1/4". Designed for joints in the chemical, petrochemical and pharmaceutical...

Code: CKPA-146

250530 1 prima sroubeni s vnejsim zavitem 8 g1 4 pa

€5,41 –9 %

Direct fitting with external thread 8 - G1/4"- PA

()

€4,02 excl. VAT

€4,87 / pcs

Fittings with overflow nut for aggressive media. Hose diameter 8/6 mm with external pipe thread G1/4". Designed for joints in the chemical, petrochemical and pharmaceutical...

Code: CKPA-148

250527 1 prima sroubeni s vnejsim zavitem 8 g1 8 pa

€4,73 –9 %

Direct fitting with external thread 8 - G1/8"- PA

()

€3,52 excl. VAT

€4,26 / pcs

Straight design for 8/6 mm hose diameter with 1/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPA-188

€51,81 –10 %

Direct fitting with external thread 10 - G3/8" - PVDF

()

€38,54 excl. VAT

€46,63 / pcs

Straight design for 10/8 mm hose diameter with 3/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPV-3810

250542 1 prima sroubeni s vnejsim zavitem 10 g1 4 pa

€7,94 –9 %

Direct fitting with external thread 10 - G1/4"- PA

()

€5,91 excl. VAT

€7,15 / pcs

Fittings with overflow nut for aggressive media. Hose diameter 10/8 mm with external pipe thread G1/4". Designed for joints in the chemical, petrochemical and pharmaceutical...

Code: CKPA-1410

250578 1 prima sroubeni s vnejsim zavitem 6 g1 4 pp

€7,11 –9 %

Direct fitting with external thread 6 - G1/4"- PP

()

€5,29 excl. VAT

€6,40 / pcs

Fittings with overflow nut for aggressive media. Hose diameter 6/4 mm with external pipe thread G1/4". Designed for joints in the chemical, petrochemical and pharmaceutical...

Code: CKPP-146

250539 1 prima sroubeni s vnejsim zavitem 10 g1 8 pa

€7,27 –10 %

Direct fitting with external thread 10 - G1/8"- PA

()

€5,40 excl. VAT

€6,54 / pcs

Straight design for 10/8 mm tubing diameter with 1/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPA-1810

250524 1 prima sroubeni s vnejsim zavitem 6 g1 2 pa

€7,27 –10 %

Direct fitting with external thread 6 - G1/2"- PA

()

€5,40 excl. VAT

€6,54 / pcs

Direct design for 6/4 mm tubing diameter with 1/2" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPA-126

250611 1 prima sroubeni s vnejsim zavitem 8 g1 2 pp

€20,54 –10 %

Direct fitting with external thread 8 - G1/2"- PP

()

€15,27 excl. VAT

€18,48 / pcs

Direct design for 8/6 mm hose diameter with 1/2" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications with...

Code: CKPP-128

250581 1 prima sroubeni s vnejsim zavitem 8 g1 4 pp

€11,73 –9 %

Direct fitting with external thread 8 - G1/4"- PP

()

€8,73 excl. VAT

€10,56 / pcs

Fittings with overflow nut for aggressive media. Hose diameter 8/6 mm with external pipe thread G1/4". Designed for joints in the chemical, petrochemical and pharmaceutical...

Code: CKPP-148

250551 1 prima sroubeni s vnejsim zavitem 12 g1 4 pa

€16,03 –9 %

Direct fitting with external thread 12 - G1/4"- PA

()

€11,93 excl. VAT

€14,43 / pcs

Fittings with overflow nut for aggressive media. Hose diameter 12/10 mm with external pipe thread G1/4". Designed for joints in the chemical, petrochemical and pharmaceutical...

Code: CKPA-1412

€6,43 –9 %

Direct fitting with external thread 8 - G3/8"- PA

()

€4,79 excl. VAT

€5,79 / pcs

Direct design for 8/6 mm hose diameter with 3/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications with...

Code: CKPA-388

250662 1 prima sroubeni s vnejsim zavitem 6 g1 2 pvdf

€41,77 –10 %

Direct fitting with external thread 6 - G1/2" - PVDF

()

€31,07 excl. VAT

€37,59 / pcs

Direct design for 6/4 mm tubing diameter with 1/2" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPV-126

250593 1 prima sroubeni s vnejsim zavitem 6 g3 8 pp

€14,77 –9 %

Direct fitting with external thread 6 - G3/8"- PP

()

€10,99 excl. VAT

€13,30 / pcs

Straight design for 6/4 mm hose diameter with 3/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPP-386

250632 1 prima sroubeni s vnejsim zavitem 6 g1 4 pvdf

€26,64 –9 %

Direct fitting with external thread 6 - G1/4"- PVDF

()

€19,82 excl. VAT

€23,98 / pcs

Fittings with overflow nut for aggressive media. Hose diameter 6/4 mm with external pipe thread G1/4". Designed for joints in the chemical, petrochemical and pharmaceutical...

Code: CKPV-146

250692 1 prima sroubeni s vnejsim zavitem 10 g1 4 pp

€16,47 –10 %

Direct fitting with external thread 10 - G1/4"- PP

()

€12,25 excl. VAT

€14,82 / pcs

Fittings with overflow nut for aggressive media. Hose diameter 10/8 mm with external pipe thread G1/4". Designed for joints in the chemical, petrochemical and pharmaceutical...

Code: CKPP-1410

250575 1 prima sroubeni s vnejsim zavitem 10 g1 8 pp

€17,04 –10 %

Direct fitting with external thread 10 - G1/8"- PP

()

€12,67 excl. VAT

€15,33 / pcs

Straight design for 10/8 mm tubing diameter with 1/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPP-1810

250608 1 prima sroubeni s vnejsim zavitem 6 g1 2 pp

€17,73 –9 %

Direct fitting with external thread 6 - G1/2"- PP

()

€13,19 excl. VAT

€15,96 / pcs

Direct design for 6/4 mm tubing diameter with 1/2" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPP-126

250623 prima sroubeni s vnejsim zavitem 6 g1 8 pvdf

€16,03 –9 %

Direct fitting with external thread 6 - G1/8" - PVDF

()

€11,93 excl. VAT

€14,43 / pcs

Straight design for 6/4 mm tubing diameter with 1/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPV-186

250587 1 prima sroubeni s vnejsim zavitem 12 g1 4 pp

€32,05 –9 %

Direct fitting with external thread 12 - G1/4"- PP

()

€23,84 excl. VAT

€28,85 / pcs

Fittings with overflow nut for aggressive media. Hose diameter 12/10 mm with external pipe thread G1/4". Designed for joints in the chemical, petrochemical and pharmaceutical...

Code: CKPP-1412

250590 1 prima sroubeni s vnejsim zavitem 14 g1 4 pp

€32,05 –9 %

Direct fitting with external thread 14 - G1/4"- PP

()

€23,84 excl. VAT

€28,85 / pcs

Fittings with overflow nut for aggressive media. Hose diameter 14/12 mm with external pipe thread G1/4". Designed for joints in the chemical, petrochemical and pharmaceutical...

Code: CKPP-1414

250668 1 prima sroubeni s vnejsim zavitem 10 g1 2 pvdf

€72,99 –10 %

Direct fitting with external thread 10 - G1/2" - PVDF

()

€54,29 excl. VAT

€65,69 / pcs

Direct design for 10/8 mm tubing diameter with 1/2" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPV-1210

€78,74 –9 %

Direct fitting with external thread 6 - G1/2"- PFA

()

€58,57 excl. VAT

€70,87 / pcs

Direct design for 6/4 mm tubing diameter with 1/2" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPF-126

250557 1 prima sroubeni s vnejsim zavitem 12 g1 2 pa

€16,45 –10 %

Direct fitting with external thread 12 - G1/2"- PA

()

€12,23 excl. VAT

€14,80 / pcs

Direct design for 12/10 mm tubing diameter with 1/2" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPA-1212

250554 1 prima sroubeni s vnejsim zavitem 12 g3 8 pa

€15,39 –10 %

Direct fitting with external thread 12 - G3/8"- PA

()

€11,45 excl. VAT

€13,85 / pcs

Direct design for 12/10 mm hose diameter with 3/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPA-3812

250680 1 prima sroubeni s vnejsim zavitem 8 g1 8 pfa

€59,07 –9 %

Direct fitting with external thread 8 - G1/8"- PFA

()

€43,94 excl. VAT

€53,17 / pcs

Straight design for 8/6 mm hose diameter with 1/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPF-188

250638 1 prima sroubeni s vnejsim zavitem 10 g1 4 pvdf

€42,63 –10 %

Direct fitting with external thread 10 - G1/4" - PVDF

()

€31,70 excl. VAT

€38,36 / pcs

Fittings with overflow nut for aggressive media. Hose diameter 10/8 mm with external pipe thread G1/4". Designed for joints in the chemical, petrochemical and pharmaceutical...

Code: CKPV-1410

250560 1 prima sroubeni s vnejsim zavitem 14 g1 4 pa

€32,41 –10 %

Direct fitting with external thread 14 - G1/4"- PA

()

€24,11 excl. VAT

€29,17 / pcs

Fittings with overflow nut for aggressive media. Hose diameter 14/12 mm with external pipe thread G1/4". Designed for joints in the chemical, petrochemical and pharmaceutical...

Code: CKPA-1414

250584 1 prima sroubeni s vnejsim zavitem 10 g1 4 pfa

€70,77 –10 %

Direct fitting with external thread 10 - G1/4"- PFA

()

€52,64 excl. VAT

€63,69 / pcs

Fittings with overflow nut for aggressive media. Hose diameter 10/8 mm with external pipe thread G1/4". Designed for joints in the chemical, petrochemical and pharmaceutical...

Code: CKPF-1410

250677 1 prima sroubeni s vnejsim zavitem 6 g1 8 pfa

€30,92 –9 %

Direct fitting with external thread - 6 - G1/8"- PFA

()

€23 excl. VAT

€27,83 / pcs

Straight design for 6/4 mm tubing diameter with 1/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPF-186

250626 1 prima sroubeni s vnejsim zavitem 8 g1 8 pvdf

€30,89 –10 %

Direct fitting with external thread 8 - G1/8"- PVDF

()

€22,98 excl. VAT

€27,80 / pcs

Straight design for 8/6 mm hose diameter with 1/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPV-188

€8,85 –9 %

Direct fitting with external thread 10 - G3/8" - PA

()

€6,59 excl. VAT

€7,97 / pcs

Straight design for 10/8 mm hose diameter with 3/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPA-3810

€112,38 –10 %

Direct fitting with external thread 10 - G1/2"- PFA

()

€83,59 excl. VAT

€101,14 / pcs

Direct design for 10/8 mm tubing diameter with 1/2" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPF-1210

€136,52 –10 %

Direct fitting with external thread 12 - G1/2"- PFA

()

€101,54 excl. VAT

€122,86 / pcs

Direct design for 12/10 mm tubing diameter with 1/2" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPF-1212

250707 1 prima sroubeni s vnejsim zavitem 12 g3 8 pfa

€100,05 –10 %

Direct fitting with external thread 12 - G3/8"- PFA

()

€74,42 excl. VAT

€90,05 / pcs

Direct design for 12/10 mm hose diameter with 3/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPF-3812

€103,99 –10 %

Direct fitting with external thread 8 - G1/2" - PFA

()

€77,35 excl. VAT

€93,59 / pcs

Direct design for 8/6 mm hose diameter with 1/2" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications with...

Code: CKPF-128

250536 1 prima sroubeni s vnejsim zavitem 8 g1 2 pa

€8,83 –9 %

Direct fitting with external thread 8 - G1/2"- PA

()

€6,57 excl. VAT

€7,95 / pcs

Direct design for 8/6 mm hose diameter with 1/2" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications with...

Code: CKPA-128

250596 1 prima sroubeni s vnejsim zavitem 8 g3 8 pp

€23,69 –10 %

Direct fitting with external thread 8 - G3/8"- PP

()

€17,62 excl. VAT

€21,32 / pcs

Direct design for 8/6 mm hose diameter with 3/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications with...

Code: CKPP-388

250629 1 prima sroubeni s vnejsim zavitem 10 g1 8 pvdf

€41,63 –9 %

Direct fitting with external thread 10 - G1/8" - PVDF

()

€30,97 excl. VAT

€37,47 / pcs

Straight design for 10/8 mm tubing diameter with 1/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPV-1810

250647 1 prima sroubeni s vnejsim zavitem 6 g3 8 pvdf

€39,50 –10 %

Direct fitting with external thread 6 - G3/8"- PVDF

()

€29,38 excl. VAT

€35,55 / pcs

Straight design for 6/4 mm hose diameter with 3/8" male pipe thread. Designed for joints in the chemical, petrochemical and pharmaceutical industries and for all applications...

Code: CKPV-386

69 items total

Top

Straight fitting male thread for aggressive media

Straight fittings with nut for aggressive media and external pipe thread

Bestsellers

Brands

A tube

In stock

Material

Pressure

Thread

Useful Information

contact us

Brick and mortar store

Why shop with us?

News Overload

We select articles from our advice room

Straight fitting male thread for aggressive media

Straight fittings with nut for aggressive media and external pipe thread

Bestsellers

Product sorting

List of products

Listing controls

News Overload

We select articles from our advice room
