V101 straight taps with pneumatic actuator
- Ball valve assembly with internal threads - type V101
- OMAL pneumatic actuator (double-acting DA or single-acting SR version)
- Drive control pressure of at least 5.5 bar
- For sealing of pipelines of non-aggressive media (water, air, etc.) in industry

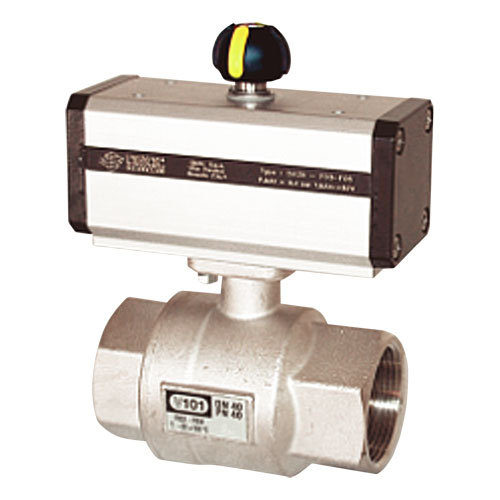

Ball valves V101 with double-acting pneumatic actuator DA |
||||||||
| Ordering number |
Thread " |
Luminosity DN |
Pressure bar |
Temperature °C |
Body | Seals | Double acting drive |
 |
| V101-38DA | 3/8" | 10 | 64 | up to +120 | brass | PTFE | DA08 | |
| V101-12DA | 1/2" | 15 | 64 | up to +120 | brass | PTFE | DA08 | |
| V101-34DA | 3/4" | 20 | 50 | up to +120 | brass | PTFE | DA15 | |
| V101-10DA | 1" | 25 | 50 | up to +120 | brass | PTFE | DA15 | |
| V101-54DA | 1 1/4" | 32 | 40 | up to +120 | brass | PTFE | DA30 | |
| V101-15DA | 1 1/2" | 40 | 40 | up to +120 | brass | PTFE | DA30 | |
| V101-20DA | 2" | 50 | 32 | up to +120 | brass | PTFE | DA45 | |
| V101-25DA | 2 1/2" | 65 | 25 | up to +120 | brass | PTFE | DA90 | |
| V101-30DA | 3" | 80 | 25 | up to +120 | brass | PTFE | DA120 | |

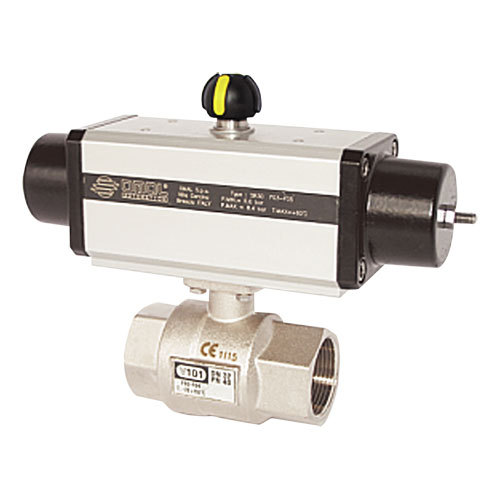

Ball valves V101 with single-acting pneumatic actuator SR |
||||||||
| Ordering number |
Thread " |
Lightness DN |
Pressure bar |
Temperature °C |
Body | Seals | Single-acting drive |
 |
| V101-38SR | 3/8" | 10 | 64 | up to +120 | brass | PTFE | SR15 | |
| V101-12SR | 1/2" | 15 | 64 | up to +120 | brass | PTFE | SR15 | |
| V101-34SR | 3/4" | 20 | 50 | up to +120 | brass | PTFE | RS15 | |
| V101-10SR | 1" | 25 | 50 | up to +120 | brass | PTFE | SR15 | |
| V101-54SR | 1 1/4" | 32 | 40 | up to +120 | brass | PTFE | SR30 | |
| V101-15SR | 1 1/2" | 40 | 40 | up to +120 | brass | PTFE | SR30 | |
| V101-20SR | 2" | 50 | 32 | up to +120 | brass | PTFE | SR45 | |
| V101-25SR | 2 1/2" | 65 | 25 | up to +120 | brass | PTFE | SR90 | |
| V101-30SR | 3" | 80 | 25 | up to +120 | brass | PTFE | SR120 | |
Product sorting
List of products

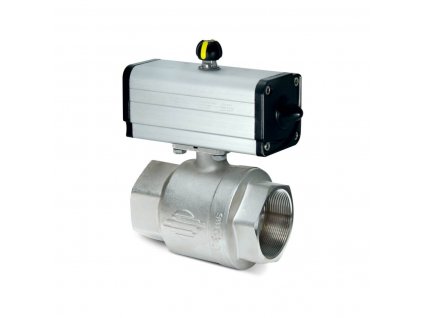

Direct ball valve V101 with 3/4" thread connection and pneumatic double-acting actuator DA08 operated by compressed air. Drive control pressure of at least 5.5 bar. For sealing...
Direct ball valve V101 with 3/8" thread connection and pneumatic double-acting actuator DA08 operated by compressed air. Drive control pressure of at least 5.5 bar. For sealing...
Direct ball valve V101 with 1" threaded connection and pneumatic double-acting actuator DA15 operated by compressed air. Drive control pressure of at least 5.5 bar. For sealing...
Direct ball valve V101 with 3/8" threaded connection and pneumatic double-acting actuator DA15 operated by compressed air. Drive control pressure of at least 5.5 bar. For...
Direct ball valve V101 with 2" thread connection and pneumatic double-acting actuator DA45 operated by compressed air. Drive control pressure of at least 5.5 bar. For sealing of...
Direct ball valve V101 with 3" thread connection and pneumatic double-acting actuator DA120 operated by compressed air. Drive control pressure of at least 5.5 bar. For sealing...

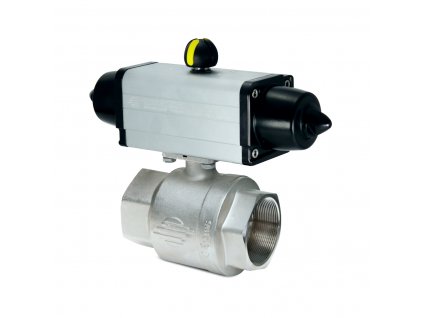

Direct ball valve V101 with 2" threaded connection and pneumatic single-acting SR45 actuator operated by compressed air. Drive control pressure of at least 5.5 bar. For sealing...
Direct ball valve V101 with 3/8" thread connection and pneumatic single-acting actuator SR15 operated by compressed air. Drive control pressure of at least 5.5 bar. For sealing...
Direct ball valve V101 with 1" thread connection and pneumatic single-acting actuator SR15 operated by compressed air. Drive control pressure of at least 5.5 bar. For sealing of...
Direct ball valve V101 with 1/2" thread connection and pneumatic single-acting actuator SR15 operated by compressed air. Drive control pressure of at least 5.5 bar. For sealing...
Direct ball valve V101 with 3" thread connection and pneumatic single-acting actuator SR120 operated by compressed air. Drive control pressure of at least 5.5 bar. For sealing...
Direct ball valve V101 with 3/4" thread connection and pneumatic single-acting actuator SR15 operated by compressed air. Drive control pressure of at least 5.5 bar. For sealing...
Direct ball valve V101 with 2 1/2" thread connection and pneumatic double-acting actuator DA90 operated by compressed air. Drive control pressure of at least 5.5 bar. For...
Direct ball valve V101 with 1 1/2" thread connection and pneumatic double-acting actuator DA30 operated by compressed air. Drive control pressure of at least 5.5 bar. For...
Direct ball valve V101 with 1 1/4" thread connection and pneumatic double-acting actuator DA30 operated by compressed air. Drive control pressure of at least 5.5 bar. For...
Direct ball valve V101 with 1 1/2" threaded connection and pneumatic single-acting SR30 actuator operated by compressed air. Drive control pressure of at least 5.5 bar. For...
Direct ball valve V101 with 2 1/2" threaded connection and pneumatic single-acting SR90 actuator operated by compressed air. Drive control pressure of at least 5.5 bar. For...
Direct ball valve V101 with 1 1/4" threaded connection and pneumatic single-acting SR30 actuator operated by compressed air. Drive control pressure of at least 5.5 bar. For...
