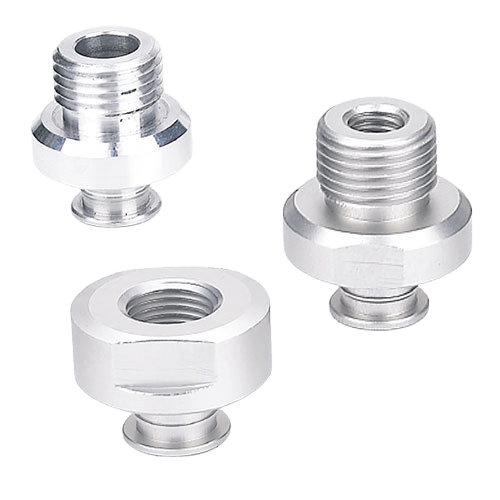

Vacuum connection fittings SB, SBL, SF, SU
 |
|
Fittings for vacuum suction cups without strainer |
||||||
| Ordering number |
Thread outer |
Thread internal |
Mandrel for suction cup | |||
| SB | SBL | SF | SU | |||
| VS-M25A-2 | M2.5 | - | - | - | - | SU2 |
| VS-M5A-2 | M5 | - | - | - | - | SU2 |
| VS-M5A-4 | M5 | - | SB5, SB8 | - | - | SU4, SU6, SU8 |
| VS-M5A-10 | M5 | - | SB10, SB12, SB15 | SBL15 | SF15 | SU10, SU15 |
| VS-18A-20 | 1/8" | M5 | SB17, SB20 | SBL20 | SF20, SF25, SF30 | SU20, SU25, SU30 |
| VS-18I-20 | - | 1/8" | SB17, SB20 | SBL20 | SF20, SF25, SF30 | SU20, SU25, SU30 |
| VS-18I-40 | - | 1/8" | SB30, SB40 | SBL30, SBL40 | SF40 | SU40 |
| VS-18A-40 | 1/8" | - | SB30, SB40 | SBL30, SBL40 | SF40 | SU40 |
| VS-14A-40 | 1/4" | - | SB30, SB40 | SBL30, SBL40 | SF40 | SU40 |
| VS-18I-50 | - | 1/8" | SB50 | SBL50 | SF50 | SU50 |
| VS-14A-50 | 1/4" | - | SB50 | SBL50 | SF50 | SU50 |
| VS-38A-50 | 3/8" | - | SB50 | SBL50 | SF50 | SU50 |
| VS-18I-75 | - | 1/8" | SB75 | - | SF75, SF90 | - |
| VS-14I-75 | - | 1/4" | SB75 | - | SF75, SF90 | - |
| VS-38I-75 | - | 3/8" | SB75 | - | SF75, SF90 | - |
| VS-12I-75 | - | 1/2" | SB75 | - | SF75, SF90 | - |
| VS-12I-110 | - | 1/2" | SB110 | - | SF110 | - |
| VS-12I-150 | - | 1/2" | SB150 | - | SF150 | - |
| VS-12I-200 | - | 1/2" | - | - | SF200 | - |
Fittings for vacuum suction cups - with filter screen |
||||||
| Ordering number |
Thread external |
Thread internal |
Mandrel for suction cup | |||
| SB | SBL | SF | SU | |||
| VSF-18A-20 | 1/8" | M5 | SB17, SB20 | SBL20 | SF20, SF25, SF30 | SU20, SU25, SU30 |
| VSF-18I-20 | - | 1/8" | SB17, SB20 | SBL20 | SF20, SF25, SF30 | SU20, SU25, SU30 |
| VSF-18I-40 | - | 1/8" | SB30, SB40 | SBL30, SBL40 | SF40 | SU40 |
| VSF-18A-40 | 1/8" | - | SB30, SB40 | SBL30, SBL40 | SF40 | SU40 |
| VSF-14A-40 | 1/4" | - | SB30, SB40 | SBL30, SBL40 | SF40 | SU40 |
| VSF-18I-50 | - | 1/8" | SB50 | SBL50 | SF50 | SU50 |
| VSF-14A-50 | 1/4" | - | SB50 | SBL50 | SF50 | SU50 |
| VSF-38A-50 | 3/8" | - | SB50 | SBL50 | SF50 | SU50 |
Product sorting
List of products
Connection fitting for suction cups with external thread G1/8" and internal thread M5. Designed for suction cups: SB17, SB20, , SBL20, SF20, SF25, SF30, SU20, SU25, SU 30.
Connection fitting for suction cups with external thread M5. Designed for suction cups: SB5, SB8, SU4, SU6, SU8
Connection fitting for suction cups with external thread M5. Designed for suction cups: SB10, SB12, SB15, SBL15, SF15, SU10, SU15.
Connection fitting for suction cups with external thread M2,5. Designed for suction cups: SU2
Connection fitting for suction cups with external thread M5. Designed for suction cups: SU2
Connection fitting for suction cups with internal thread G1/8". Designed for suction cups: SB30, SB40, SBL30, SBL40, SF40, SU40.
Connection fitting for suction cups with filter screen and internal thread G1/8". Designed for suction cups: SB17, SB20, SBL20, SF20, SF25, SF30, SU20, SU25, SU30
Connection fitting for suction cups with external thread G1/8". Designed for suction cups: SB30, SB40, SBL30, SBL40, SF40, SU40.
Connection fitting for suction cups with filter screen and external thread G1/8" and internal thread M5. Designed for suction cups: SB17, SB20, SBL20, SF20, SF25, SF30, SU20,...
Connection fitting for suction cups with internal thread G1/8". Designed for suction cups: SB17, SB20, , SBL20, SF20, SF25, SF30, SU20, SU25, SU 30.
Connection fitting for suction cups with external thread G1/4". Designed for suction cups: SB50, SBL50, SF50, SU50.
Connection fitting for suction cups with internal thread G1/8". Designed for suction cups: SB50, SBL50, SF50, SU50.
Connection fitting for suction cups with filter screen and external thread G1/8". Designed for suction cups: SB30, SB40, SBL30, SBL40, SF40, SU40.
Connection fitting for suction cups with filter screen and internal thread G1/8". Designed for suction cups: SB30, SB40, SBL30, SBL40, SF40, SU40.
Connection fitting for suction cups with external thread G1/4". Designed for suction cups: SB30, SB40, SBL30, SBL40, SF40, SU40.
Connection fitting for suction cups with filter screen and external thread G3/8". Designed for suction cups: SB50, SBL50, SF50, SU50.
Connection fitting for suction cups with filter screen and external thread G1/4". Designed for suction cups: SB30, SB40, SBL30, SBL40, SF40, SU40.
Connection fitting for suction cups with filter screen and external thread G1/4". Designed for suction cups: SB50, SBL50, SF50, SU50.
Connection fitting for suction cups with external thread G3/8". Designed for suction cups: SB50, SBL50, SF50, SU50.
Grommet for suction cup connection with connection threads internal G1/8" and external G1/8". Body thread M14x1.
Grommet for suction cup connection with connection threads internal G1/8" and external G1/8". Body thread M16x1.
Connection fitting for suction cups with internal thread G1/2". Designed for suction cups: SB75, SF75, SF90.
Connection fitting for suction cups with internal thread G1/4". Designed for suction cups: SB75, SF75, SF90.
Connection fitting for suction cups with internal thread G1/8". Designed for suction cups: SB75, SF75, SF90.
Connection fitting for suction cups with internal thread G3/8". Designed for suction cups: SB75, SF75, SF90.
Connection fitting for suction cups with internal thread G1/2". Designed for suction cups: SB110, SF110.
Swivel fitting with female thread G1/2", swivel angle +/-12°.
Connection fitting for suction cups with internal thread G1/2". Designed for suction cups: SB150, SF150.
Grommet for suction cup connection with two M5 internal threads. Body thread G1/8".
Grommet for suction cup connection with connection threads internal M5 and external G1/8". Body thread M12x1.
Connection fitting for suction cups with filter screen and internal thread G1/8". Designed for suction cups: SB50, SBL50, SF50, SU50.
Swivel fitting with female thread G1/8", swivel angle +/-12°.
Connection fitting for suction cups with internal thread G1/2". Designed for suction cups: SF200.
