PF flange filters for pipelines
 |
|

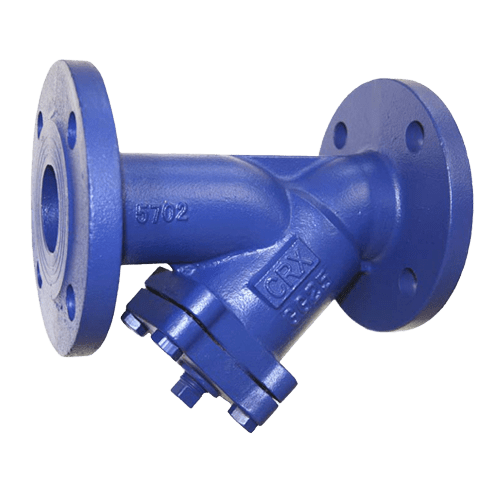

PF flange filters made of cast iron for pipelines |
|||||
| Ordering number |
Luminosity DN |
Pressure bar |
Temperature °C |
Material bodies |
Material seal |
| PFG-015 | 15 | 16 | up to +120°C | cast iron GG25 | PTFE |
| PFG-020 | 20 | 16 | up to +120°C | cast iron GG25 | PTFE |
| PFG-025 | 25 | 16 | up to +120°C | cast iron GG25 | PTFE |
| PFG-032 | 32 | 16 | up to +120°C | cast iron GG25 | PTFE |
| PFG-040 | 40 | 16 | up to +120°C | cast iron GG25 | PTFE |
| PFG-050 | 50 | 16 | up to +120°C | cast iron GG25 | PTFE |
| PFG-065 | 65 | 16 | up to +120°C | cast iron GG25 | PTFE |
| PFG-080 | 80 | 16 | up to +120°C | cast iron GG25 | PTFE |
| PFG-100 | 100 | 16 | up to +120°C | cast iron GG25 | PTFE |
| PFG-125 | 125 | 16 | up to +120°C | cast iron GG25 | PTFE |
| PFG-150 | 150 | 16 | up to +120°C | cast iron GG25 | PTFE |
| PFG-200 | 200 | 16 | up to +120°C | cast iron GG25 | PTFE |
| PFG-250 | 250 | 16 | up to +120°C | cast iron GG25 | PTFE |
| PFG-300 | 300 | 16 | up to +120°C | cast iron GG25 | PTFE |
PF carbon steel flange filters for pipelines |
|||||
| Ordering number |
Luminosity DN |
Pressure bar |
Temperature °C |
Material bodies |
Material seal |
| PFC-015 | 15 | 40 | up to +400°C | steel DIN 1.0619 | graphite |
| PFC-020 | 20 | 40 | up to +400°C | steel DIN 1.0619 | graphite |
| PFC-025 | 25 | 40 | up to +400°C | steel DIN 1.0619 | graphite |
| PFC-032 | 32 | 40 | up to +400°C | steel DIN 1.0619 | graphite |
| PFC-040 | 40 | 40 | up to +400°C | steel DIN 1.0619 | graphite |
| PFC-050 | 50 | 40 | up to +400°C | steel DIN 1.0619 | graphite |
| PFC-065 | 65 | 40 | up to +400°C | steel DIN 1.0619 | graphite |
| PFC-080 | 80 | 40 | up to +400°C | steel DIN 1.0619 | graphite |
| PFC-100 | 100 | 40 | up to +400°C | steel DIN 1.0619 | graphite |
| PFC-125 | 125 | 40 | up to +400°C | steel DIN 1.0619 | graphite |
| PFC-150 | 150 | 40 | up to +400°C | steel DIN 1.0619 | graphite |
| PFC-200 | 200 | 40 | up to +400°C | steel DIN 1.0619 | graphite |
PF stainless steel flange filters for piping |
|||||
| Ordering number |
Luminosity DN |
Pressure bar |
Temperature °C |
Material bodies |
Material seal |
| PFX-015 | 15 | 16 | up to +180°C | stainless steel DIN 1.4408 | PTFE |
| PFX-020 | 20 | 16 | up to +180°C | stainless steel DIN 1.4408 | PTFE |
| PFX-025 | 25 | 16 | up to +180°C | stainless steel DIN 1.4408 | PTFE |
| PFX-032 | 32 | 16 | up to +180°C | stainless steel DIN 1.4408 | PTFE |
| PFX-040 | 40 | 16 | up to +180°C | stainless steel DIN 1.4408 | PTFE |
| PFX-050 | 50 | 16 | up to +180°C | stainless steel DIN 1.4408 | PTFE |
| PFX-065 | 65 | 16 | up to +180°C | stainless steel DIN 1.4408 | PTFE |
| PFX-080 | 80 | 16 | up to +180°C | stainless steel DIN 1.4408 | PTFE |
| PFX-100 | 100 | 16 | up to +180°C | stainless steel DIN 1.4408 | PTFE |
| PFX-125 | 125 | 16 | up to +180°C | stainless steel DIN 1.4408 | PTFE |
| PFX-150 | 150 | 16 | up to +180°C | stainless steel DIN 1.4408 | PTFE |
| PFX-200 | 200 | 16 | up to +180°C | stainless steel DIN 1.4408 | PTFE |
Product sorting
List of products
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 20, working pressure 16 bar. Sloped strainer for quick change without...
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 15, working pressure 16 bar. Sloped strainer for quick change without...
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 25, working pressure 16 bar. Sloped strainer for quick change without...
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 32, working pressure 16 bar. Sloped strainer for quick change without...
PFC flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 200, working pressure 40 bar. Sloped strainer for quick change without...
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 100, working pressure 16 bar. Sloped strainer for quick change without...
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 125, working pressure 16 bar. Sloped strainer for quick change without...
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 150, working pressure 16 bar. Sloped strainer for quick change without...
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 200, working pressure 16 bar. Sloped strainer for quick change without...
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 250, working pressure 16 bar. Sloped strainer for quick change without...
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 300, working pressure 16 bar. Sloped strainer for quick change without...
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 40, working pressure 16 bar. Sloped strainer for quick change without...
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 50, working pressure 16 bar. Sloped strainer for quick change without...
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 65, working pressure 16 bar. Sloped strainer for quick change without...
PFG flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 80, working pressure 16 bar. Sloped strainer for quick change without...
PFX flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 100, working pressure 16 bar. Sloped strainer for quick change without...
PFX flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 32, working pressure 16 bar. Sloped strainer for quick change without...
PFC flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 100, working pressure 40 bar. Sloped strainer for quick change without...
PFC flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 125, working pressure 40 bar. Sloped strainer for quick change without...
PFC flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 15, working pressure 40 bar. Sloped strainer for quick change without...
PFC flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 150, working pressure 40 bar. Sloped strainer for quick change without...
PFC flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 20, working pressure 40 bar. Sloped strainer for quick change without...
PFC flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 25, working pressure 40 bar. Sloped strainer for quick change without...
PFC flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 32, working pressure 40 bar. Sloped strainer for quick change without...
PFC flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 40, working pressure 40 bar. Sloped strainer for quick change without...
PFC flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 50, working pressure 40 bar. Sloped strainer for quick change without...
PFC flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 65, working pressure 40 bar. Sloped strainer for quick change without...
PFC flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 80, working pressure 40 bar. Sloped strainer for quick change without...
PFX flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 15, working pressure 16 bar. Sloped strainer for quick change without...
PFX flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 20, working pressure 16 bar. Sloped strainer for quick change without...
PFX flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 25, working pressure 16 bar. Sloped strainer for quick change without...
PFX flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 40, working pressure 16 bar. Sloped strainer for quick change without...
PFX flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 50, working pressure 16 bar. Sloped strainer for quick change without...
PFX flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 65, working pressure 16 bar. Sloped strainer for quick change without...
PFX flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 80, working pressure 16 bar. Sloped strainer for quick change without...
PFX flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 200, working pressure 16 bar. Sloped strainer for quick change without...
PFX flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 125, working pressure 16 bar. Sloped strainer for quick change without...
PFX flange filters for basic media filtration. Flanges according to EN 1092-1 type B. Line clearance DN 150, working pressure 16 bar. Sloped strainer for quick change without...
