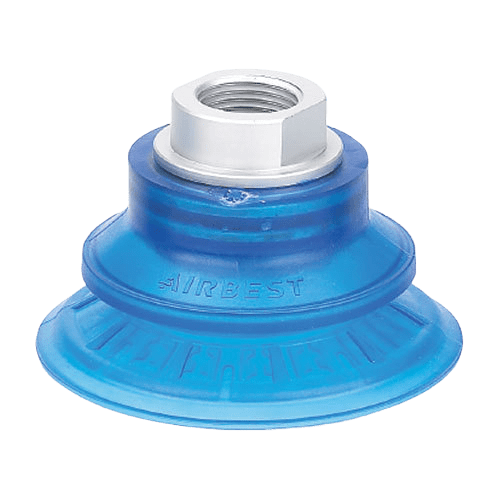

SBF vacuum suction cups with internal thread
 |
|
SBF vacuum suction cups with internal thread |
|||||||||
| Order number |
Diameter mm |
Thread " |
Height mm |
Bellows diameter mm |
Volume cm³ |
Vertical Force N | |||
| - 20 kPa | - 60 kPa | - 90 kPa | |||||||
| SBF30-PU-18F | 32 | 1/8" | 28 | 32 | 6 | 11,0 | 60,2 | 91,0 | |
| SBF30-PU-14F | 32 | 1/4" | 28 | 32 | 6 | 11,0 | 60,2 | 91,0 | |
| SBF30-PU-38F | 32 | 3/8" | 44 | 32 | 6 | 11,0 | 60,2 | 91,0 | |
| SBF40-PU-18F | 42 | 1/8" | 29 | 32 | 7,2 | 17,5 | 93,0 | 119,8 | |
| SBF40-PU-14F | 42 | 1/4" | 29 | 32 | 7,2 | 17,5 | 93,0 | 119,8 | |
| SBF40-PU-38F | 42 | 3/8" | 45 | 32 | 7,2 | 17,5 | 93,0 | 119,8 | |
| SBF50-PU-18F | 51,5 | 1/8" | 37 | 40 | 11 | 25,0 | 128,5 | 157,8 | |
| SBF50-PU-14F | 51,5 | 1/4" | 37 | 40 | 11 | 25,0 | 128,5 | 157,8 | |
| SBF50-PU-38F | 51,5 | 3/8" | 37 | 40 | 11 | 25,0 | 128,5 | 157,8 | |
| SBF60-PU-18F | 64 | 1/8" | 41,5 | 50 | 22 | 87,3 | 156,2 | 189,2 | |
| SBF60-PU-14F | 64 | 1/4" | 41,5 | 50 | 22 | 87,3 | 156,2 | 189,2 | |
| SBF60-PU-38F | 64 | 3/8" | 41,5 | 50 | 22 | 87,3 | 156,2 | 189,2 | |
| SBF60-PU-12F | 64 | 1/2" | 41,5 | 50 | 22 | 87,3 | 156,2 | 189,2 | |
| SBF80-PU-18F | 84 | 1/8" | 49,5 | 68 | 59,5 | 118,6 | 210,5 | 252,6 | |
| SBF80-PU-14F | 84 | 1/4" | 49,5 | 68 | 59,5 | 118,6 | 210,5 | 252,6 | |
| SBF80-PU-38F | 84 | 3/8" | 49,5 | 68 | 59,5 | 118,6 | 210,5 | 252,6 | |
| SBF80-PU-12F | 84 | 1/2" | 49,5 | 68 | 59,5 | 118,6 | 210,5 | 252,6 | |
| SBF100-PU-18F | 103 | 1/8" | 55 | 83 | 103,5 | 149,0 | 269,5 | 310,4 | |
| SBF100-PU-14F | 103 | 1/4" | 55 | 83 | 103,5 | 149,0 | 269,5 | 310,4 | |
| SBF100-PU-38F | 103 | 3/8" | 55 | 83 | 103,5 | 149,0 | 269,5 | 310,4 | |
| SBF100-PU-12F | 103 | 1/2" | 55 | 83 | 103,5 | 149,0 | 269,5 | 310,4 | |
Product sorting
List of products
Suction cup SBF with diameter 32 mm and internal thread G1/8". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
Suction cup SBF with diameter 32 mm and internal thread G1/4". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
Suction cup SBF with diameter 42 mm and internal thread G1/4". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
Suction cup SBF with diameter 51,5 mm and internal thread G1/4". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power....
Suction cup SBF with diameter 51,5 mm and internal thread G3/8". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power....
Suction cup SBF with diameter 32 mm and internal thread G3/8". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
Suction cup SBF with diameter 42 mm and internal thread G3/8". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
Suction cup SBF with diameter 51,5 mm and internal thread G1/8". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power....
Suction cup SBF with diameter 42 mm and internal thread G1/8". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
Suction cup SBF with diameter 103 mm and internal thread G1/2". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power....
Suction cup SBF with diameter 103 mm and internal thread G1/4". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power....
Suction cup SBF with diameter 103 mm and internal thread G1/8". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power....
Suction cup SBF with diameter 103 mm and internal thread G3/8". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power....
Suction cup SBF with diameter 64 mm and internal thread G1/2". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
Suction cup SBF with diameter 64 mm and internal thread G1/4". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
Suction cup SBF with diameter 64 mm and internal thread G1/8". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
Suction cup SBF with diameter 64 mm and internal thread G3/8". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
Suction cup SBF with diameter 84 mm and internal thread G1/2". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
Suction cup SBF with diameter 84 mm and internal thread G1/4". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
Suction cup SBF with diameter 84 mm and internal thread G1/8". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
Suction cup SBF with diameter 84 mm and internal thread G3/8". Made of polyurethane with a hardness of 60°Sh. High aging resistance and powerful absorption power. Applications...
