Extended reducer RA246 internal and external thread
 |
|
Extended cast iron reducing fitting RA246 with internal and external thread |
||||
| Ordering number |
Internal thread " |
External thread " |
Screw height mm |

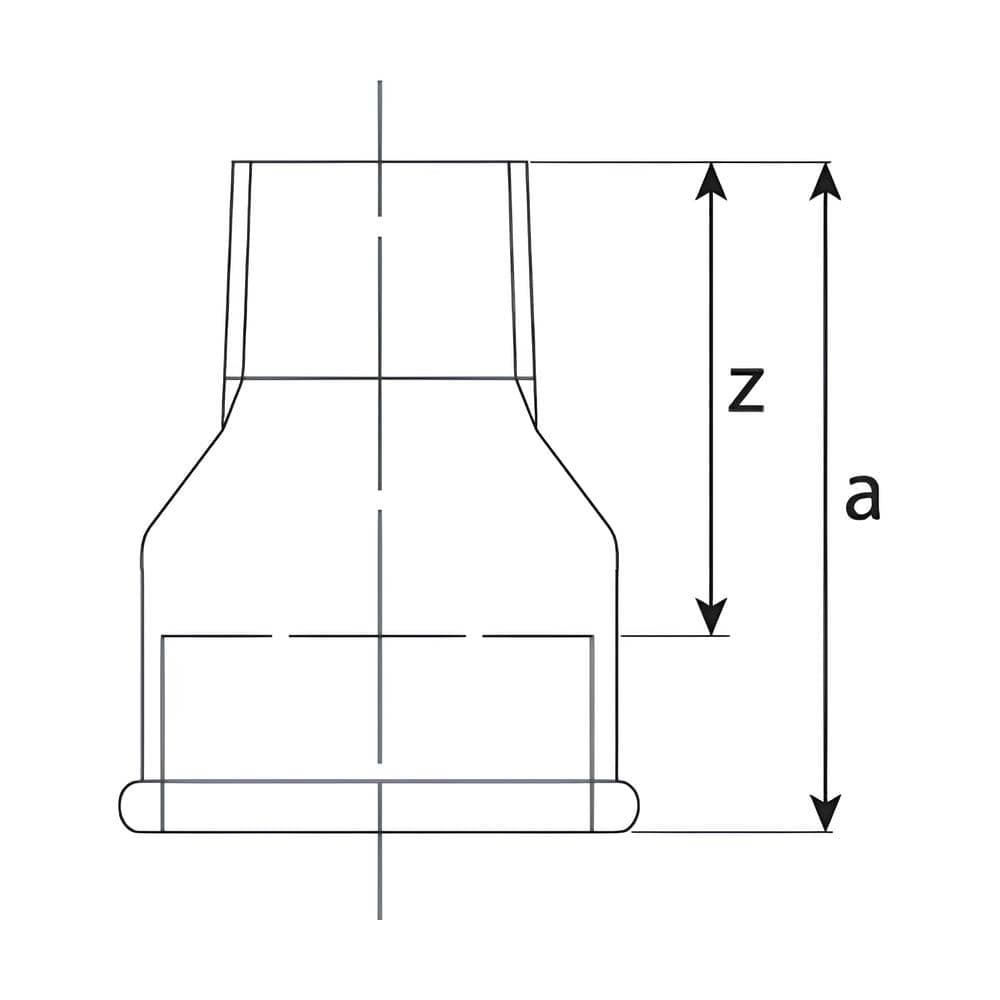

Height "z" mm |
| RA246-3812 | R 1/2" | R 3/8" | 43 | 30 |
| RA246-1234 | R 3/4" | R 1/2" | 48 | 33 |
| RA246-1210 | R 1" | R 1/2" | 55 | 38 |
| RA246-3410 | R 1" | R 3/4" | 55 | 38 |
| RA246-3454 | R 1 1/4" | R 3/4" | 60 | 41 |
| RA246-1054 | R 1 1/4" | R 1" | 60 | 41 |
| RA246-1015 | R 1 1/2" | R 1" | 63 | 44 |
| RA246-5415 | R 1 1/2" | R 1 1/4" | 63 | 44 |
| RA246-1020 | R 2" | R 1" | 71 | 46 |
| RA246-5420 | R 2" | R 1 1/4" | 70 | 46 |
| RA246-1520 | R 2" | R 1 1/2" | 70 | 46 |
| RA246-2025 | R 2 1/2" | R 2" | 70 | 46 |
| RA246-2530 | R 3" | R 2 1/2" | 80 | 52 |
Product sorting
List of products
Cast iron reducing fitting internal thread R1 1/4" and external thread R 1" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R1/2" and external thread R 3/8" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R1 1/2" and external thread R 1" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Reducing cast iron fitting internal thread R1 1/4" and external thread R 3/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R2" and external thread R 1 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R 3" and external thread R 2 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R1 1/2" and external thread R 1 1/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R3/4" and external thread R 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Reducing cast iron fitting internal thread R2" and external thread R 1" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed...
Cast iron reducing fitting with internal thread R2" and external thread R 1 1/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R1" and external thread R 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R1" and external thread R 3/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Reducing cast iron fitting internal thread R2 1/2" and external thread R 2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
