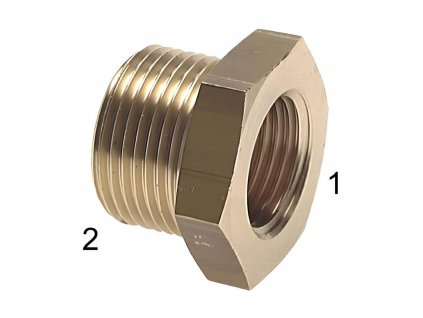

Internal/external thread reduction
 |
|
Reducing fitting internal / external thread |
||||
| Ordering number |
Internal thread " |
External thread " |
SW mm |
Height SW mm |
| R0518M | M5 | 1/8" | 14 | 4 |
| R0514M | M5 | 1/4" | 17 | 4 |
| R1814M | 1/8" | 1/4" | 17 | 4,5 |
| R1838M | 1/8" | 3/8" | 19 | 4 |
| R1438M | 1/4" | 3/8" | 19 | 4,5 |
| R1412M | 1/4" | 1/2" | 24 | 5 |
| R3812M | 3/8" | 1/2" | 24 | 5 |
| R1434M | 1/4" | 3/4" | 27 | 5 |
| R3834M | 3/8" | 3/4" | 32 | 6 |
| R1234M | 1/2" | 3/4" | 32 | 6 |
| R1210M | 1/2" | 1" | 36 | 7 |
| R3410M | 3/4" | 1" | 36 | 6 |
| R3454M | 3/4" | 1 1/4" | 44 | 8 |
| R1054M | 1" | 1 1/4" | 44 | 7 |
| R3415M | 3/4" | 1 1/2" | 50 | 10 |
| R1015M | 1" | 1 1/2" | 50 | 8 |
| R5415M | 1 1/4" | 1 1/2" | 50 | 8 |
| R1520M | 1 1/2" | 2" | 60 | 9 |
Bestsellers
List of products
Reduction internal/external thread G1/4" - G3/8". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Internal/external thread reduction G1/8" - G1/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Internal/external thread reduction G1/4" - G3/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Internal/external thread reduction G1/8" - G3/8". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Inner/outer thread M5 - G1/8". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air technology,...
Inner/outer thread M5 - G1/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air technology,...
Internal/external thread reduction G1/4" - G1/2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Internal/external thread reduction G3/8" - G1/2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Internal/external thread reduction G1/2" - G3/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Reduction internal/external thread G1 1/4" - G1 1/2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for...
Reduction internal/external thread G1/2" - G1". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Internal/external thread reduction G3/4" - G1 1/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for...
Internal/external thread reduction G3/4" - G1 1/2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for...
Internal/external thread reduction G1" - G1 1/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Internal/external thread reduction G1 1/2" - G2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Internal/external thread reduction G1" - G1 1/2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Reduction internal/external thread G3/4" - G1". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Inner/outer thread G3/8"- G3/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air technology,...
