Reducer RA241 with internal and external thread
 |
|

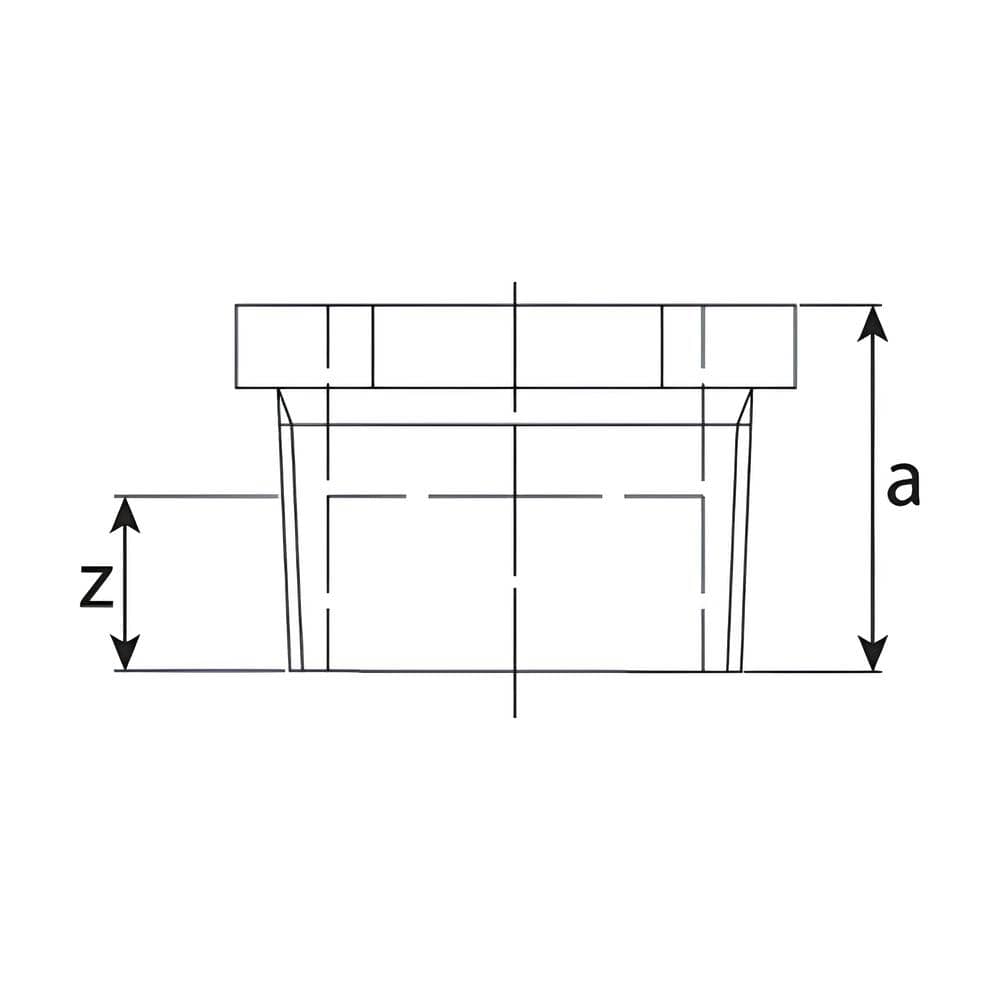

Cast iron reducing fitting RA241 with internal and external thread |
||||
| Ordering number |
Internal thread " |
External thread " |
Screw height mm |
Thread length mm |
| RA241-1412 | R 1/4" | R 1/2" | 24 | 14 |
| RA241-3812 | R 3/8" | R 1/2" | 24 | 14 |
| RA241-1434 | R 1/4" | R 3/4" | 20 | 10 |
| RA241-3834 | R 1/8" | R 3/4" | 26 | 18 |
| RA241-1234 | R 1/2" | R 3/4" | 26 | 13 |
| RA241-3810 | R 3/8" | R 1" | 29 | 19 |
| RA241-1210 | R 1/2" | R 1" | 29 | 16 |
| RA241-3410 | R 3/4" | R 1" | 29 | 14 |
| RA241-1254 | R 1/2" | R 1 1/4" | 31 | 18 |
| RA241-3454 | R 3/4" | R 1 1/4" | 31 | 16 |
| RA241-1054 | R 1" | R 1 1/4" | 31 | 14 |
| RA241-1215 | R 1/2" | R 1 1/2" | 31 | 18 |
| RA241-3415 | R 3/4" | R 1 1/2" | 31 | 16 |
| RA241-1015 | R 1" | R 1 1/2" | 31 | 14 |
| RA241-5415 | R 1 1/4" | R 1 1/2" | 31 | 12 |
| RA241-1220 | R 1/2" | R 2" | 35 | 35 |
| RA241-3420 | R 3/4" | R 2" | 35 | 33 |
| RA241-1220 | R 1/2" | R 2" | 35 | 18 |
| RA241-5420 | R 1 1/4" | R 2" | 35 | 16 |
| RA241-1520 | R 1 1/2" | R 2" | 35 | 16 |
| RA241-1025 | R 1" | R 2 1/2" | 40 | 37 |
| RA241-5425 | R 1 1/4" | R 2 1/2" | 40 | 35 |
| RA241-1525 | R 1 1/2" | R 2 1/2" | 40 | 21 |
| RA241-2025 | R 2" | R 2 1/2" | 40 | 16 |
| RA241-1030 | R 1" | R 3" | 44 | 42 |
| RA241-5430 | R 1 1/4" | R 3" | 44 | 40 |
| RA241-1530 | R 1 1/2" | R 3" | 44 | 40 |
| RA241-2030 | R 2" | R 3" | 44 | 20 |
| RA241-2530 | R 2 1/2" | R 3" | 44 | 17 |
| RA241-2040 | R 2" | R 4" | 51 | 46 |
| RA241-2540 | R 2 1/2" | R 4" | 51 | 42 |
| RA241-3040 | R 3" | R 4" | 51 | 21 |
| RA241-4050 | R 4" | R 5" | 61 | 42 |
| RA241-4060 | R 4" | R 6" | 65 | 46 |
Product sorting
List of products
Cast iron reducing fitting with internal thread R1/2" and external thread R 3/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R 1 1/4" and external thread R 1 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R 3/4" and external thread R 1 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R 1" and external thread R 1 1/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R 1" and external thread R 1 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R1/2" and external thread R1 1/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R3/4" and external thread R1 1/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R 1/2" and external thread R 1 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R1/4" and external thread R 3/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R 1 1/5" and external thread R 2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R 1/2" and external thread R 2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R 3/4" and external thread R 2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R 2" and external thread R 2 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R 1" and external thread R 2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed...
Cast iron reducing fitting internal thread R 1 1/4" and external thread R 2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R 1" and external thread R 2 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R 2" and external thread R 3" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed...
Cast iron reducing fitting internal thread R 1 1/2" and external thread R 2 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R 1 1/4" and external thread R 3" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R 1 1/4" and external thread R 2 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R 1" and external thread R 3" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed...
Cast iron reducing fitting internal thread R 1 1/2" and external thread R 3" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R 2 1/2" and external thread R 3" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R 3" and external thread R 4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed...
Cast iron reducing fitting internal thread R1/2" and external thread R 1" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R1/4" and external thread R 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R3/4" and external thread R 1" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R3/8" and external thread R 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R3/8" and external thread R 3/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R 3/8" and external thread R 1" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting with internal thread R 2 1/2" and external thread R 4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and...
Cast iron reducing fitting internal thread R 2" and external thread R 4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed...
Cast iron reducing fitting internal thread R 4" and external thread R 5" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed...
Cast iron reducing fitting internal thread R 4" and external thread R 6" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed...
