45° corner fitting RA121 internal and external thread R
 |
|
Cast iron 45° elbow RA121 with internal and external thread R |
||||
| Ordering number |
Internal thread " |
Internal thread " |

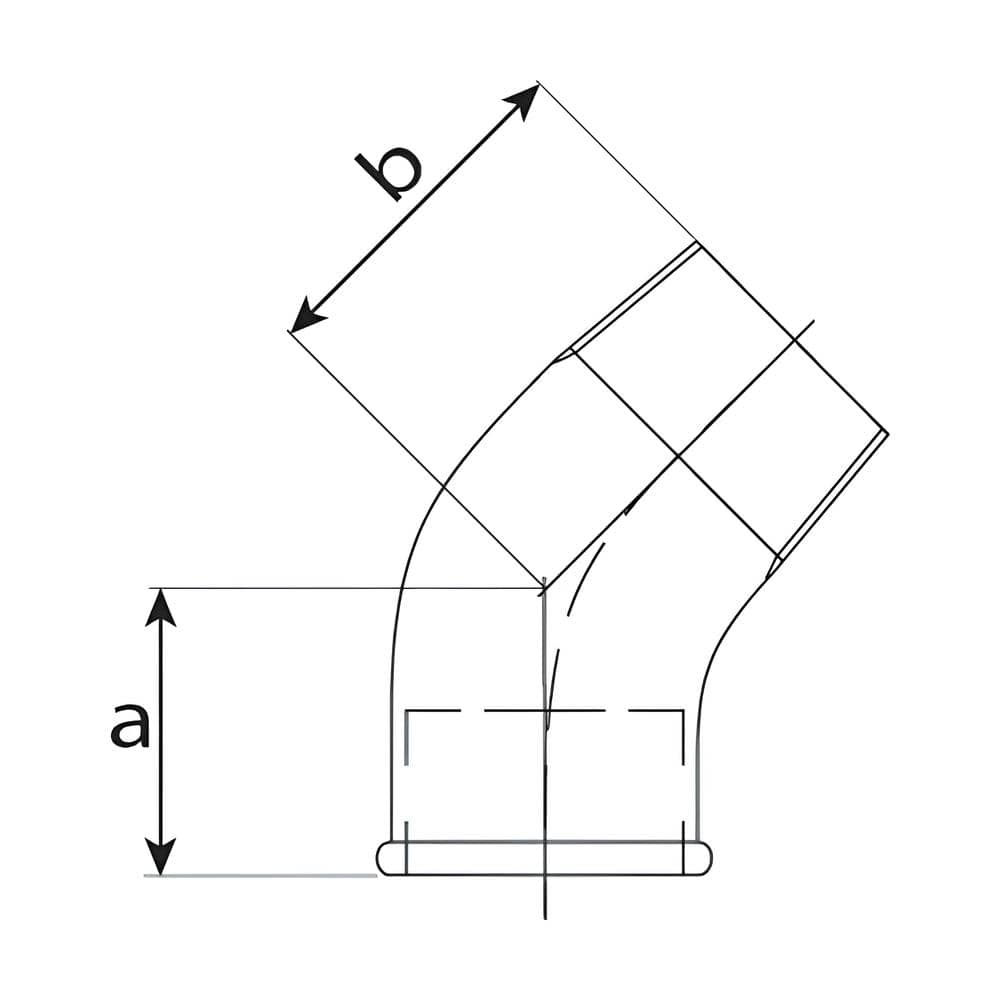

Length "a" mm |
Length "b" mm |
| RA121-12 | R 1/2" | R 1/2" | 22 | 28 |
| RA121-34 | R 3/4" | R 3/4" | 25 | 32 |
| RA121-10 | R 1" | R 1" | 28 | 37 |
| RA121-54 | R 1 1/4" | R 1 1/4" | 33 | 43 |
| RA121-15 | R 1 1/2" | R 1 1/2" | 36 | 46 |
| RA121-20 | R 2" | R 2" | 43 | 55 |
Product sorting
List of products
Angled cast iron fitting 45° with internal and external thread R 1" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air...
Angled cast iron fitting 45° with internal and external thread R 3/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed...
Angled cast iron fitting 45° with internal and external thread R 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed...
Angled cast iron fitting 45° with internal and external thread R 1 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed...
Angled cast iron fitting 45° with internal and external thread R 1 1/4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed...
Angled cast iron fitting 45° with internal and external thread R 2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air...
