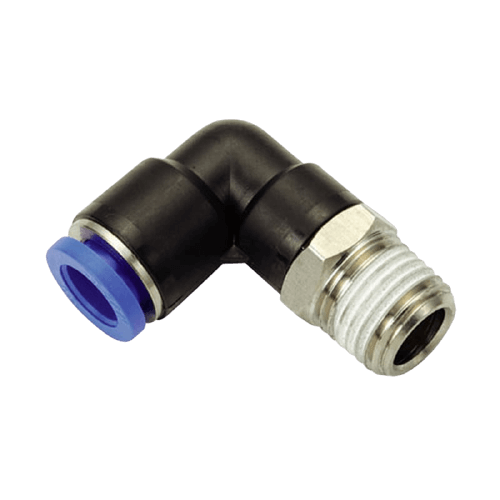

Corner fitting male thread NPT inch version
 |
|
Corner coupling with external taper and NPT thread in inch version |
||||||||||||
| Ordering number |
Tube mm |
Thread " |
Length mm |
Width mm |
Hexagon SW |
Thread length mm |
||||||
| PLI-1814 | 1/4" (6.35 mm) | R1/8" | 21 | 28 | 12 | 8 | ||||||
| PLI-1414 | 1/4" (6.35 mm) | R1/4" | 21 | 29 | 14 | 8 | ||||||
| PLI-1438 | 3/8" (9.52 mm) | R1/4" | 23 | 31 | 14 | 9 | ||||||
| PLI-3838 | 3/8" (9.52 mm) | R3/8" | 23 | 34 | 17 | 11 | ||||||
| PLI-1238 | 3/8" (9.52 mm) | R1/2" | 23 | 36 | 21 | 13 | ||||||
| PLI-3812 | 1/2" (12.7 mm) | R3/8" | 28 | 38 | 21 | 11 | ||||||
| PLI-1212 | 1/2" (12.7 mm) | R1/2" | 28 | 40 | 21 | 13 | ||||||
| PLN-1814 | 1/4" (6.35 mm) | 1/8" NPT | 21 | 29 | 12 | 8 | ||||||
| PLN-1414 | 1/4" (6.35 mm) | 1/4" NPT | 21 | 31 | 14 | 11 | ||||||
| PLN-1438 | 3/8" (9.52 mm) | 1/4" NPT | 26 | 37 | 17 | 11 | ||||||
| PLN-3838 | 3/8" (9.52 mm) | 3/8" NPT | 26 | 38 | 17 | 12 | ||||||
| PLN-1238 | 3/8" (9.52 mm) | 1/2" NPT | 26 | 42 | 22 | 15 | ||||||
| PLN-3812 | 1/2" (12.7 mm) | 3/8" NPT | 28 | 40 | 22 | 12 | ||||||
| PLN-1212 | 1/2" (12.7 mm) | 1/2" NPT | 28 | 44 | 22 | 15 | ||||||
Product sorting
List of products
Corner plastic socket coupling for 1/4" male hose with 1/8" NPT male thread. The line with special used on technology imported from the Americas and Asia. Designed especially...
Corner plastic socket coupling for 1/2" male hose with 3/8" NPT male thread. The line with special used on technology imported from the Americas and Asia. Designed especially...
Plastic corner socket coupling for 3/8" outer hose with R1/4" male tapered thread. The line with special used on technology imported from the Americas and Asia. Designed...
Corner plastic socket coupling for 1/2" outer hose with R1/2" male tapered thread. The line with special used on technology imported from the Americas and Asia. Designed...
Plastic corner socket coupling for 3/8" outer hose with R1/2" male tapered thread. The line with special used on technology imported from the Americas and Asia. Designed...
Corner plastic socket coupling for 1/2" outer hose with R3/8" male tapered thread. The line with special used on technology imported from the Americas and Asia. Designed...
Corner plastic socket coupling for 1/2" male hose with 1/2" NPT male thread. The line with special used on technology imported from the Americas and Asia. Designed especially...
Corner plastic socket coupling for 3/8" male hose with 1/2" NPT male thread. The line with special used on technology imported from the Americas and Asia. Designed especially...
Corner plastic socket coupling for 1/4" male hose with 1/4" NPT male thread. The line with special used on technology imported from the Americas and Asia. Designed especially...
Corner plastic socket coupling for 3/8" male hose with 1/4" NPT male thread. The line with special used on technology imported from the Americas and Asia. Designed especially...
Plastic corner socket coupling for 3/8" outer hose with R3/8" male tapered thread. The line with special used on technology imported from the Americas and Asia. Designed...
Corner plastic socket coupling for 1/4" outer hose with R1/8" male tapered thread. The line with special used on technology imported from the Americas and Asia. Designed...
Corner plastic socket coupling for 1/4" outer hose with R1/4" male tapered thread. The line with special used on technology imported from the Americas and Asia. Designed...
Corner plastic socket coupling for 3/8" male hose with 3/8" NPT male thread. The line with special used on technology imported from the Americas and Asia. Designed especially...
