ESD quick couplings with 45° male thread
 |
|
Quick couplings with a 45° male thread, without/with valve (internal cone DIN3863) |
||||||||||||
| Without valve | With valve | Thread | SW | l | d | Thread length | Nipple width | Nominal bore | Weight | |||
| ESD38A-45 | ESD38A-45AB | 3/8" | 22 | 54 | 22 | 9 | 13,5 | 9 | 114 | |||
| ESD1615A-45 | ESD1615A-45AB | M16X1,5 | 22 | 54 | 22 | 9 | 13,5 | 9 | 114 | |||
| ESD38AL-45* | ESD38AL-45AB* | 3/8" | 22 | 54 | 22 | 11 | 13,5 | 9 | 125 | |||
* quick couplings with an extended thread
Product sorting
List of products

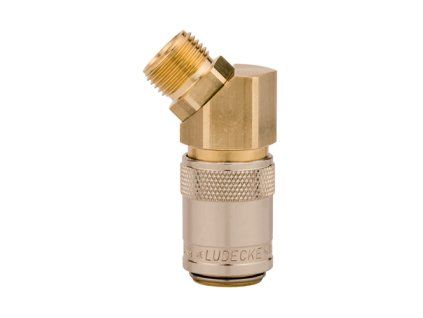

Quick coupling with 45° male thread extension G3/8" with valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and...
Quick coupling with 45° male thread extension G3/8" without valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and...
Quick coupling with 45° male thread G3/8" with valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and 2.0401. To be...
Quick coupling with 45° male thread G3/8" without valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and 2.0401. To...
Quick coupling with 45° male thread M16x1,5 with valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and 2.0401. To...
Quick coupling with 45° male thread M16x1,5" without valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and 2.0401....
