ESD quick couplings with straight male thread
 |
|
Quick couplings with a straight male thread, without/with valve (internal cone DIN3863) |
||||||||||||
| Without valve | With valve | Thread | SW | l | d | Thread length | Nipple width | Nominal bore | Weight | |||
| ESD14A | ESD14AAB | G1/4" | 22 | 52 | 22 | 9 | 13,5 | 9 | 90 | |||
| ESD38A | ESD38AAB | G3/8" | 22 | 52 | 22 | 9 | 13,5 | 9 | 94 | |||
| ESD1615A | ESD1615AAB | M16X1,5 | 22 | 52 | 22 | 9 | 13,5 | 9 | 93 | |||
| ESD12A | ESD12AAB | G1/2" | 22 | 53 | 22 | 10 | 13,5 | 9 | 95 | |||
| ESD38AL* | ESD38ALAB* | G3/8" | 22 | 52 | 22 | 11 | 13,5 | 9 | 94 | |||
| ESD12AL* | ESD12ALAB* | G1/2" | 22 | 54,5 | 22 | 12 | 13,5 | 9 | 110 | |||
| ESD1615AL* | ESD1615ALAB* | M16X1,5 | 22 | 52 | 22 | 11 | 13,5 | 9 | 105 | |||
* quick couplings with an extended thread
Product sorting
List of products
Quick coupling with straight male thread G3/8" without valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and...
Quick coupling with straight male thread G1/2" with valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and 2.0401....
Quick coupling with straight male thread G1/4" with valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and 2.0401....
Quick-coupling with straight male thread G3/8" without valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and...
Quick coupling with straight male thread G3/8" with valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and 2.0401....
Quick coupling with straight male thread G1/2" without valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and...
Quick coupling with straight male thread G1/4" without valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and...

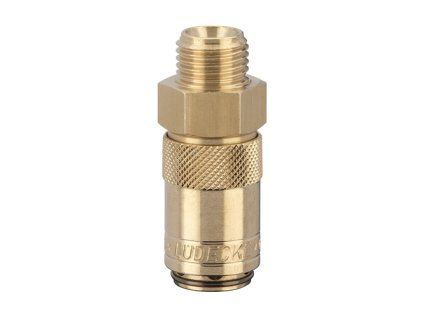

Quick coupling with straight external extended thread G1/2" with valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58...
Quick coupling with straight external extended thread G1/2" without valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass...
Quick-coupling with straight male thread G3/8" with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and 2.0401. To be used...
Quick-coupling with straight male thread M16x1,5 with valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and...
Quick-coupling with straight male thread M16x1,5 without valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and...
Quick coupling with straight male thread M16x1,5 with valve with nipple 13 mm. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and...
Quick coupling with straight male thread M16x1,5 without valve with 13 mm nipple. Adjustable flow to free flow, double-sided and single-sided closure. Made of brass MS58 and...
