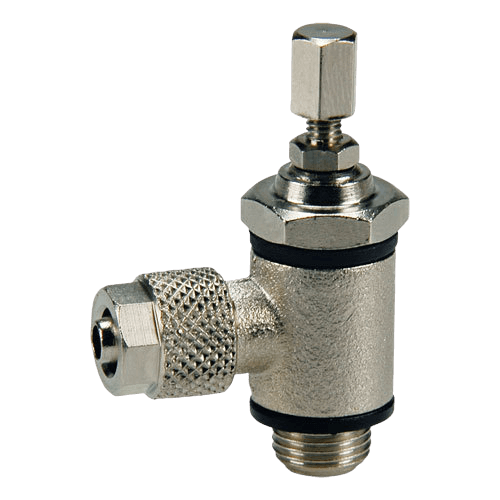

Corner throttling valve on the air inlet
 |
|
Throttling valves on inlet with external pipe thread |
|||||
| Ordering number |
Tube mm |
Thread " |
Width mm |
Height mm |
Hexagon SW |
| 8965-M56 | 6/4 mm | M5 | 16,5 | 30,5 | 8 |
| 8965-186 | 6/4 mm | 1/8" | 23,3 | 39,5 | 14 |
| 8965-146 | 6/4 mm | 1/4" | 25,3 | 45,5 | 17 |
| 8965-188 | 8/6 mm | 1/8" | 24,7 | 39,5 | 14 |
| 8965-148 | 8/6 mm | 1/4" | 27,6 | 45,5 | 17 |
| 8965-1410 | 10/8 mm | 1/4" | 29,5 | 45,5 | 17 |
Product sorting
List of products
The corner throttle valve on the compressed air inlet with 1/8" male pipe thread and 6/4 mm hose nut ensures a reliable connection from plastic hoses up to 15 bar. Replacement...
The corner throttle valve on the compressed air inlet with 1/8" male pipe thread and 8/6 mm hose nut ensures a reliable connection from plastic hoses up to 15 bar. Replacement...
The corner throttle valve on the compressed air inlet with 1/4" male pipe thread and 10/8 mm hose nut ensures a reliable connection from plastic hoses up to 15 bar. Replacement...
The corner throttle valve on the compressed air inlet with 1/4" male pipe thread and 6/4 mm hose nut ensures a reliable connection from plastic hoses up to 15 bar. Replacement...
The corner throttle valve on the compressed air inlet with M5 external metric thread and 6/4 mm hose nut ensures a reliable connection from plastic hoses up to 15 bar....
The corner throttle valve on the compressed air inlet with 1/4" male pipe thread and 8/6 mm hose nut ensures reliable connection of plastic hoses up to 15 bar. Replacement nut...
