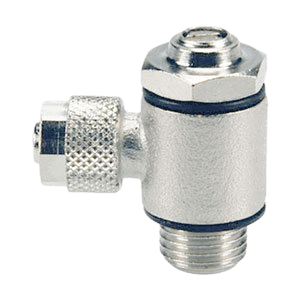

Throttle valve on air inlet external thread G
 |
|
Compressed air inlet throttling valves with external pipe thread |
|||||
| Ordering number |
Tube mm |
Thread " |
Width mm |
Height mm |
Hexagonal SW |
| 8960-M56 | 6/4 mm | M5 | 16,5 | 24 | 8 |
| 8960-186 | 6/4 mm | 1/8" | 23,3 | 30,5 | 14 |
| 8960-146 | 6/4 mm | 1/4" | 25,3 | 35,5 | 17 |
| 8960-188 | 8/6 mm | 1/8" | 24,7 | 30,5 | 14 |
| 8960-148 | 8/6 mm | 1/4" | 27,6 | 35,5 | 17 |
| 8960-1410 | 10/8 mm | 1/4" | 29,5 | 35,5 | 17 |
Product sorting
List of products
An elbow exhaust throttle valve for compressed air with an M5 male metric thread and a union nut for 6/4 mm tubing provides a reliable connection for plastic tubing up to 15...
The corner throttle valve on the compressed air inlet with 1/4" male pipe thread and union nut for 10/8 mm hose ensures a reliable connection from plastic hoses up to 15 bar....
The corner throttle valve on the compressed air inlet with 1/4" male pipe thread and union nut for a 6/4 mm hose ensures a reliable connection from plastic hoses up to 15 bar....
The angle throttle valve on the compressed air inlet with 1/8" male pipe thread and union nut for 6/4 mm hose ensures a reliable connection of plastic hoses up to 15 bar....
The corner throttle valve on the compressed air inlet with 1/4" male pipe thread and union nut for 8/6 mm hose ensures reliable connection of plastic hoses up to 15 bar....
The corner throttle valve on the compressed air inlet with 1/8" male pipe thread and union nut for 8/6 mm hose ensures a reliable connection from plastic hoses up to 15 bar....
