Solenoid valves 2V
.jpg) |
|

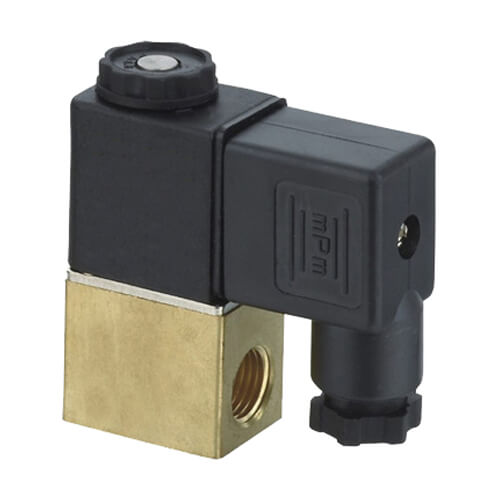

Solenoid valves 2V - 2/2NC |
|||||||
| Ordering number |
Function | Thread " |
Luminosity mm |
Flow Kv l/min |
Min. pressure bar |
Maximum pressure | |
| bar | |||||||
| 2V-18 | 2/2NC | 1/8" | 2,5 | 0,23 | 0 | 8 | |
| 2V-14 | 2/2NC | 1/4" | 2,5 | 0,23 | 0 | 8 | |
Coils and connectors for 2V series |
||
| Order number | Description | .jpg) |
| 2VC-12VDC | 12 V DC coil | |
| 2VC-24VDC | 24 V DC coil | |
| 2VC-24VAC | 24 V AC 50/60Hz coil | |
| 2VC-110VAC | 110 V AC 50/60Hz coil | |
| 2VC-230VAC | 230 V AC 50/60Hz coil | |
| 2VC-B | connector, standard black | |
Product sorting
List of products
24 V DC solenoid coil for 2V series solenoid valves. Function 2/2NC, clearance 2,5 mm. Maximum medium viscosity 20 cSt for temperatures - 10 °C and +80 °C. The delivery does not...
Standard connector for 2VC coils. Maximum medium viscosity 20 cSt for temperatures - 10 °C and +80 °C. The delivery does not include the coil or the 2V valve.
Solenoid valves series 2V with connection thread G1/4". Function 2/2NC, clearance 2,5 mm. Maximum viscosity of the medium 20 cSt. Made of brass, NBR seal for temperatures -10 to...
Solenoid valves series 2V with connection thread G1/8". Function 2/2NC, clearance 2,5 mm. Maximum viscosity of the medium 20 cSt. Made of brass, NBR seal for temperatures -10 to...
110 VAC solenoid coil for 2V series solenoid valves. Function 2/2NC, clearance 2,5 mm. Maximum medium viscosity 20 cSt for temperatures - 10 °C and +80 °C. The delivery does not...
12 V DC solenoid coil for 2V series solenoid valves. Function 2/2NC, clearance 2,5 mm. Maximum medium viscosity 20 cSt for temperatures - 10 °C and +80 °C. The delivery does not...
230 V AC coil for 2V series solenoid valves. Function 2/2NC, clearance 2,5 mm. Maximum medium viscosity 20 cSt for temperatures - 10 °C and +80 °C. The delivery does not include...
24 V AC coil for 2V series solenoid valves. Function 2/2NC, clearance 2,5 mm. Maximum medium viscosity 20 cSt for temperatures - 10 °C and +80 °C. The delivery does not include...
