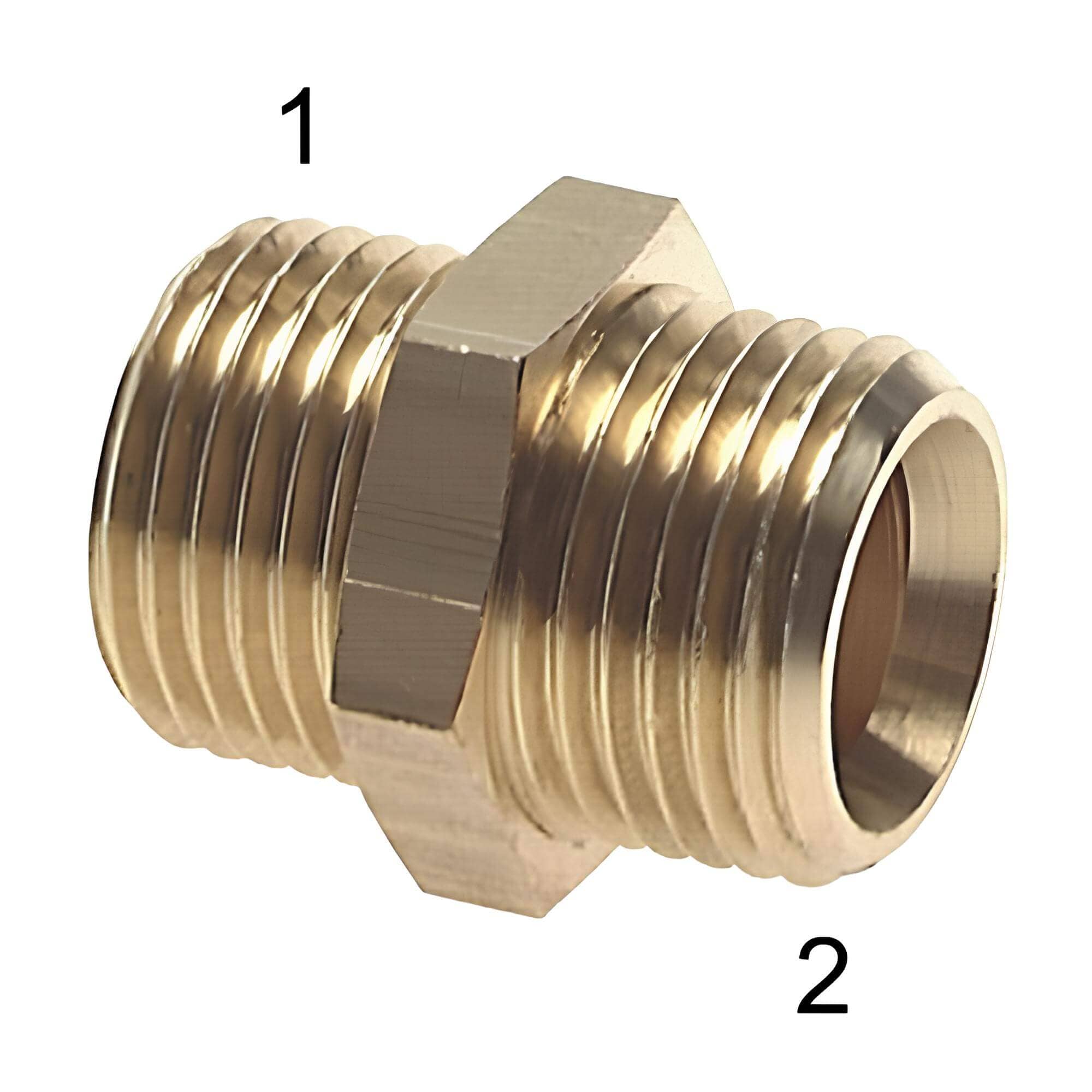

Double nipple with external threads
 |
|
Adapter fitting with external pipe threads |
|||
| Ordering number |
Thread 1 " |
Thread 2 " |
SW " |
| D0505M | M5 | M5 | 7 |
| D0518M | M5 | 1/8" | 14 |
| D0514M | M5 | 1/4" | 17 |
| D1818M | 1/8" | 1/8" | 14 |
| D1814M | 1/8" | 1/4" | 17 |
| D1838M | 1/8" | 3/8" | 19 |
| D1414M | 1/4" | 1/4" | 17 |
| D1438M | 1/4" | 3/8" | 19 |
| D1412M | 1/4" | 1/2" | 24 |
| D3838M | 3/8" | 3/8" | 19 |
| D3812M | 3/8" | 1/2" | 24 |
| D3834M | 3/8" | 3/4" | 32 |
| D1212M | 1/2" | 1/2" | 24 |
| D1234M | 1/2" | 3/4" | 32 |
| D1210M | 1/2" | 1" | 36 |
| D1254M | 1/2" | 1 1/4" | 44 |
| D3434M | 3/4" | 3/4" | 32 |
| D3410M | 3/4" | 1" | 36 |
| D3454M | 3/4" | 1 1/4" | 44 |
| D3415M | 3/4" | 1 1/2" | 50 |
| D1010M | 1" | 1" | 36 |
| D1054M | 1" | 1 1/4" | 44 |
| D1015M | 1" | 1 1/2" | 50 |
| D1020M | 1" | 2" | 61 |
| D5454M | 1 1/4" | 1 1/4" | 44 |
| D5415M | 1 1/4" | 1 1/2" | 50 |
| D5420M | 1 1/4" | 2" | 61 |
| D1515M | 1 1/2" | 1 1/2" | 50 |
| D1520M | 1 1/2" | 2" | 61 |
| D2020M | 2" | 2" | 61 |
| D2025M | 2" | 2 1/2" | 77 |
| D2030M | 2" | 3" | 89 |
| D2530M | 2 1/2" | 3" | 89 |
| D3030M | 3" | 3" | 89 |
Product sorting
List of products
Fitting with external threads G1/2" - G1/2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads G1/8" - G1/8". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fitting with external threads G1/4" - G1/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fitting with external threads G3/8" - G1/2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads G3/8" - G3/8". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads G1/4" - G1/2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads G1/4" - G3/8". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fitting with external threads G3/4" - G3/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads M5 - G1/8". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads G1/8" - G1/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads G1/8"-G1/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads G1/2" - G1". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fitting with external threads G1" - G1 1/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fitting with external threads G3/4" - G1". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fitting with external threads G1" - G1". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads G3/8" - G3/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads G1/2" - G3/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads G1" - G1 1/2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fitting with external threads G1 1/4" - G1 1/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Fitting with external threads G3/4" - G1 1/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...

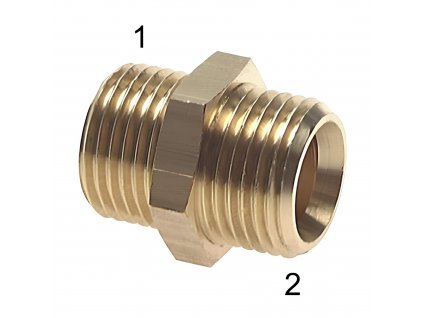

Fitting with external threads G1 1/4" - G1 1/2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Fittings with external threads G3/4" - G1 1/2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Fitting with external threads G1 1/2" - G1 1/2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Fittings with external threads G3" - G3". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fitting with external threads G2 1/2" - G3". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fitting with external threads G1 1/2" - G2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads G1 1/4" - G2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fitting with external threads G2" - G2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads G2" - G2 1/2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads G2" - G3". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fitting with external threads G1/2" - G1 1/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed...
Fittings with external threads G1" - G2". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fitting with external threads M5 - G1/4". Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
Fittings with external threads M5 - M5. Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for compressed air...
