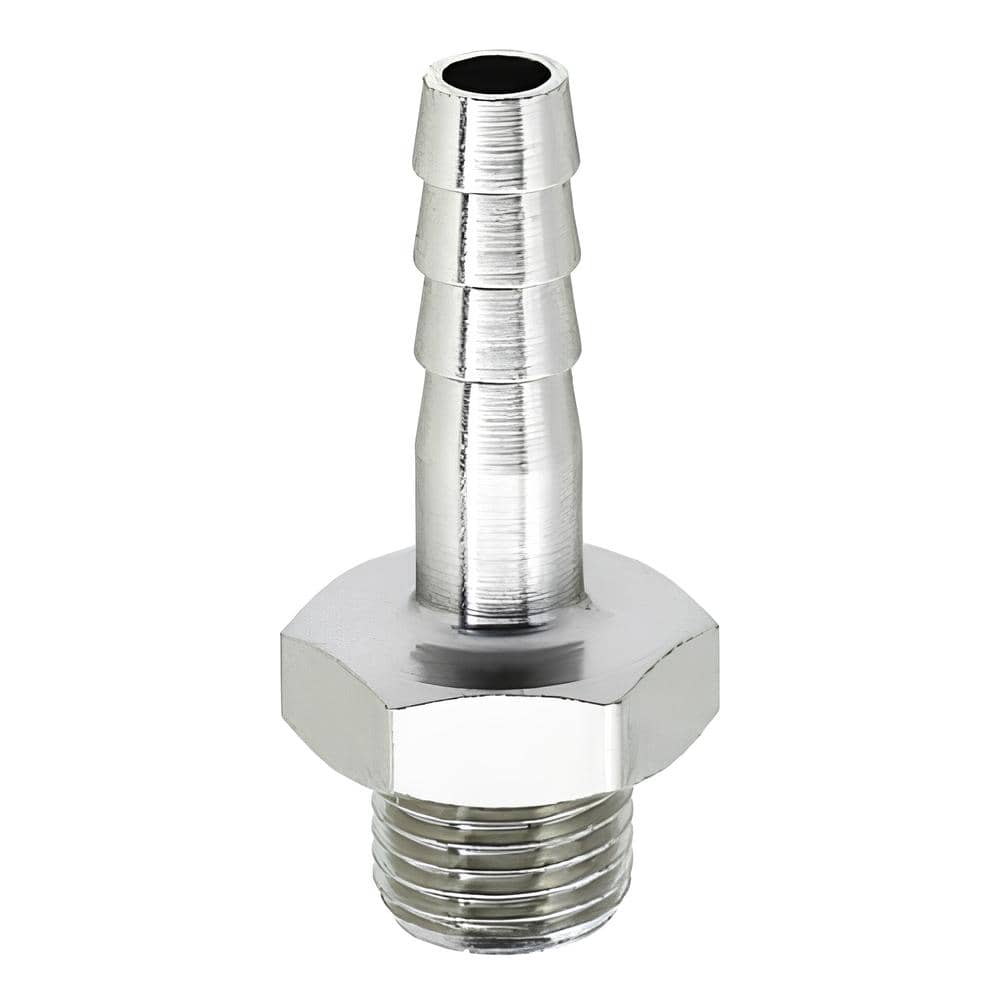

Hose barb fitting and external tapered thread
 |
|
Hose barb fitting with external tapered thread |
|||||
| Ordering number |
Thread " |
Hose barb mm |
Thread length mm |
Length mm |
SW mm |
| A015-M54 | M5 | 4 mm | 4 | 23 | 8 |
| A015-184 | R1/8" | 4 mm | 8 | 26 | 10 |
| A015-144 | R1/4" | 4 mm | 11 | 30 | 14 |
| A015-186 | R1/8" | 6 mm | 8 | 32 | 12 |
| A015-146 | R1/4" | 6 mm | 11 | 35 | 14 |
| A015-386 | R3/8" | 6 mm | 12 | 36 | 17 |
| A015-189 | R1/8" | 9 mm | 8 | 32 | 12 |
| A015-149 | R1/4" | 9 mm | 11 | 35 | 14 |
| A015-389 | R3/8" | 9 mm | 12 | 36 | 17 |
| A015-129 | R1/2" | 9 mm | 14 | 39 | 22 |
| A015-1413 | R1/4" | 13 mm | 11 | 39 | 14 |
| A015-3813 | R3/8" | 13 mm | 12 | 39 | 17 |
| A015-1213 | R1/2" | 13 mm | 14 | 42 | 22 |
| A015-3413 | R3/4" | 13 mm | 17 | 44 | 27 |
| A015-1216 | R1/2" | 16 mm | 14 | 42 | 22 |
| A015-3416 | R3/4" | 16 mm | 17 | 45 | 27 |
| A015-3420 | R3/4" | 20 mm | 17 | 47 | 27 |
| 29172568 | R3/4" | 26 mm | 14,5 | 52,5 | 28 |
Product sorting
List of products
Hose barb fitting with M5 - 4 mm male tapered thread. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose barb fitting with male conical thread R1/4" - 4 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose shank fitting with male conical thread R1/8" - 6 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose barb fitting with male conical thread R1/4" - 6 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose barb fitting with male conical thread R1/8" - 4 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose shank fitting with male conical thread R1/8" - 9 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose shank fitting with male conical thread R1/4" - 9 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose barb fitting with male conical thread R1/2" - 9 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose barb fitting with male conical thread R3/4" - 13 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose shank fitting with male conical thread R1/4" - 13 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose barb fitting with male conical thread R3/4" - 20 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose barb fitting with male conical thread R1/2" - 13 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose shank fitting with male conical thread R3/8" - 13 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose barb fitting with male conical thread R3/8" - 6 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose shank fitting with male conical thread R3/8" - 9 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose barb fitting with male conical thread R3/4" - 16 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose barb fitting with male conical thread R1/2" - 16 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
Hose shank fitting with male conical thread R3/4" - 26 mm. Version in brass with nickel-plated finish. Applications for fluid power, automation, measurement and control technology.
