T-fittings reduced RA131 internal threads R
 |
|
Cast iron T-fittings reduced RA131 with internal tapered threads R |
||||||
| Ordering number |
Left hand thread " |
Branch thread " |
Right hand thread " |

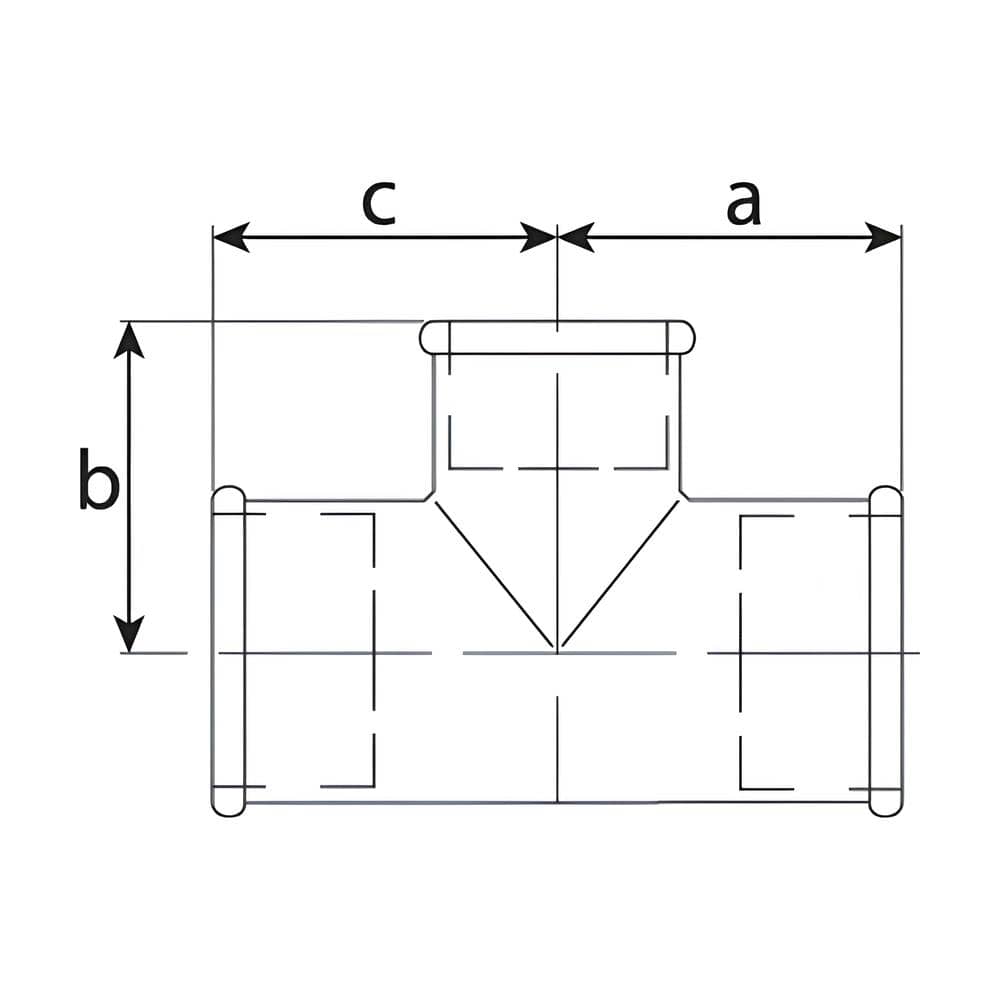

Length "a" mm |
Length "b" mm |
Length "c" mm |
| RA131-123812 | R 1/2" | R 3/8" | R 1/2" | 30 | 28 | 30 |
| RA131-123412 | R 1/2" | R 3/4" | R 1/2" | 32 | 36 | 32 |
| RA131-341212 | R 3/4" | R 1/2" | R 1/2" | 33 | 35 | 30 |
| RA131-341234 | R 3/4" | R 1/2" | R 3/4" | 33 | 35 | 33 |
| RA131-343412 | R 3/4" | R 3/4" | R 1/2" | 36 | 36 | 32 |
| RA131-341034 | R 3/4" | R 1" | R 3/4" | 38 | 39 | 38 |
| RA131-101212 | R 1" | R 1/2" | R 1/2" | 35 | 36 | 30 |
| RA131-101234 | R 1" | R 1/2" | R 3/4" | 35 | 36 | 33 |
| RA131-101210 | R 1" | R 1/2" | R 1" | 35 | 36 | 35 |
| RA131-103412 | R 1" | R 3/4" | R 1/2" | 38 | 39 | 33 |
| RA131-103434 | R 1" | R 3/4" | R 3/4" | 38 | 39 | 35 |
| RA131-103410 | R 1" | R 3/4" | R 1" | 38 | 40 | 38 |
| RA131-101012 | R 1" | R 1" | R 1/2" | 40 | 40 | 39 |
| RA131-101034 | R 1" | R 1" | R 3/4" | 40 | 41 | 39 |
| RA131-541210 | R 1 1/4" | R 1/2" | R 1" | 37 | 41 | 37 |
| RA131-541254 | R 1 1/4" | R 1/2" | R 1 1/4" | 37 | 44 | 37 |
| RA131-543434 | R 1 1/4" | R 3/4" | R 3/4" | 39 | 44 | 36 |
| RA131-543410 | R 1 1/4" | R 3/4" | R 1" | 39 | 44 | 38 |
| RA131-543454 | R 1 1/4" | R 3/4" | R 1 1/4" | 39 | 45 | 39 |
| RA131-541010 | R 1 1/4" | R 1" | R 1" | 43 | 48 | 40 |
| RA131-541054 | R 1 1/4" | R 1" | R 1 1/4" | 43 | 48 | 43 |
| RA131-545412 | R 1 1/4" | R 1 1/4" | R 1/2" | 48 | 48 | 40 |
| RA131-545434 | R 1 1/4" | R 1 1/4" | R 3/4" | 48 | 48 | 44 |
| RA131-545410 | R 1 1/4" | R 1 1/4" | R 1" | 48 | 43 | 45 |
| RA131-151254 | R 1 1/2" | R 1/2" | R 1 1/4" | 38 | 43 | 37 |
| RA131-151215 | R 1 1/2" | R 1/2" | R 1 1/2" | 38 | 47 | 38 |
| RA131-153415 | R 1 1/2" | R 3/4" | R 1 1/2" | 40 | 49 | 40 |
| RA131-151010 | R 1 1/2" | R 1" | R 1" | 45 | 49 | 41 |
| RA131-151054 | R 1 1/2" | R 1" | R 1 1/4" | 45 | 49 | 43 |
| RA131-151015 | R 1 1/2" | R 1" | R 1 1/2" | 45 | 50 | 45 |
| RA131-155454 | R 1 1/2" | R 1 1/4" | R 1 1/4" | 49 | 50 | 48 |
| RA131-155415 | R 1 1/2" | R 1 1/4" | R 1 1/2" | 49 | 53 | 49 |
| RA131-151512 | R 1 1/2" | R 1 1/2" | R 1/2" | 53 | 53 | 45 |
| RA131-151534 | R 1 1/2" | R 1 1/2" | R 3/4" | 53 | 53 | 47 |
| RA131-151510 | R 1 1/2" | R 1 1/2" | R 1" | 53 | 53 | 49 |
| RA131-151554 | R 1 1/2" | R 1 1/2" | R 1 1/4" | 53 | 51 | 51 |
| RA131-201215 | R 2" | R 1/2" | R 1 1/2" | 43 | 51 | 45 |
| RA131-201220 | R 2" | R 1/2" | R 2"5 | 43 | 65 | 43 |
| RA131-203420 | R 2" | R 3/4" | R 2" | 65 | 55 | 53 |
| RA131-201020 | R 2" | R 1" | R 2"65 | 61 | 54 | 61 |
| RA131-205420 | R 2" | R 1 1/4" | R 2" | 65 | 58 | 65 |
| RA131-201515 | R 2" | R 1 1/2" | R 1 1/2" | 55 | 58 | 54 |
| RA131-201520 | R 2" | R 1 1/2" | R 2" | 55 | 61 | 55 |
| RA131-202012 | R 2" | R 2" | R 1/2" | 61 | 61 | 51 |
| RA131-202034 | R 2" | R 2" | R 3/4" | 61 | 61 | 53 |
| RA131-202010 | R 2" | R 2" | R 1" | 61 | 61 | 55 |
| RA131-202015 | R 2" | R 2" | R 1 1/2" | 61 | 63 | 58 |
| RA131-251025 | R 2 1/2" | R 1" | R 2 1/2" | 49 | 65 | 49 |
| RA131-255425 | R 2 1/2" | R 1 1/4" | R 2 1/2" | 55 | 66 | 55 |
| RA131-251525 | R 2 1/2" | R 1 1/2" | R 2 1/2" | 58 | 69 | 58 |
| RA131-252025 | R 2 1/2" | R 2" | R 2 1/2" | 64 | 70 | 64 |
| RA131-301030 | R 3" | R 1" | R 3" | 54 | 72 | 54 |
| RA131-305430 | R 3" | R 1 1/4" | R 3" | 56 | 72 | 56 |
| RA131-301530 | R 3" | R 1 1/2" | R 3" | 56 | 73 | 56 |
| RA131-302030 | R 3" | R 2" | R 3" | 60 | 76 | 60 |
| RA131-302530 | R 3" | R 2 1/2" | R 3" | 66 | 79 | 66 |
| RA131-402040 | R 4" | R 2" | R 4" | 74 | 89 | 74 |
| RA131-402540 | R 4" | R 1 1/2" | R 4" | 73 | 82 | 73 |
| RA131-403040 | R 4" | R 3" | R 4" | 80 | 96 | 80 |
Product sorting
List of products
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 3/4", tap 3/4", right thread R 1/2". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1", tap 1/2", right thread R 1". Maximum pressure 25 bar. Made of tempered hot-dip galvanized cast...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 3/4", tap 1/2", right thread R 1/2". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1", tap 1/2", right thread R 3/4". Maximum pressure 25 bar. Made of tempered hot-dip galvanized cast...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1", tap 3/4", right thread R 3/4". Maximum pressure 25 bar. Made of tempered hot-dip galvanized cast...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1", 3/4" tap, right thread R 1". Maximum pressure 25 bar. Made of tempered hot-dip galvanized cast...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 3/4", tap 1/2", right thread R 3/4". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left-hand thread of the fitting R 1/2", tap 3/8", right-hand thread R 1/2". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1", tap 1/2", right thread R 1/2". Maximum pressure 25 bar. Made of tempered hot-dip galvanized cast...
Cast iron T-fittings with reduced internal threads. Left-hand thread R 1 1/4", tap R 3/4", right-hand thread R 1". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 4", tap R 2 1/2", right thread R 4". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left-hand thread R 4", tap R 2", right-hand thread R 4". Maximum pressure 25 bar. Made of tempered hot-dip galvanized cast...
Cast iron T-fittings with reduced internal threads. Left-hand thread R 4", branch R 3", right-hand thread R 4". Maximum pressure 25 bar. Made of tempered hot-dip galvanized cast...
Cast iron T-fittings with reduced internal threads. Left-hand thread R 1 1/4", tap R 1/2", right-hand thread R 1". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 2", tap R 1 1/2", right thread R 1 1/2". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1 1/4", tap R1 1/4", right thread R 1". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1 1/2", tap R1 1/2", right thread R 1 1/4". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1 1/2", tap R1 1/2", right thread R 1". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1 1/2", tap R1 1/2", right thread R 1/2". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1 1/2", tap R1 1/2", right thread R 3/4". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1 1/2", tap R1 1/4", right thread R 1 1/2". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1 1/2", tap R1 1/4", right thread R 1 1/4". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1 1/2", tap R1", right thread R 1 1/2". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left-hand thread R 1 1/2", tap R 1", right-hand thread R 1 1/4". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1 1/2", tap R 1", right thread R 1". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left-hand thread R 1 1/2", tap R 1/2", right-hand thread R 1 1/2". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left-hand thread R 1 1/2", tap R 1/2", right-hand thread R 1 1/4". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left-hand thread R 1 1/2", tap R 3/4", right-hand thread R 1 1/2". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1 1/4", tap R1 1/4", right thread R 1". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1 1/4", tap R1 1/4", right thread R 1/2". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1 1/4", tap R1 1/4", right thread R 3/4". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1 1/4", tap R 1", right thread R 1". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left-hand thread R 1 1/4", tap R 1/2", right-hand thread R 1 1/4". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left-hand thread R 1 1/4", tap R 3/4", right-hand thread R 1 1/4". Maximum pressure 25 bar. Made of tempered hot-dip...
Cast iron T-fittings with reduced internal threads. Left-hand thread R 1 1/4", tap R 3/4", right-hand thread R 3/4". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1", tap R 1", right thread R 1/2". Maximum pressure 25 bar. Made of tempered hot-dip galvanized cast...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1", tap R 1", right thread R 3/4". Maximum pressure 25 bar. Made of tempered hot-dip galvanized cast...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1", tap 3/4", right thread R 1/2". Maximum pressure 25 bar. Made of tempered hot-dip galvanized cast...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 1/2", 3/4" branch, right thread R 1/2". Maximum pressure 25 bar. Made of tempered hot-dip galvanized...
Cast iron T-fittings with reduced internal threads. Left thread of fitting R 2 1/2", tap R 1 1/2", right thread R 2 1/2". Maximum pressure 25 bar. Made of tempered hot-dip...
