T-thread with lower external taper thread 6/4 - R 1/8"
Code: OX19-186
Free shipping
For purchases over 5,000 CZK
We guarantee
Extended warranty and service
Discount voucher
For every purchase
Return of goods within 30 days
Completely at our expense
Product detailed description

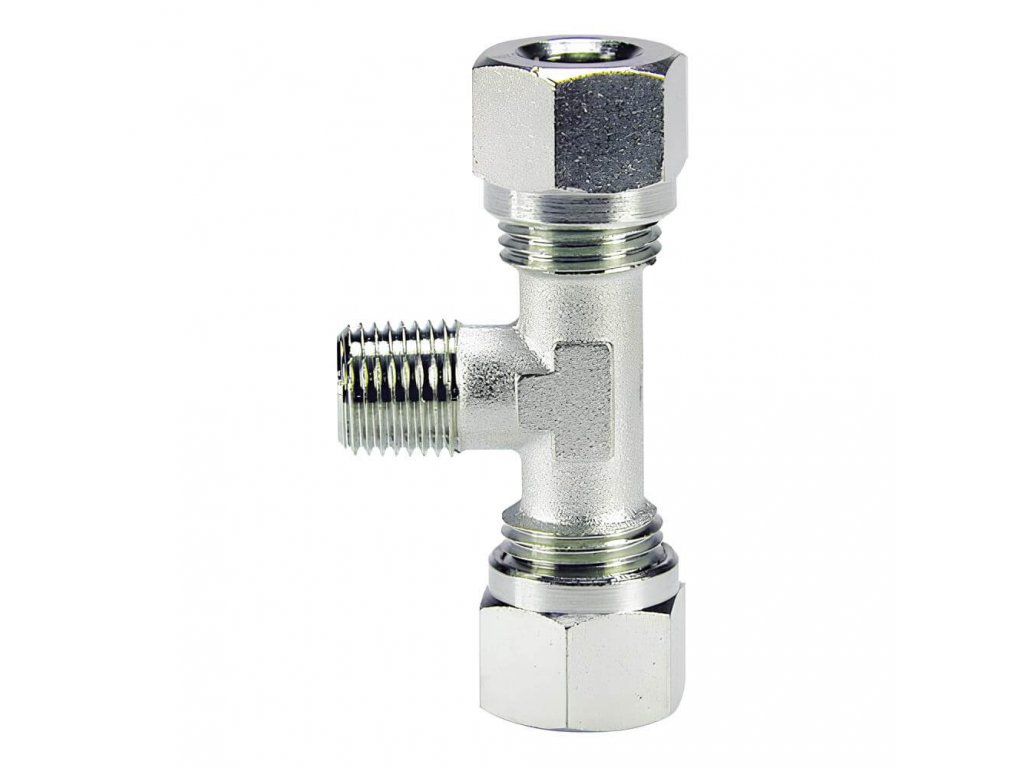

Stainless steel T-fittings with cutting ring - OX19-186
- conform to DIN 2353 standards for metal pipes
- working pressure 250 bar, can be used for metal pipes and plastic pipes in the case of the use of a cavity
- universal fittings for use in various applications, especially with high mechanical, pressure and chemical resistance requirements
Additional parameters
| Category: | T-fittings with bottom male tapered thread |
|---|---|
| Pressure: | 250 bar |
| Tubing: | 6 mm |
| Material: | Stainless steel |
| Nut: | 14 |
| Medium: | Various |
| Thread design: | Tapered R |
| L2: | 15 |
| Connection system: | With notch ring |
| In stock: | External warehouse |
