Angle sleeves for hollow screws
 |
|

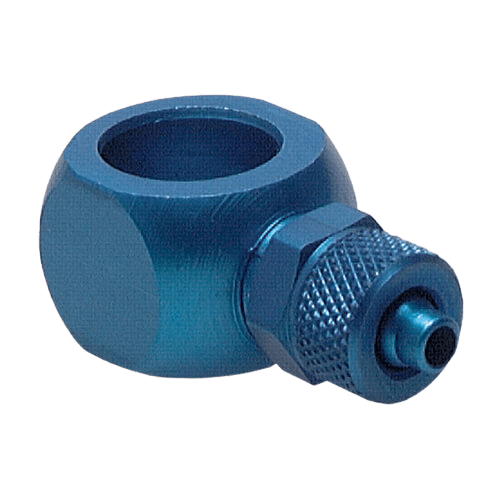

Angle socket with nut for hollow screws |
|||||
| Ordering number |
Tube mm |
Screw thread " |
Height mm |
The body material |
Matrix material |
| LKA-M54 | 4.3/3 mm | M5 | 10 | aluminium | aluminium |
| LKA-184 | 4.3/3 mm | G 1/8" | 15 | aluminium | aluminium |
| LKA-M56 | 6/4 mm | M5 | 10 | aluminium | aluminium |
| LKA-186 | 6/4 mm | G 1/8" | 15 | aluminium | aluminium |
| LKA-146 | 6/4 mm | G 1/4" | 15 | aluminium | aluminium |
| LKA-188 | 8/6 mm | G 1/8" | 15 | aluminium | aluminium |
| LKA-148 | 8/6 mm | G 1/4" | 15 | aluminium | aluminium |
| LKA-388 | 8/6 mm | G 3/8" | 15 | aluminium | aluminium |
| LKA-1412 | 12/9 mm | G 1/4" | 20 | aluminium | aluminium |
| LKA-3812 | 12/9 mm | G 3/8" | 20 | aluminium | aluminium |
Product sorting
List of products
Designed for 4,3/3 mm hose and G 1/8" screw. The fitting has a body and nut made of aluminium.The height is 15 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....
Designed for 8/6 mm hose and G 1/4" screw. The fitting has a body and nut made of aluminium.The height is 15 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....
Designed for 4,3/3 mm hose and M5 screw. The fitting has a body and nut made of aluminium.The height is 10 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....
Designed for 6/4 mm hose and M5 screw. The fitting has a body and nut made of aluminium.The height is 10 mm. Maximum working pressure 10 bar and temperature -10/+60 °C. Package...
Designed for 12/9 mm hose and G 1/4" screw. The fitting has a body and nut made of aluminium.The height is 20 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....
Designed for 6/4 mm hose and G 1/4" screw. The fitting has a body and nut made of aluminium.The height is 15 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....
Designed for 6/4 mm hose and G 1/8" screw. The fitting has a body and nut made of aluminium.The height is 15 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....
Designed for 8/6 mm hose and G 1/8" screw. The fitting has a body and nut made of aluminium.The height is 15 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....
Designed for 12/9 mm hose and G 3/8" screw. The fitting has a body and nut made of aluminium.The height is 20 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....
Designed for 8/6 mm hose and G 3/8" screw. The fitting has a body and nut made of aluminium.The height is 15 mm. Maximum working pressure 10 bar and temperature -10/+60 °C....
