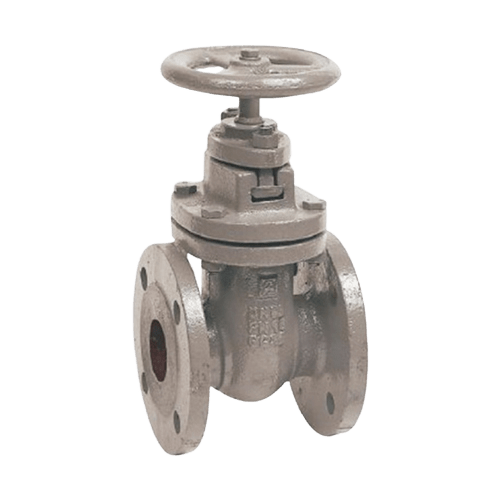

Gate valves USL according to EN1092-1
 |
|
UVL shut-off valves with handwheel for manual shut-off |
|||||
| Ordering number |
Luminosity DN |
Pressure bar |
Temperature °C |
Material body |
Material stuffing box |
| USL-040 | 40 | 10 | up to +90°C | cast iron GG25 | graphite |
| USL-050 | 50 | 10 | up to +90°C | cast iron GG25 | graphite |
| USL-065 | 65 | 10 | up to +90°C | cast iron GG25 | graphite |
| USL-080 | 80 | 10 | up to +90°C | cast iron GG25 | graphite |
| USL-100 | 100 | 10 | up to +90°C | cast iron GG25 | graphite |
| USL-125 | 125 | 10 | up to +90°C | cast iron GG25 | graphite |
| USL-150 | 150 | 10 | up to +90°C | cast iron GG25 | graphite |
| USL-200 | 200 | 6 | up to +90°C | cast iron GG25 | graphite |
| USL-250 | 250 | 6 | up to +90°C | cast iron GG25 | graphite |
| USL-300 | 300 | 6 | up to +90°C | cast iron GG25 | graphite |
Product sorting
List of products
Gate valves USL with flange DN 300 with infinitely variable handwheel control. Connection by flanges according to EN1092-1 type B. Made of GG25 cast iron.
Gate valves USL with flange DN 100 with infinitely variable handwheel control. Connection by flanges according to EN1092-1 type B. Made of GG25 cast iron.
Gate valves USL with flange DN 125 with infinitely variable handwheel control. Connection by flanges according to EN1092-1 type B. Made of GG25 cast iron.
Gate valves USL with flange DN 150 with infinitely variable handwheel control. Connection by flanges according to EN1092-1 type B. Made of GG25 cast iron.
Gate valves USL with flange DN 200 with infinitely variable handwheel control. Connection by flanges according to EN1092-1 type B. Made of GG25 cast iron.
Gate valves USL with flange DN 250 with infinitely variable handwheel control. Connection by flanges according to EN1092-1 type B. Made of GG25 cast iron.
Gate valves USL with flange DN 40 with infinitely variable handwheel control. Connection by flanges according to EN1092-1 type B. Made of GG25 cast iron.
Gate valves USL with flange DN 50 with infinitely variable handwheel control. Connection by flanges according to EN1092-1 type B. Made of GG25 cast iron.
Gate valves USL with flange DN 65 with infinitely variable handwheel control. Connection by flanges according to EN1092-1 type B. Made of GG25 cast iron.
Gate valves USL with flange DN 80 with infinitely variable handwheel control. Connection by flanges according to EN1092-1 type B. Made of GG25 cast iron.
