    Home / Couplings & fittings / Plastic socket couplings; socket blue / L-couplings; swivel male thread R

    L-couplings socket swivel external tapered thread R

    Rohové nástrčné šroubení otočné s vnějším kuželovým závitem R
    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

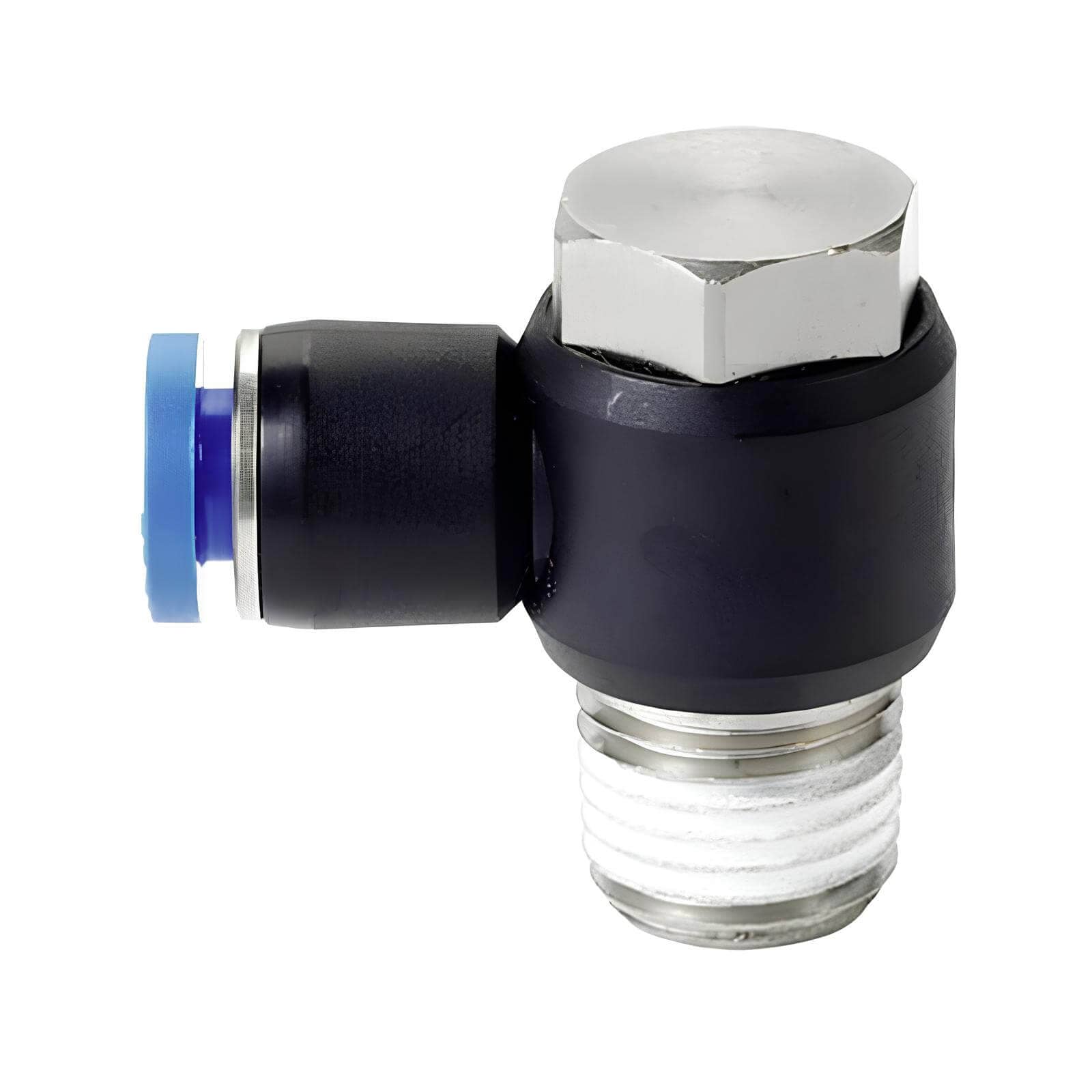

    L-coupling swivel socket with external tapered thread R
    Ordering
    number    		 Tube
    mm    		 Thread
    "    		 Length
    mm    		 Height
    mm    		 SW
    mm    		 Thread length
    mm
    PH-M54 4 mm M5 24 20 8 4,5
    PH-184 4 mm R1/8" 28 26 12 9
    PH-144 4 mm R1/4" 32 31 14 12
    PH-M56 6 mm M5 28 20 8 4,5
    PH-186 6 mm R1/8" 30 26 12 9
    PH-146 6 mm R1/4" 32 31 14 12
    PH-386 6 mm R3/8" 37 35 19 13
    PH-188 8 mm R1/8" 32 25 12 4,5
    PH-148 8 mm R1/4" 38 27 14 9
    PH-388 8 mm R3/8" 40 36 19 12
    PH-128 8 mm R1/2" 43 40 24 13
    PH-1810 10 mm R1/8" 29 20 12 7,5
    PH-1410 10 mm R1/4" 36 31 14 12
    PH-3810 10 mm R3/8" 42 36 19 13
    PH-1210 10 mm R1/2" 45 40 24 17
    PH-1412 12 mm R1/4" 37 31 14 12
    PH-3812 12 mm R3/8" 46 32 19 13
    PH-1212 12 mm R1/2" 47 40 24 17

    Bestsellers

    Swivel L-coupling 10 - R1/8"
    Stock (368 pcs)
    Code: PH-1810
    Was: €2,77  (–5 %)
    €2,63
    (€2,17 excl. VAT)
    L-coupling swivel 12 - R1/2"
    Stock (78 pcs)
    Code: PH-1212
    Was: €6,22  (–4 %)
    €5,91
    (€4,88 excl. VAT)
    L-coupling swivel 12 - R3/8"
    Stock (156 pcs)
    Code: PH-3812
    Was: €6,38  (–5 %)
    €6,06
    (€5,01 excl. VAT)

    Product sorting

    5 items total

    List of products

    L-coupling swivel 6 - R1/4"
    Tip
    €4,98 –5 %
    L-coupling swivel 6 - R1/4"
    Stock (126 pcs)
    €3,91 excl. VAT
    €4,73 / pcs

    Swivel socket l-coupling in corner plastic version with 1/4" male tapered thread. Quick and easy installation of plastic tubing with 6 mm outer diameter. Designed especially for...

    Code: PH-146
    L-coupling swivel 8 - R1/4"
    Tip
    €4,63 –4 %
    L-coupling swivel 8 - R1/4"
    Stock (81 pcs)
    €3,64 excl. VAT
    €4,40 / pcs

    Swivel socket l-coupling in corner plastic version with 1/4" male tapered thread. Quick and easy installation of plastic tubing with 8 mm outer diameter. Designed especially for...

    Code: PH-148
    L-coupling swivel 4 - R1/4"
    Tip
    €4,43 –4 %
    L-coupling swivel 4 - R1/4"
    Stock (188 pcs)
    €3,48 excl. VAT
    €4,21 / pcs

    Swivel socket l-coupling in corner plastic version with 1/4" male tapered thread. Quick and easy installation of plastic tubing with 4 mm outer diameter. Designed especially for...

    Code: PH-144
    Swivel L-coupling 10 - R1/4"
    Tip
    €5,19 –5 %
    Swivel L-coupling 10 - R1/4"
    Stock (470 pcs)
    €4,07 excl. VAT
    €4,93 / pcs

    Swivel socket l-coupling in corner plastic version with 1/4" male tapered thread. Quick and easy installation of plastic tubing with 10 mm outer diameter. Designed especially...

    Code: PH-1410
    L-coupling swivel 12 - R1/4"
    Tip
    €6,38 –5 %
    L-coupling swivel 12 - R1/4"
    Stock (67 pcs)
    €5,01 excl. VAT
    €6,06 / pcs

    Swivel socket l-coupling in corner plastic version with 1/4" male tapered thread. Quick and easy installation of plastic tubing with 12 mm outer diameter. Designed especially...

    Code: PH-1412
