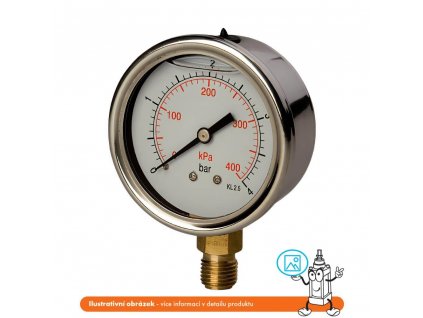

    GS Glycerine Pressure Gauges for measuring the pressure of the medium

    Manometr nerezový s glycerinovou náplní pro měření tlaku v médiu s tlakovými rázy
    • Shockproof design of the manometer, glycerine filling makes it easy to read the measured pressure
    • Materials used: pressed brass body, brass measuring member and pointer, acrylic windscreen
    • Pressure gauges with bottom and rear connection, designed for pressure measurement of non-aggressive media with higher requirements for mechanical resistance of the instrument and accuracy up to 1.6% tolerance

    Glycerine gauges GS - side version 63 mm - 1/4"
    Ordering
    number    		 Diameter
    pointers
    mm    		 Pressure range
    bar    		 Connection Thread
    "    		 Class
    accuracy
    %    		 Operational
    temperature
    °C    		 Glycerinový manometr stranový 63 mm nerezové pouzdro
    GS04-01 63 -1 / 0 lower 1/4" 1,6% -20/+60
    GS04-09 63 0 / 1 lower 1/4" 1,6% -20/+60
    GS04-10 63 0 / 1,6 lower 1/4" 1,6% -20/+60
    GS04-11 63 0 / 2,5 lower 1/4" 1,6% -20/+60
    GS04-12 63 0 / 4 lower 1/4" 1,6% -20/+60
    GS04-13 63 0 / 6 lower 1/4" 1,6% -20/+60
    GS04-14 63 0 / 10 lower 1/4" 1,6% -20/+60
    GS04-15 63 0 / 16 lower 1/4" 1,6% -20/+60
    GS04-16 63 0 / 25 lower 1/4" 1,6% -20/+60
    GS04-17 63 0 / 40 lower 1/4" 1,6% -20/+60
    GS04-18 63 0 / 60 lower 1/4" 1,6% -20/+60
    GS04-19 63 0 / 100 lower 1/4" 1,6% -20/+60
    GS04-20 63 0 / 160 lower 1/4" 1,6% -20/+60
    GS04-21 63 0 / 250 lower 1/4" 1,6% -20/+60
    GS04-22 63 0 / 400 lower 1/4" 1,6% -20/+60
    GS04-23 63 0 / 600 lower 1/4" 1,6% -20/+60

    Glycerine pressure gauges GZ - rear version 63 mm - 1/4"
    Ordering
    number    		 Diameter
    pointers
    mm    		 Pressure range
    bar    		 Connection Thread
    "    		 Class
    accuracy
    %    		 Operational
    temperature
    °C    		 Glycerinový manometr zadní 63 mm nerezové pouzdro
    GZ04-01 63 -1 / 0 rear 1/4" 1,6% -20/+60
    GZ04-09 63 0 / 1 rear 1/4" 1,6% -20/+60
    GZ04-10 63 0 / 1,6 rear 1/4" 1,6% -20/+60
    GZ04-11 63 0 / 2,5 rear 1/4" 1,6% -20/+60
    GZ04-12 63 0 / 4 rear 1/4" 1,6% -20/+60
    GZ04-13 63 0 / 6 rear 1/4" 1,6% -20/+60
    GZ04-14 63 0 / 10 rear 1/4" 1,6% -20/+60
    GZ04-15 63 0 / 16 rear 1/4" 1,6% -20/+60
    GZ04-16 63 0 / 25 rear 1/4" 1,6% -20/+60
    GZ04-17 63 0 / 40 rear 1/4" 1,6% -20/+60
    GZ04-18 63 0 / 60 rear 1/4" 1,6% -20/+60
    GZ04-19 63 0 / 100 rear 1/4" 1,6% -20/+60
    GZ04-20 63 0 / 160 rear 1/4" 1,6% -20/+60
    GZ04-21 63 0 / 250 rear 1/4" 1,6% -20/+60
    GZ04-22 63 0 / 400 rear 1/4" 1,6% -20/+60
    GZ04-23 63 0 / 600 rear 1/4" 1,6% -20/+60

    Glycerine gauges GS - side version 100 mm - 1/2"
    Ordering
    number    		 Diameter
    pointers
    mm    		 Pressure range
    Bar    		 Connection Thread
    "    		 Class
    accuracy
    %    		 Operational
    temperature
    °C    		 Glycerinový manometr stranový 100 mm nerezové pouzdro
    GS06-01 100 -1 / 0 lower 1/2" 1,6% -20/+60
    GS06-09 100 0 / 1 lower 1/2" 1,6% -20/+60
    GS06-10 100 0 / 1,6 lower 1/2" 1,6% -20/+60
    GS06-11 100 0 / 2,5 lower 1/2" 1,6% -20/+60
    GS06-12 100 0 / 4 lower 1/2" 1,6% -20/+60
    GS06-13 100 0 / 6 lower 1/2" 1,6% -20/+60
    GS06-14 100 0 / 10 lower 1/2" 1,6% -20/+60
    GS06-15 100 0 / 16 lower 1/2" 1,6% -20/+60
    GS06-16 100 0 / 25 lower 1/2" 1,6% -20/+60
    GS06-17 100 0 / 40 lower 1/2" 1,6% -20/+60
    GS06-18 100 0 / 60 lower 1/2" 1,6% -20/+60
    GS06-19 100 0 / 100 lower 1/2" 1,6% -20/+60
    GS06-20 100 0 / 160 lower 1/2" 1,6% -20/+60
    GS06-21 100 0 / 250 lower 1/2" 1,6% -20/+60
    GS06-22 100 0 / 400 lower 1/2" 1,6% -20/+60
    GS06-23 100 0 / 600 lower 1/2" 1,6% -20/+60

    Glycerine manometers GS - side version 100 mm - M20 x 1,5
    Ordering
    number    		 Diameter
    pointers
    mm    		 Pressure range
    bar    		 Connection Thread
    metric    		 Class
    accuracy
    %    		 Operational
    temperature
    °C    		 Glycerinový manometr stranový 63 mm metrický závit M20 x 1,5
    GS07-01 100 -1 / 0 lower M20 x 1.5 1,6% -20/+60
    GS07-09 100 0 / 1 lower M20 x 1.5 1,6% -20/+60
    GS07-10 100 0 / 1,6 lower M20 x 1.5 1,6% -20/+60
    GS07-11 100 0 / 2,5 lower M20 x 1.5 1,6% -20/+60
    GS07-12 100 0 / 4 lower M20 x 1.5 1,6% -20/+60
    GS07-13 100 0 / 6 lower M20 x 1.5 1,6% -20/+60
    GS07-14 100 0 / 10 lower M20 x 1.5 1,6% -20/+60
    GS07-15 100 0 / 16 lower M20 x 1.5 1,6% -20/+60
    GS07-16 100 0 / 25 lower M20 x 1.5 1,6% -20/+60
    GS07-17 100 0 / 40 lower M20 x 1.5 1,6% -20/+60
    GS07-18 100 0 / 60 lower M20 x 1.5 1,6% -20/+60
    GS07-19 100 0 / 100 lower M20 x 1.5 1,6% -20/+60
    GS07-20 100 0 / 160 lower M20 x 1.5 1,6% -20/+60
    GS07-21 100 0 / 250 lower M20 x 1.5 1,6% -20/+60
    GS07-22 100 0 / 400 lower M20 x 1.5 1,6% -20/+60
    GS07-23 100 0 / 600 lower M20 x 1.5 1,6% -20/+60
