Fittings with external pipe threads
 |
|

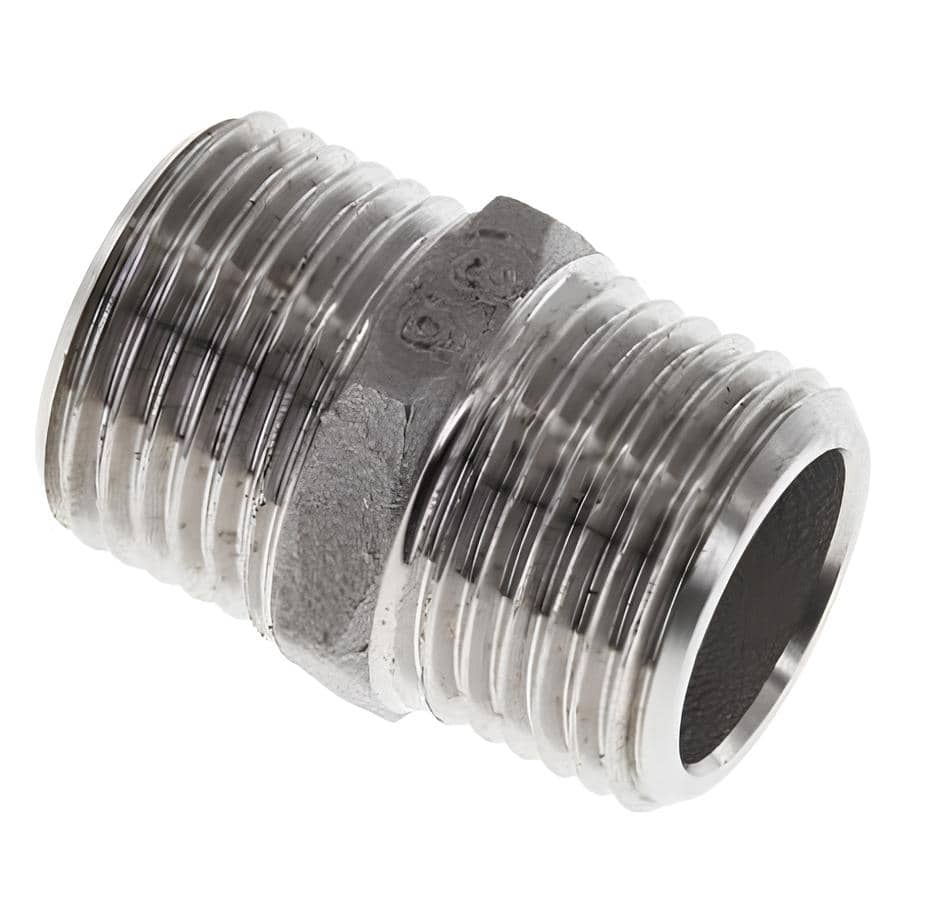

Screw adapter with external pipe threads |
||||||
| Ordering number |
Thread 1 " |
Thread length " |
Thread 2 " |
Thread length mm |
Length mm |
SW mm |
| A005-M518 | M5 | 4 | 1/8" | 6 | 14 | 14 |
| A005-1818 | 1/8" | 6 | 1/8" | 6 | 16,5 | 14 |
| A005-1814 | 1/8" | 6 | 1/4" | 8 | 19 | 17 |
| A005-1838 | 1/8" | 6 | 3/8" | 9 | 20 | 19 |
| A005-1414 | 1/4" | 8 | 1/4" | 8 | 21 | 17 |
| A005-1438 | 1/4" | 8 | 3/8" | 9 | 22 | 19 |
| A005-1412 | 1/4" | 8 | 1/2" | 10 | 23,5 | 24 |
| A005-3838 | 3/8" | 9 | 3/8" | 10 | 23 | 19 |
| A005-3812 | 3/8" | 9 | 1/2" | 10 | 24,5 | 24 |
| A005-1212 | 1/2" | 10 | 1/2" | 10 | 25,5 | 24 |
| A005-1234 | 1/2" | 10 | 3/4" | 11 | 27 | 30 |
| A005-3434 | 3/4" | 11 | 3/4" | 11 | 28 | 30 |
| A005-3410 | 3/4" | 11 | 1" | 11 | 30 | 36 |
| A005-1010 | 1" | 12 | 1" | 12 | 31 | 36 |
Product sorting
List of products
A005 pipe thread fitting with M5 thread, thread length 4. Thread 2 G 1/8, thread length 6". Version in brass with nickel-plated finish. Applications for fluid power,...
Pipe thread fitting A005 with G 3/8" thread, thread length 9. Second thread G 3/8", thread length 10. Version in brass with nickel-plated finish. Applications for fluid power,...
A005 pipe thread fitting with G 1/4" thread, 8 thread length. Thread 2 G 1/4", thread length 8. Version in brass with nickel-plated finish. Applications for fluid power,...
A005 pipe thread fitting with G 1/2" thread, 10 thread length. Second thread G 3/4", thread length 11. Version in brass with nickel-plated finish. Applications for fluid power,...
A005 pipe thread fitting with G 1/2" thread, 10 thread length. Second thread G 1/2", thread length 10. Version in brass with nickel-plated finish. Applications for fluid power,...
A005 pipe thread fitting with G 1/8" threads, thread length 6. Thread 2 G 3/8", thread length 9. Version in brass with nickel-plated finish. Applications for fluid power,...
A005 pipe thread fitting with G 1/8" threads, thread length 6. Thread 2 G 1/4", thread length 8. Version in brass with nickel-plated finish. Applications for fluid power,...
A005 pipe thread fitting with G 1/8" thread, thread length 6. Thread 2 G 1/8", thread length 6. Version in brass with nickel-plated finish. Applications for fluid power,...
A005 pipe thread fitting with G 1/4" thread, 8 thread length. Thread 2 G 3/8", thread length 9. Version in brass with nickel-plated finish. Applications for fluid power,...
A005 pipe thread fitting with G 1/4" thread, 8 thread length. Second thread G 1/2", thread length 10. Version in brass with nickel-plated finish. Applications for fluid power,...
Pipe thread fitting A005 with G 3/8" thread, thread length 9. Second thread G 1/2", thread length 10. Version in brass with nickel-plated finish. Applications for fluid power,...
Pipe thread fitting A005 with G 3/4" thread, thread length 11. Second thread G 3/4", thread length 11. Version in brass with nickel-plated finish. Applications for fluid power,...
Pipe thread fitting A005 with G 3/4" thread, thread length 11. Second thread G 1", thread length 12. Version in brass with nickel-plated finish. Applications for fluid power,...
A005 pipe thread fitting with G 1" thread, thread length 12. Second thread G 1", thread length 12. Version in brass with nickel-plated finish. Applications for fluid power,...
