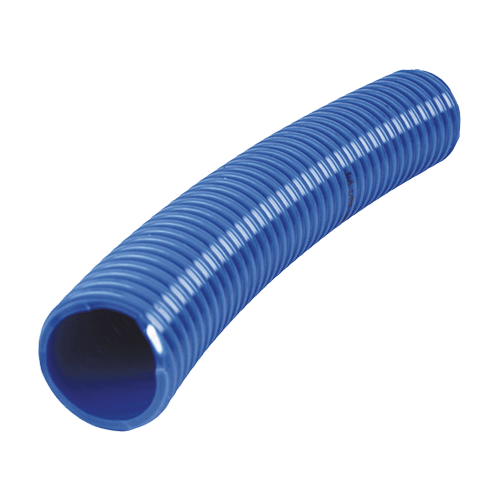

Fecal Hose Fecal Profi PVC
 |
|
Fecal hose for sump suction - Fecal Profi PVC |
|||||||
| Ordering number |
Diameter mm |
Working pressure bar |
Negative pressure kPa |
Bend radius mm |
Temperature °C |
Weight kg/m |
Packaging m |
| FEP-020 | 20/27 | 7 | 100 | 80 | -20/+60 | 0,31 | 30 |
| FEP-025 | 25/33 | 7 | 100 | 100 | -20/+60 | 0,41 | 30 |
| FEP-030 | 30/38 | 7 | 100 | 120 | -20/+60 | 0,55 | 30 |
| FEP-032 | 32/40 | 7 | 100 | 130 | -20/+60 | 0,60 | 30 |
| FEP-035 | 35/43 | 6 | 100 | 140 | -20/+60 | 0,63 | 30 |
| FEP-038 | 38/47 | 6 | 100 | 155 | -20/+60 | 0,70 | 30 |
| FEP-040 | 40/49 | 6 | 100 | 160 | -20/+60 | 0,73 | 30 |
| FEP-045 | 45/54 | 6 | 100 | 180 | -20/+60 | 0,85 | 30 |
| FEP-050 | 50/60 | 5 | 100 | 200 | -20/+60 | 1,00 | 30 |
| FEP-060 | 60/70 | 4,5 | 90 | 240 | -20/+60 | 1,25 | 30 |
| FEP-063 | 63/73 | 4,5 | 90 | 260 | -20/+60 | 1,39 | 30 |
| FEP-070 | 70/81 | 4,5 | 90 | 280 | -20/+60 | 1,60 | 30 |
| FEP-076 | 76/87 | 4 | 90 | 310 | -20/+60 | 1,70 | 30 |
| FEP-080 | 80/93 | 3,5 | 90 | 320 | -20/+60 | 1,85 | 30 |
| FEP-090 | 90/103 | 3,5 | 90 | 360 | -20/+60 | 2,15 | 30 |
| FEP-100 | 100/113 | 3 | 85 | 410 | -20/+60 | 2,70 | 30 |
| FEP-105 | 105/119 | 3 | 85 | 410 | -20/+60 | 2,80 | 30 |
| FEP-110 | 110/124 | 3 | 85 | 450 | -20/+60 | 3,00 | 30 |
| FEP-120 | 120/135 | 2,5 | 80 | 480 | -20/+60 | 3,35 | 30 |
| FEP-127 | 127/142 | 2,5 | 80 | 510 | -20/+60 | 3,60 | 30 |
| FEP-150 | 150/168 | 2 | 80 | 610 | -20/+60 | 5,00 | 30 |
| Important notice : Some pipe sizes are only available in the whole package. Info in product detail. | |||||||
Product sorting
List of products
Fecal hose with an inner diameter of 20 mm and an operating temperature of -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a...
Fecal hose with inner diameter 25 mm and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of...
Fecal hose with inner diameter 100mm and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of...
Faecal hose with inner diameter 38 mm and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of...
Fecal hose with 120mm inner diameter and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of...
Fecal hose with inner diameter 45mm and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of hardened...
Fecal hose with inner diameter 35mm and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of hardened...
Fecal hose with inner diameter 105mm and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of...
Fecal hose with 127mm inner diameter and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of...
Fecal hose with 63mm inner diameter and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of hardened...
Faecal hose with inner diameter 90mm and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of...
Fecal hose with an inner diameter of 32mm and an operating temperature of -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a...
Fecal hose with 70mm inner diameter and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of hardened...
Fecal hose with inner diameter 110mm and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of...
Faecal hose with inner diameter 80mm and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of...
Fecal hose with 76mm inner diameter and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of hardened...
Fecal hose with 150mm inner diameter and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of...
Faecal hose with inner diameter 30mm and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of...
Fecal hose with inner diameter 40mm and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of hardened...
Fecal hose with inner diameter 50mm and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of hardened...
Fecal hose with 60mm inner diameter and working temperature -20/+60°C, well flexible even at low temperatures. Made of softened PVC in blue, reinforced with a spiral of hardened...
