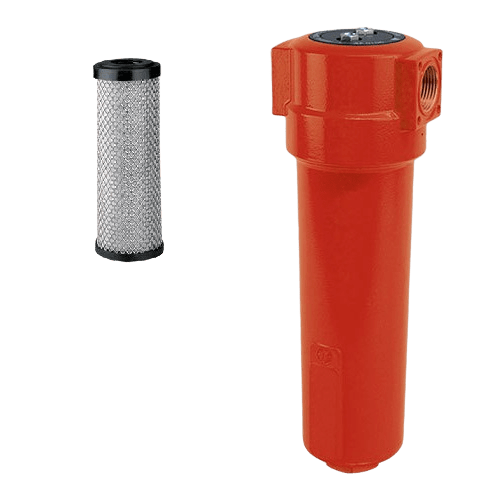

Silicone-free AFSS microfilters up to 16 bar
 |
|
Silicone-free AFSS microfilters up to 0.01 µm purity |
||||||||||
| Ordering number |
Connection " |
Pressure bar |
Flow rates | Dimensions mm | Weight kg |
Filtration liner |
||||
| l/min | m³/h | and | b | c | d | |||||
| AFSS-0056 | 3/8" | 16 | 1 000 | 60 | 187 | 88 | 20 | 60 | 0,7 | AFSS-0056V |
| AFSS-0076 | 1/2" | 16 | 1 250 | 75 | 187 | 88 | 20 | 60 | 0,7 | AFSS-0076V |
| AFSS-0106 | 3/4" | 16 | 2 000 | 120 | 257 | 88 | 20 | 80 | 0,8 | AFSS-0106V |
| AFSS-0186 | 1" | 16 | 3 300 | 198 | 263 | 125 | 32 | 100 | 1,8 | AFSS-0186V |
| AFSS-0306 | 1" | 16 | 5 583 | 335 | 363 | 125 | 32 | 120 | 2,5 | AFSS-0306V |
| AFSS-0476 | 1 1/2" | 16 | 8 500 | 510 | 461 | 125 | 32 | 140 | 2,5 | AFSS-0476V |
| AFSS-0706 | 1 1/2" | 16 | 13 000 | 780 | 640 | 125 | 32 | 160 | 3,2 | AFSS-0706V |
| AFSS-0946 | 2" | 16 | 16 667 | 1 000 | 684 | 163 | 43 | 520 | 5,1 | AFSS-0946V |
| AFSS-1506 | 2" | 16 | 25 000 | 1 500 | 935 | 163 | 43 | 770 | 7,1 | AFSS-1506V |
| AFSS-1756 | 2 1/2" | 16 | 28 000 | 1 680 | 935 | 163 | 43 | 770 | 6,9 | AFSS-1756V |
| AFSS-2006 | 3" | 16 | 36 000 | 2 160 | 795 | 240 | 59 | 630 | 12,9 | AFSS-2006V |
| AFSS-2406 | 3" | 16 | 46 000 | 2 760 | 1000 | 240 | 59 | 780 | 14,0 | AFSS-2406V |
| Reference flow conditions: temperature +20°C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us! | ||||||||||
Product sorting
List of products
Silicone-free microfilter AFSS with G3/8" connection thread designed for industrial painting applications, eliminates impurities that degrade coating quality. Filtration...
Filter element AFSS-0056V designed for use in industrial painting applications, eliminates impurities that degrade coating quality. Filtration capability 0.01 µm, maximum...
Filter cartridge AFSS-0076V designed for application in industrial painting, eliminates impurities that degrade coating quality. Filtration capability 0.01 µm, maximum working...
Filter element AFSS-0186V designed for use in industrial painting applications, eliminates contaminants that degrade coating quality. Filtration capability of 0.01 µm, maximum...
Filter element AFSS-0306V designed for use in industrial painting applications, eliminates contaminants that degrade coating quality. Filtration capability 0.01 µm, maximum...
Filter cartridge AFSS-0476V designed for use in industrial painting applications, eliminates contaminants that degrade coating quality. Filtration capability 0.01 µm, maximum...
Filter element AFSS-0706V designed for use in industrial painting applications, eliminates impurities that degrade coating quality. Filtration capability 0.01 µm, maximum...
The AFSS-0946V filter cartridge is designed for use in industrial painting applications, eliminating contaminants that degrade coating quality. Filtration capability of 0.01 µm,...
Filter cartridge AFSS-1506V designed for use in industrial painting applications, eliminates impurities that degrade coating quality. Filtration capability 0.01 µm, maximum...
Filter cartridge AFSS-2006V designed for use in industrial painting applications, eliminates contaminants that degrade coating quality. Filtration capacity 0.01 µm, maximum...
The AFSS-0106V filter element is designed for use in industrial painting applications, eliminating contaminants that degrade coating quality. Filtration capability of 0.01 µm,...
Filter cartridge AFSS-1756V designed for application in industrial painting, eliminates impurities that degrade coating quality. Filtration capability 0.01 µm, maximum working...
Filter cartridge AFSS-2406V intended for use in industrial painting applications, eliminates contaminants that degrade coating quality. Filtration capability 0.01 µm, maximum...
Silicone-free microfilter AFSS with G1 1/2" connecting thread designed for use in industrial painting applications, eliminates impurities that degrade coating quality....
Silicone-free microfilter AFSS with G1 1/2" connecting thread designed for use in industrial painting applications, eliminates impurities that degrade coating quality....
Silicone-free microfilter AFSS with G1" connection thread designed for use in industrial painting applications, eliminating contaminants that degrade coating quality. Filtration...
Silicone-free microfilter AFSS with G1" connection thread designed for use in industrial painting applications, eliminates impurities that degrade coating quality. Filtration...
Silicone-free microfilter AFSS with G1/2" connection thread designed for use in industrial painting applications, eliminates impurities that degrade paint finish quality....
The AFSS silicone-free microfilter with G2 1/2" connection thread is designed for use in industrial painting applications, eliminating impurities that degrade coating quality....
Silicone-free microfilter AFSS with G2" connection thread, designed for use in industrial painting applications, eliminates contaminants that impair coating quality. Filtration...
Oil-free (silicone-free) microfilter AFSS with G2" connection thread designed for use in industrial painting applications, eliminates impurities that degrade coating quality....
Silicone-free microfilter AFSS with G3" connection thread, designed for use in industrial painting applications, eliminates impurities that degrade coating quality. Filtration...
The AFSS silicone-free microfilter with G3" connection thread is designed for use in industrial painting applications, eliminating impurities that degrade paint quality....
Silicone-free microfilter AFSS with G3/4" connection thread designed for use in industrial painting applications, eliminates impurities that degrade coating quality. Filtration...
