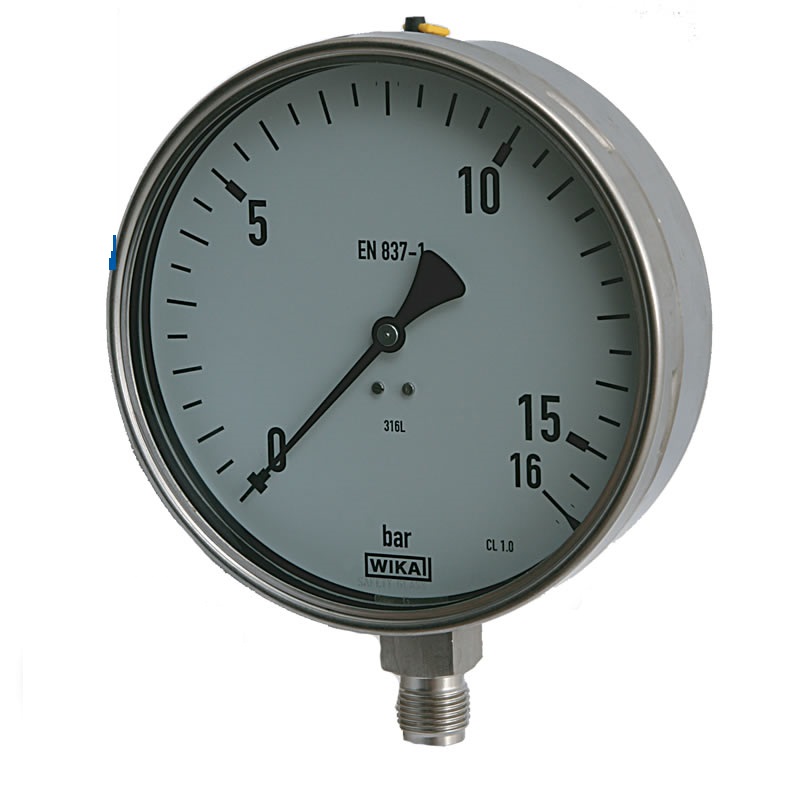

Stainless steel manometers 160 mm for measuring the pressure of the medium
 |
|
Stainless steel side gauges - indicator 160 mm and bottom connection 1/2" |
|||||||
| Ordering number |
Diameter mm |
Pressure range bar |
Connection | Thread " |
Class accuracy % |
Operating temperature °C |
 |
| MNS501 | 160 | -1 to 0 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS502 | 160 | -1 to 0.6 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS503 | 160 | -1 to 1.5 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS504 | 160 | -1 to 3 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS505 | 160 | -1 to 5 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS506 | 160 | -1 to 9 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS507 | 160 | -1 to 15 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS508 | 160 | 0 to 0.6 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS509 | 160 | 0 to 1 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS510 | 160 | 0 to 1.6 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS511 | 160 | 0 to 2.5 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS512 | 160 | 0 to 4 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS513 | 160 | 0 to 6 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS514 | 160 | 0 to 10 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS515 | 160 | 0 to 16 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS516 | 160 | 0 to 25 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS517 | 160 | 0 to 40 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS518 | 160 | 0 to 60 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS519 | 160 | 0 to 100 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS520 | 160 | 0 to 160 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS521 | 160 | 0 to 250 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS522 | 160 | 0 to 400 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS523 | 160 | 0 to 600 | lower | 1/2" | 1,0% | -40/+60 | |
| MNS524 | 160 | 0 to 1000 | lower | 1/2" | 1,0% | -40/+60 | |
Stainless steel rear gauges - 160 mm indicator and 1/2" bottom connection |
|||||||
 |
Ordering number |
Diameter mm |
Pressure range bar |
Connection | Thread " |
Class accuracy % |
Operating temperature °C |
| MNZ613 | 160 | 0 to 6 | rear | 1/2" | 1,0% | -40/+60 | |
| MNZ614 | 160 | 0 to 10 | rear | 1/2" | 1,0% | -40/+60 | |
| MNZ615 | 160 | 0 to 16 | rear | 1/2" | 1,0% | -40/+60 | |
| MNZ616 | 160 | 0 to 25 | rear | 1/2" | 1,0% | -40/+60 | |
Product sorting
List of products
Stainless steel manometer with 160 mm gauge and pressure measurement range 0/10 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge and pressure measurement range 0/25 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range 0/160 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range -1/0 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range -1/0.6 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range -1/1.5 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range -1/15 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm indicator with pressure measurement range -1/3 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range -1/5 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range -1/9 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge and pressure measurement range 0/0.6 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge and pressure measurement range 0/1 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge and pressure measurement range 0/1.6 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range 0/100 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel gauge with 160 mm indicator with pressure measurement range 0/1000 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range 0/16 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range 0/2.5 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm indicator with pressure measurement range 0/250 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm indicator with pressure measurement range 0/4 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range 0/40 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range 0/400 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm indicator with pressure measurement range 0/6 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range 0/60 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range 0/600 bar with 1.0% deviation. Side connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge and pressure measurement range 0/10 bar with 1.0% deviation. Rear connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge with pressure measurement range 0/16 bar with 1.0% deviation. Rear connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm gauge and pressure measurement range 0/25 bar with 1.0% deviation. Rear connection 1/2". Suitable for demanding aggressive media for...
Stainless steel manometer with 160 mm indicator with pressure measurement range 0/6 bar with 1.0% deviation. Rear connection 1/2". Suitable for demanding aggressive media for...
