Branch with internal thread G1/2" 25 mm
Code: SR41-1225
Product detailed description

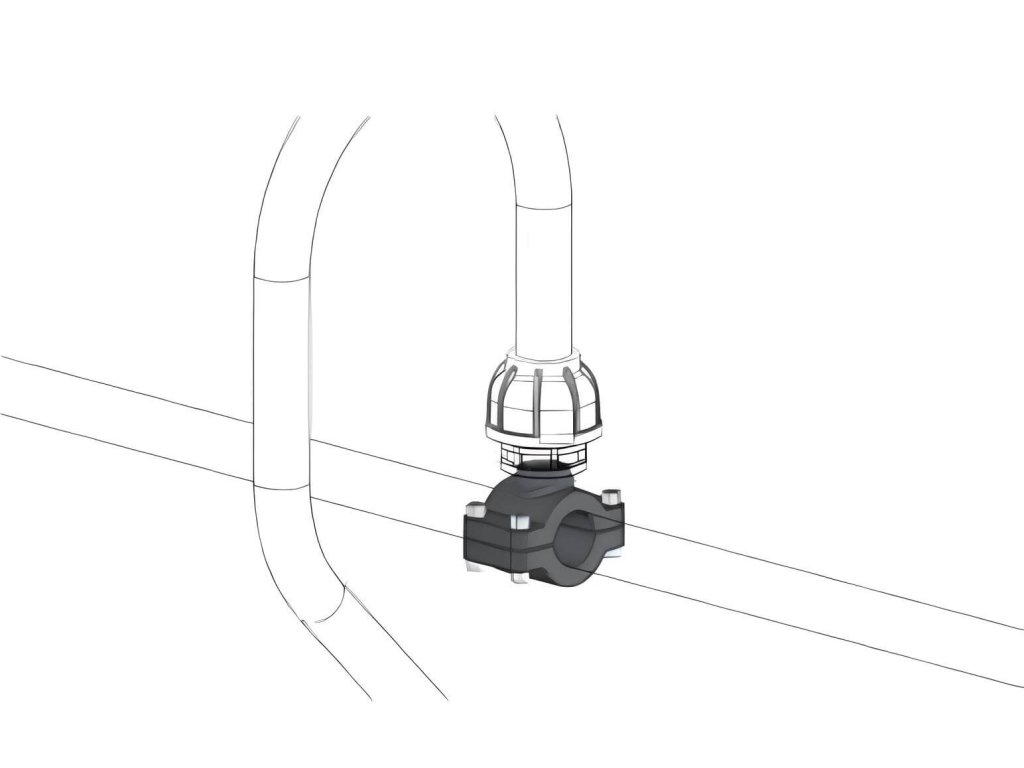

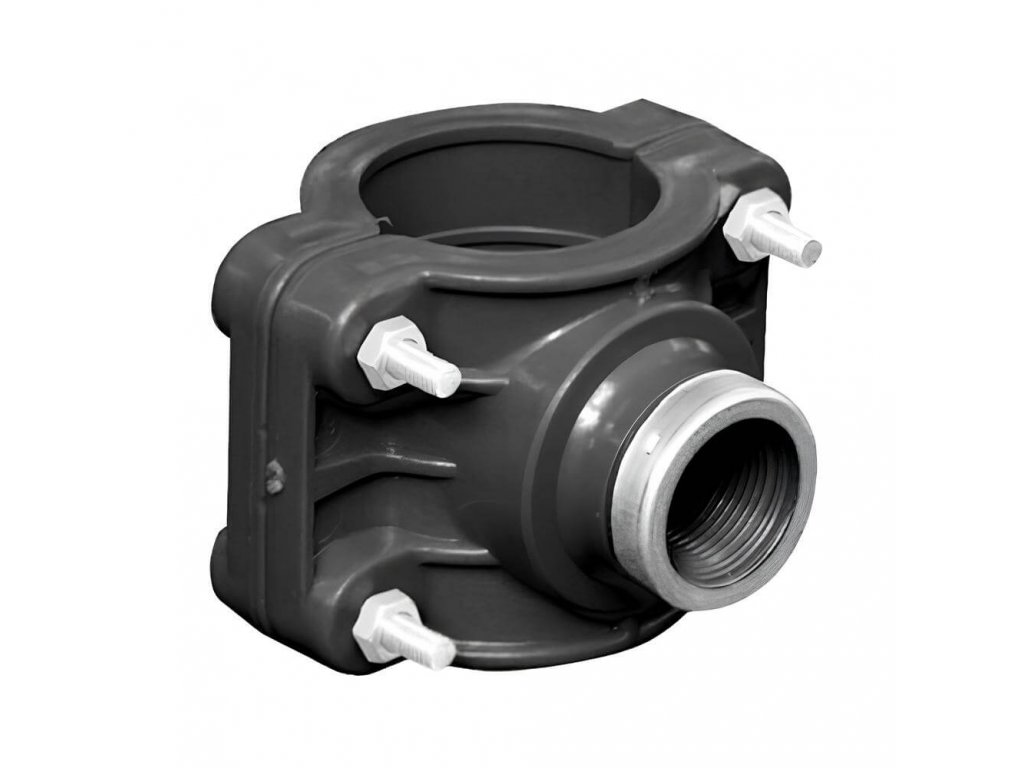

SICOAIR tap with female thread G1/2", 25 mm - SR41-1225
- diameter 25 mm
- thread G1/2"

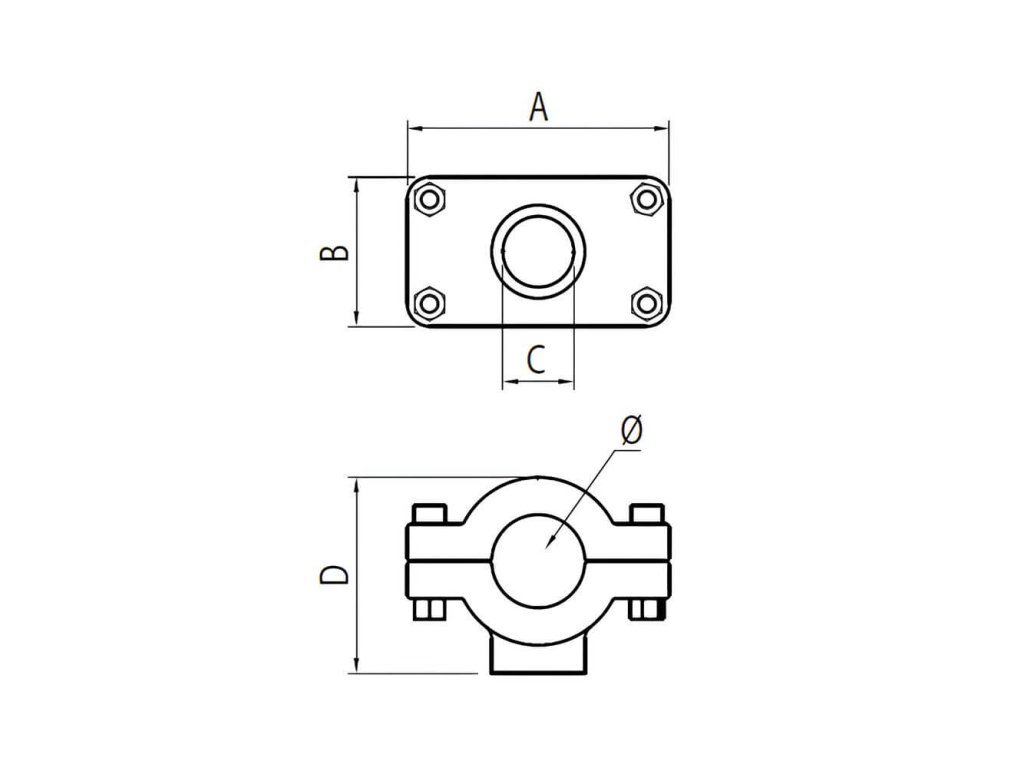

- length A 65 mm
- height B 40 mm
- weight 63 g
- working pressure -0,6 to 12 bar
Additional parameters
| Category: | Compressed air piping systems |
|---|---|
| Version: | Threaded branch |
| Pressure: | 12 bar |
| Material: | Nylon PA6 |
| Medium: | Compressed air |
| Working temperature: | -20/+70°C |
| Average: | 25 mm |
| Thread: | G 1/2" |
| Conduit: | 25 mm |
Potrubní systém stlačeného vzduchu SICOMAT AIR
Příslušenství potrubního systému SICOMAT AIR
Trubky potrubního systému SICOMAT AIR
Product rating
Be the first who will post an article to this item!
SICOMAT is an Italian maker of compressed air piping for workshops, service centres and production plants. It has made piping systems since 1985, and its range is now offered by the Italian company ALUSIC, which also makes aluminium structural profiles.
We offer four systems: aluminium pipes with nylon fittings SICOAIR, the dual profile SICOALU2 for two media, the large SICO110 profile and SQ push-in fittings for 15 to 28 mm pipes. They are joined without welding and the system can be extended at any time.
Italian manufacturerSICOMAT piping systems

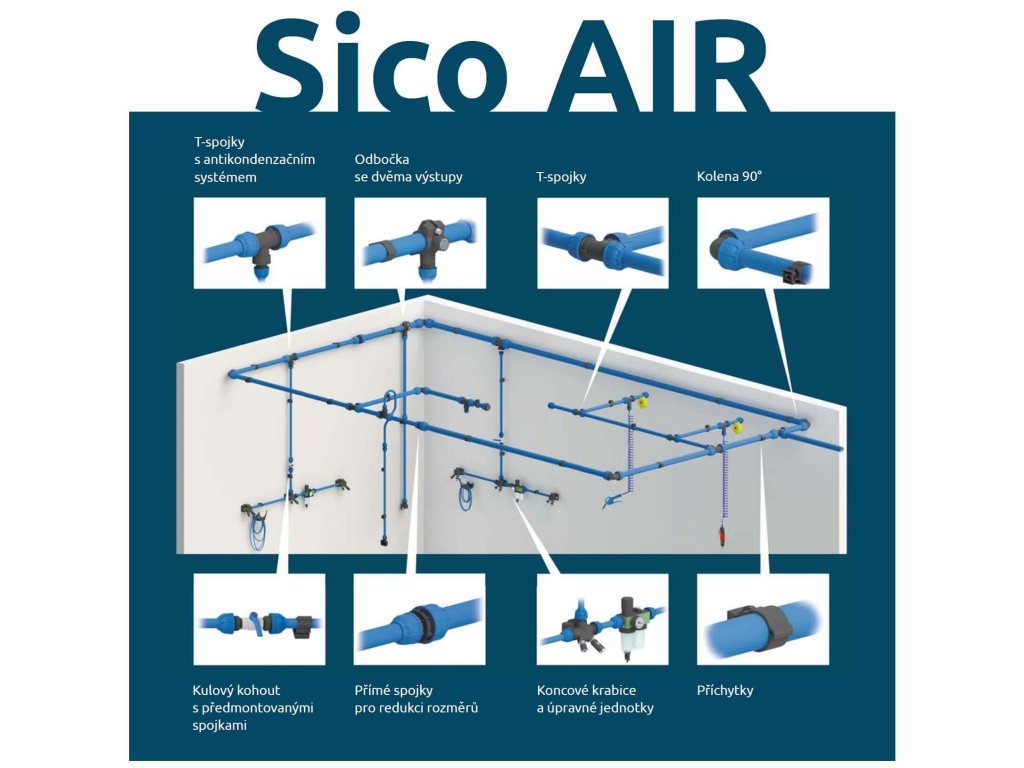

SICOAIR — pipes 20 to 63 mm
The core system for workshops and production. Powder-coated aluminium pipes and nylon fittings with a clamping nut.
- pipes 20, 25, 32, 40, 50 and 63 mm
- fittings −0.6 to 12 bar
- blue for air, green for nitrogen
SICOALU2 — two channels in one profile
Two media in one profile. Aluminium profile with 25 and 16 mm channels for air, nitrogen or water.
- two different pressures or two media
- branches anywhere on the profile, even under pressure
- shelves and holders hang on the profile
SICO110 — 110 mm profile
For large installations. Modular aluminium profile for large installations with very low pressure drop.
- working pressure −0.6 to 16 bar
- straight and angled expansion joints
- connects to SICOAIR and SICOALU2
SQ — push-in fittings 15 to 28 mm
One push and the joint is done. Nylon fittings for smaller lines and drops from the main, with aluminium or PA12 pipes.
- pipes 15, 18, 22 and 28 mm
- working pressure −0.8 to 12.5 bar
- released with a disassembly tool
Accessories and tools
Outlet boxes, clips and tools. Outlet boxes, pipe clips, cutters, deburring tools, hook spanners and drilling tools.
- outlet boxes with G1/2″ and G3/4″ threads
- pipe cutters from 15 to 160 mm
- branch drilling even under pressure
Not sure which system suits your workshop? Compare all our piping systems in one category.
All piping systemsSICOMAT systems side by side
| System, sizes, pressure and use | ||||
|---|---|---|---|---|
| System | Sizes | Working pressure | Material | Best for |
| SICOAIR | pipes 20–63 mm | −0.6 to 12 bar | aluminium EN AW-6060 T6, nylon fittings | workshops, car services, smaller production |
| SICOALU2 | profile with 25 and 16 mm channels | 12.5 bar | aluminium profile in 6 m lengths | workshops, services, laboratories, two media |
| SICO110 | 110 mm profile | −0.6 to 16 bar | aluminium | large installations |
| SQ | pipes 15–28 mm | −0.8 to 12.5 bar | PA6 nylon fittings, aluminium or PA12 pipes | smaller lines and drops from the main |
The working temperature of all systems is −20 to +70 °C. SICO110 can be combined with SICOAIR and SICOALU2.
How to choose and install the system
1. Choose the system
SQ is enough for a small workshop and drops, SICOAIR for a standard line. If you need two media, choose SICOALU2.
2. Choose the size
Choose the pipe size by flow and length of the line. Sizing tables are in the SICOAIR and SQ categories.
3. Prepare the pipes
Cut the pipes square with a cutter and deburr the edges. SICOALU2 profiles are joined with the self-tapping screws supplied with the fitting.
4. Join and pressurise
With SICOAIR push the pipe into the fitting and tighten the nut, with SQ just push it in. Branches can be added later.
Frequently asked questions
- What is the difference between SICOAIR and SQ?
- SICOAIR has 20 to 63 mm pipes and fittings with a union nut and a clamping ring. SQ is a push-in system for 15 to 28 mm pipes: push the pipe in and the joint is done.
- What are the two channels in the SICOALU2 profile for?
- One profile carries two media or air at two different pressures, for example nitrogen for tyre inflation or water for car washing next to compressed air.
- Can I add a branch without emptying the system?
- Yes. For SICOAIR and SICO110 there are drilling tools for use under pressure for 1/2″ and 1″ outlets, for SICOALU2 a special drilling jig. You add the branch without stopping work.
- Which pipe colour should I choose?
- SICOAIR pipes are powder-coated blue for compressed air and green for nitrogen. Green pipes come in 20 and 25 mm.
- Is the system certified?
- The SICOAIR system has passed TÜV tests and the manufacturer holds an ISO 9001:2015 quality management certificate.
Pipe sizing tables and order numbers are in the categories of the individual systems.
