TA compressed air piping
TA pipework is revolutionising the way pipes are connected. No more special tools, just an easy system to push the pipe into the coupling. This simple assembly allows you to work and install air distribution systems really efficiently and as quickly as possible. The connection is disassembled after releasing the clamping ring. TA piping is a great system that we recommend to everyone in the industrial and craft industry.
#ShowMore#
Pipework in sizes from 15 to 28 mm
The TA compressed air system is primarily designed for the creation of smaller sized pipelines or high flow backbone piping. Thanks to its dimensions of 15 - 18 - 22 - 28 mm, it can be used especially in maintenance workshops, laboratories, craftsmen's shops, car repair shops and tire shops and wherever compressed air needs to be quickly and easily distributed from the compressor to the appliance. The concept of extremely quick and easy connection with push-in fittings and the use of modern aluminium or polyamide pipes allows the pipework to be created in the shortest possible time and without special tools.
 |
 |
TrumpetsIn the TA system, there are 2 variants of aluminium and Grilamid PA12 pipes - the PA12 version can be supplied in rolls or hardened rods. Both variants are characterized by very easy preparation for application, no risk of corrosion, UV-resistance and long service life. Practical clips are available for attaching the pipes to the wall. |
 |

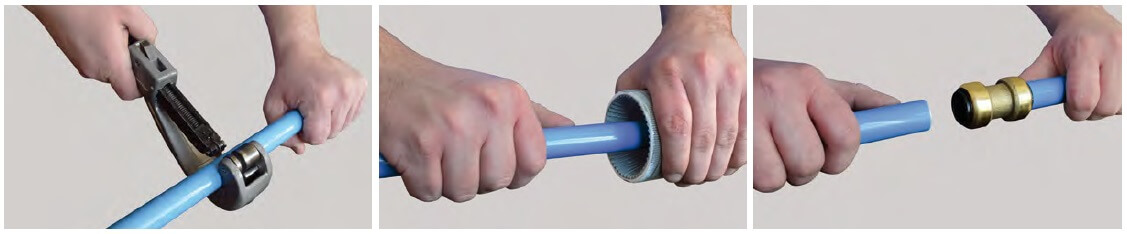

Plug connectorsTA couplings allow for the fastest possible connection, the pipe is simply tucked into the coupling and the connection is made. No special tools are required for assembly and thanks to the clutch ring, the clutch can be disassembled and reused at any time after pressing, making it easy to make modifications to the distribution system. |
|
 |

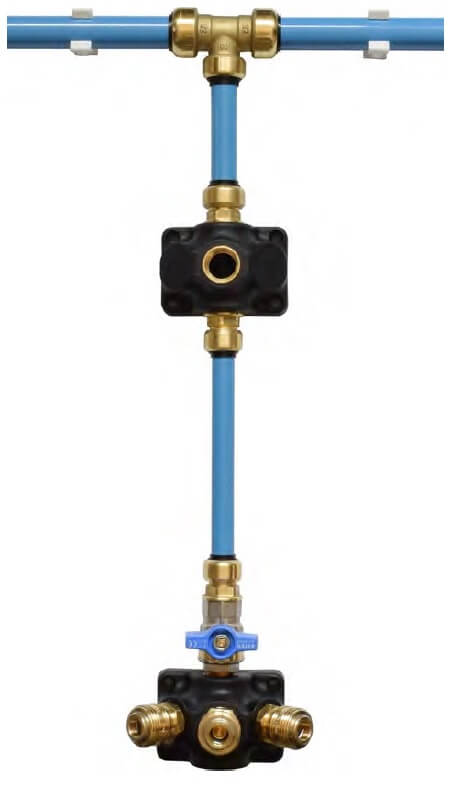

End boxesMany variants of end and through boxes with threads, pre-assembled couplings, taps or quick couplings are available for terminating or branching TA piping. The boxes are equipped with holes for attachment to walls or mounting structures. |
Pipe sizing - TA system - direct design |
|||||||||||||
| Length | Flow rate (l/min) | ||||||||||||
| 100 | 200 | 300 | 500 | 750 | 1 000 | 1 500 | 2 000 | 3 000 | 4 000 | 6 000 | 8 000 | 10 000 | |
| 10 meters | 15 | 15 | 15 | 15 | 18 | 22 | 22 | 28 | - | - | - | - | - |
| 25 m | 15 | 15 | 18 | 22 | 22 | 28 | 28 | - | - | - | - | - | - |
| 50 m | 15 | 15 | 22 | 22 | 28 | 28 | - | - | - | - | - | - | - |
| 75 m | 15 | 18 | 22 | 22 | 28 | 28 | - | - | - | - | - | - | - |
| 100 m | 15 | 18 | 22 | 28 | 28 | 28 | - | - | - | - | - | - | - |
| 150 m | 15 | 22 | 22 | 28 | 28 | - | - | - | - | - | - | - | - |
| 200 m | 18 | 22 | 22 | 28 | - | - | - | - | - | - | - | - | - |
| 250 m | 18 | 22 | 28 | - | - | - | - | - | - | - | - | - | - |
| 300 m | 18 | 22 | 28 | - | - | - | - | - | - | - | - | - | - |
| 400 m | 22 | 28 | 28 | - | - | - | - | - | - | - | - | - | - |
| 500 m | 22 | 28 | - | - | - | - | - | - | - | - | - | - | - |
Pipe sizing - TA system - circuit lines |
|||||||||||||
| Length | Flow rate (l/min) - for direct design | ||||||||||||
| 100 | 200 | 300 | 500 | 750 | 1 000 | 1 500 | 2 000 | 3 000 | 4 000 | 6 000 | 8 000 | 10 000 | |
| 10 meters | 15 | 15 | 15 | 18 | 22 | 22 | 28 | 28 | - | - | - | - | - |
| 25 m | 15 | 15 | 18 | 22 | 22 | 28 | 28 | - | - | - | - | - | - |
| 50 m | 15 | 15 | 18 | 22 | 22 | 28 | 28 | - | - | - | - | - | - |
| 75 m | 15 | 15 | 18 | 22 | 22 | 28 | 28 | - | - | - | - | - | - |
| 100 m | 15 | 15 | 22 | 22 | 22 | 28 | 28 | - | - | - | - | - | - |
| 150 m | 15 | 18 | 22 | 22 | 28 | 28 | - | - | - | - | - | - | - |
| 200 m | 15 | 18 | 22 | 28 | 28 | 28 | - | - | - | - | - | - | - |
| 250 m | 15 | 22 | 22 | 28 | 28 | - | - | - | - | - | - | - | - |
| 300 m | 15 | 22 | 22 | - | - | - | - | - | - | - | - | - | - |
| 400 m | 18 | 22 | 28 | - | - | - | - | - | - | - | - | - | - |
| 500 m | 18 | 22 | 28 | - | - | - | - | - | - | - | - | - | - |
