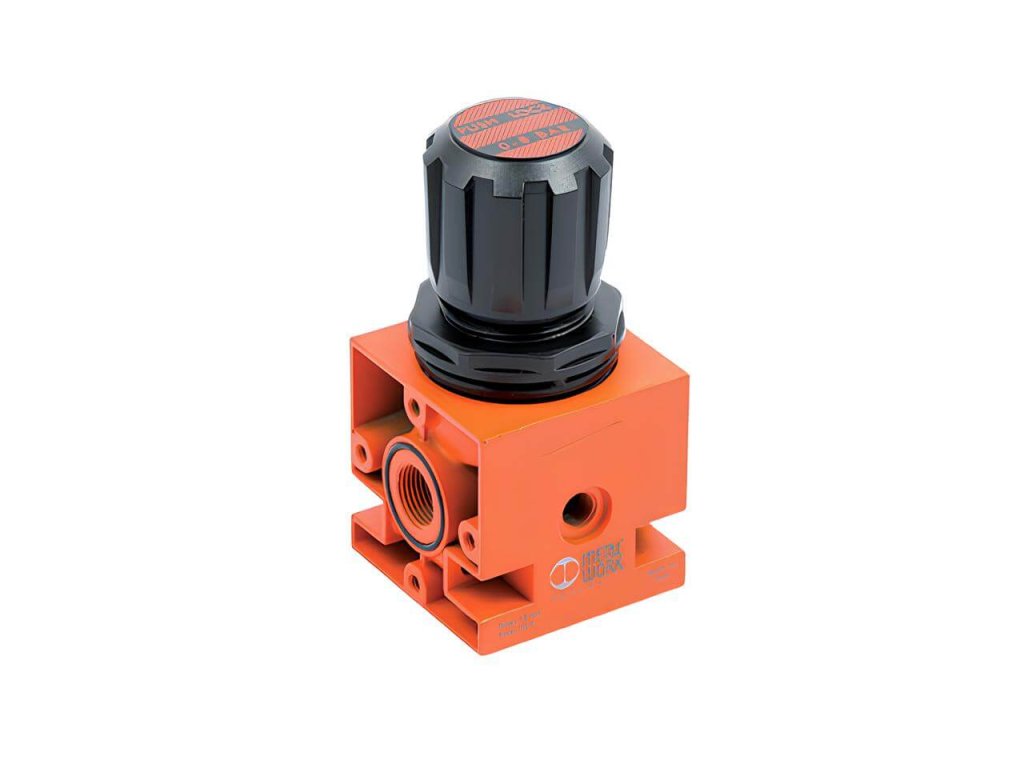

Metal pressure regulator DM10 up to 18 bar - G 1" G 1" · up to 18 bar · 4500 l/min · 184 × 80 mm
Code: DM10
Related products
Product detailed description
A metal pressure regulator with a G 1" thread and a flow of 4500 l/min. It reduces an inlet pressure of up to 18 bar to a value from 0 to 12 bar set with the knob and holds it even when the line pressure fluctuates. The 1" version has the same body as the 3/4" one.
Specifications
| DM10 — specifications | |
|---|---|
| Type | Pressure regulator |
| Connection | G 1" female thread |
| Body size | 3 (body width 80 mm) |
| Inlet pressure | up to 18 bar |
| Pressure setting range | 0 to 12 bar |
| Setting lock | knob lock |
| Flow | 4500 l/min |
| Height × width | 184 × 80 mm |
| Pressure gauge | not included, G 1/4" port |
| Material | zinc alloy |
| Working temperature | −10 to +50 °C |
| Medium | compressed air |
What it is for
It suits places where the air line pressure is higher than a tool or machine can take and where standard units rated for 10 bar are not enough. The G 1" thread is suitable for the main air line after the compressor or for large consumers.
The pressure gauge is not included; MZ04-15 fits. You can fix the regulator to a wall with the bracket UUK3. The same body with a G 3/4" thread is DM34.
Ventilek’s tip
Set it once on the main line. Set the large regulator after the compressor and leave it alone. Fine adjustment for individual points is done by smaller regulators at the consumers.
Additional parameters
| Category: | Robust metal air treatment units I8 up to 18 bar |
|---|---|
| Version: | Pressure regulator |
| Pressure: | 18 bar |
| Dimensions: | 184 × 80 mm |
| Medium: | Compressed air |
| Working temperature: | -10 / 50 °C |
| Flow: | 4,500 l/min |
| Regulatory range: | 0 - 12 bar |
| Thread: | G 1" |
| Thread for manometer: | 1/4" |
| In stock: | External warehouse |
